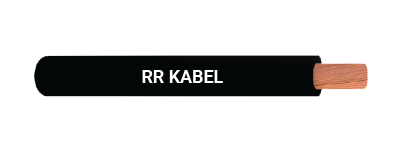

WELDEX-IS 9857
Application
The welding cable is specially designed for the transmission of high currents from the electric welding machine to the welding tool. It is suitable for flexible use under rugged conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, shipbuilding and for spot welding machines.
Technical Data
Voltage Rating : 450V a.c.r.m.s.
Test Voltage : 3000V
Temperature Range : -30°C to + 70°C
Minimum Bending Radius : 5 x cable diameter
Cable Construction
Super fine strands of annealed bare copper as per EN 60228, Cl. 6.
Elastomeric PVC insulation.
*Also available with TPE insulation 105°C
Properties
The heavy duty welding cable is resistant to flame, oil, abrasions, tar and grease.
Suitable for use in open air, in dry as well as damp interiors.
The high degree of flexibility does not form knots on the cable which could lead to internal break of conductors.
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘y’) for the insulation material required: 0 – TPE, 1 – Elastomeric PVC.
| Part Number | Nominal Cross-Sectional Area (Sq. mm) | Max. Strand Diameter (mm) | Max. DC Conductor Resistance (Ω/km) | Total Radial Thickness of Covering (mm) | Maximum Cable Diameter (mm) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|
| 1206y0100010 | 10 | 0.31 | 1.91 | 2.0 | 10.0 | 140 |
| 1206y0100016 | 16 | 0.31 | 1.21 | 2.0 | 11.5 | 200 |
| 1206y0100025 | 25 | 0.31 | 0.78 | 2.0 | 13.0 | 285 |
| 1206y0100035 | 35 | 0.31 | 0.554 | 2.0 | 14.5 | 375 |
| 1206y0100050 | 50 | 0.31 | 0.386 | 2.2 | 17.0 | 540 |
| 1206y0100070 | 70 | 0.31 | 0.272 | 2.4 | 19.0 | 740 |
| 1206y0100095 | 95 | 0.31 | 0.206 | 2.6 | 21.5 | 1000 |
| 1206y0100120 | 120 | 0.31 | 0.161 | 2.8 | 24.0 | 1230 |
| 1206y0100150 | 150 | 0.31 | 0.129 | 3.0 | 26.0 | 1500 |
