SiHF
Application

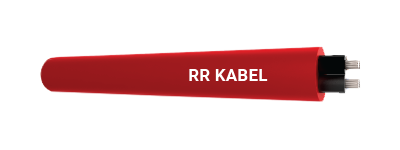

These are silicone multicore cables for use at the areas where extreme temperature changes. Silicone cables are halogen - free cables and are especially suited for installation in power stations. They have also found their use in the steel producing industries, aviation industry, ship building as well as in ceramic, glass and cement factories. Due to elastical characteristic of core insulation, these are used as flexible connection cable.
Standard
Adapted to DIN VDE 0250 part 1 and part 816.
Technical Data
Voltage Rating : UO / U - 300 / 500V
Test Voltage : 2000V
Temperature Range : -50°C to +180°C (up to + 220°C for short time)
Breakdown Voltage : Min. 5000V
Insulation Resistance : Min. 200 MΩ x km
Minimum Bending Radius : Flexing 20 x cable ø. Fixed installation 4 x cable ø
Cable Construction
Tinned copper conductor to Cl. 5, EN 60228.
Silicone core insulation.
Core identification to DIN VDE 0293 - 308 colour coded or black cores with continuous white numbers.
For 2 - cores brown, blue.
For 3 - cores and above cable provided without protective conductor.
For 6 - cores and above all black cores with number coding.
Cores stranded in layers with optimal lay - length.
Outer jacket of Silicone.
Jacket colour - red brown
Properties
Advantages : The dielectric strength hardly changes even at high temperatures.
The cable has high ignition or flash points.
In case of fire, it forms an insulating layer of SiO2
Resistant to : High molecular oils, fats from vegetables and animals, alcohols, plasticisers and clopenes, diluted acids, dyes and salt dissolution, oxidation substances, tropical influences and weather, lake water, oxygen and UV.
Halogen - Free : According to IEC 60754 - 2.
Behavior in Fire : Flame propagation test according to EN 60332 - 1 - 2.
For laying as a fixed installation only in open or ventilated pipe systems as well as in ducts. Otherwise the mechanical properties of Silicone are reduced by the enclosed air at temperatures exceeding 90°C.
Cable Design Parameters
Kindly complete the part numbers for SiF and SiFF by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 07 – white, 09 – brown, 10 – orange, 12 – grey.
|
Part Number |
No. of Cores and Nominal Cross Sectional Area (Sq. mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
|
080300201050 |
2 x 0.5 |
5.6 |
8.2 |
37.8 |
|
080300311050 |
3 x 0.5 |
5.9 |
12.2 |
45.1 |
|
080300411050 |
4 x 0.5 |
6.5 |
16.3 |
55.2 |
|
080300511050 |
5 x 0.5 |
7.1 |
20.4 |
66.6 |
|
080300611050 |
6 x 0.5 |
7.7 |
24.5 |
79.2 |
|
080300711050 |
7 x 0.5 |
7.9 |
28.5 |
85.8 |
|
080300811050 |
8 x 0.5 |
8.8 |
32.6 |
104.8 |
|
080301011050 |
10 x 0.5 |
10.2 |
40.8 |
137.1 |
|
080301211050 |
12 x 0.5 |
10.5 |
48.9 |
151.0 |
|
080301611050 |
16 x 0.5 |
11.7 |
65.2 |
189.8 |
|
080301811050 |
18 x 0.5 |
12.3 |
73.4 |
211.6 |
|
080302511050 |
25 x 0.5 |
14.7 |
101.9 |
299.9 |
|
080300201075 |
2 x 0.75 |
6.2 |
12.2 |
48.2 |
|
080300311075 |
3 x 0.75 |
6.8 |
18.3 |
60.7 |
|
080300411075 |
4 x0.75 |
7.4 |
24.5 |
74.3 |
|
080300511075 |
5 x 0.75 |
8.2 |
30.6 |
92.4 |
|
080300611075 |
6 x 0.75 |
9.1 |
36.7 |
112.6 |
|
080300711075 |
7 x 0.75 |
9.1 |
42.8 |
117.9 |
|
080300811075 |
8 x 0.75 |
10.2 |
48.9 |
143.8 |
|
080301011075 |
10 x 0.75 |
11.5 |
61.1 |
182.7 |
|
080301111075 |
12 x 0.75 |
11.9 |
73.4 |
202.2 |
|
080301611075 |
16 x 0.75 |
13.2 |
97.8 |
255.6 |
|
080301811075 |
18 x 0.75 |
13.9 |
110.0 |
285.6 |
|
080300200001 |
2 x 1 |
6.7 |
16.3 |
58.1 |
|
080300310001 |
3 x 1 |
7.1 |
24.5 |
70.4 |
|
080300410001 |
4 x 1 |
7.7 |
32.6 |
86.7 |
|
080300510001 |
5 x 1 |
8.6 |
40.8 |
107.9 |
|
080300610001 |
6 x 1 |
9.6 |
48.9 |
131.8 |
|
080300710001 |
7 x 1 |
9.6 |
57.1 |
138.9 |
|
080300810001 |
8 x 1 |
10.7 |
65.2 |
169.0 |
|
080301010001 |
10 x 1 |
12.1 |
81.5 |
215.0 |
|
080301210001 |
12 x 1 |
12.6 |
97.8 |
239.1 |
|
080301610001 |
16 x 1 |
14.0 |
130.4 |
303.6 |
|
080301810001 |
18 x 1 |
14.7 |
146.7 |
339.5 |
|
Part Number |
No. of Cores and Nominal Cross Sectional Area (Sq. mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
|
080300201105 |
2 x 1.5 |
8.2 |
23.9 |
86.5 |
|
080300311105 |
3 x 1.5 |
8.7 |
35.8 |
105.0 |
|
080300411105 |
4 x 1.5 |
9.7 |
47.8 |
133.5 |
|
080300511105 |
5 x 1.5 |
10.6 |
59.7 |
161.0 |
|
080300611105 |
6 x 1.5 |
11.5 |
71.6 |
191.9 |
|
080300711105 |
7 x 1.5 |
11.7 |
83.6 |
206.0 |
|
080300811105 |
8 x 1.5 |
13.0 |
95.5 |
247.9 |
|
080301011105 |
10 x 1.5 |
14.8 |
119.4 |
317.6 |
|
080301211105 |
12 x 1.5 |
15.3 |
143.3 |
353.7 |
|
080301411105 |
14 x 1.5 |
16.1 |
167.1 |
399.5 |
|
080300201205 |
2 x 2.5 |
9.3 |
39.8 |
119.1 |
|
080300311205 |
3 x 2.5 |
9.9 |
59.7 |
147.6 |
|
080300411205 |
4 x 2.5 |
10.9 |
79.6 |
184.6 |
|
080300511205 |
5 x 2.5 |
11.9 |
99.5 |
225.3 |
|
080300611205 |
6 x 2.5 |
13.6 |
119.4 |
283.8 |
|
080300711205 |
7 x 2.5 |
13.6 |
139.3 |
301.0 |
|
080300811205 |
8 x 2.5 |
15.4 |
159.2 |
368.8 |
|
080300200004 |
2 x 4 |
10.6 |
63.3 |
164.8 |
|
080300310004 |
3 x 4 |
12.0 |
94.9 |
223.4 |
|
080300410004 |
4 x 4 |
13.4 |
126.6 |
284.5 |
|
080300510004 |
5 x 4 |
14.6 |
158.2 |
346.0 |
|
08030020000 |
2 x 6 |
12.4 |
94.9 |
232.7 |
|
6080300310006 |
3 x 6 |
13.2 |
142.4 |
293.7 |
|
080300410006 |
4 x 6 |
14.7 |
189.8 |
375.7 |
