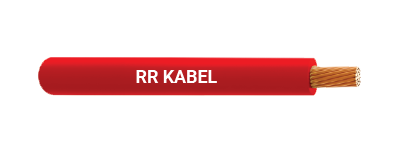

FLUY
Application
These are ultra thin wall auto cables ideal for use in automotives.
Standard
In accordance to ISO 6722-1
Temperature Range (3000 Hrs)
-40°C to +105°C
Cable Construction
Soft annealed electrolytic copper Cu-ETP1 according to DIN EN 13602, bare or tinned. Soft PVC insulation cold-resistant according to ISO 6722-1, Class B
Packing
Packing available in 100 mtrs. Longer length available in spools.
Cable Design Parameters
|
Nom. Cross-Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Max. Conductor Diameter (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) |
Min. Insulation Thickness (mm) |
Overall Diameter |
Approx. Weight (Kg/Km) |
|
|
Max. |
Tolerance |
|||||||
|
0.35 |
7 |
0.27 |
0.8 |
52 |
0.16 |
1.2 |
-0.1 |
4.0 |
|
0.5 |
19 |
0.19 |
1 |
37.1 |
0.16 |
1.4 |
-0.1 |
6.0 |
|
0.75 |
19 |
0.24 |
1.2 |
24.7 |
0.16 |
1.6 |
-0.15 |
8.0 |
|
1.0 |
19 |
0.27 |
1.4 |
18.5 |
0.16 |
1.75 |
-0.15 |
10.0 |
|
1.25 |
19 |
0.30 |
1.5 |
14.9 |
0.16 |
2.0 |
-0.2 |
13.0 |
|
1.5 |
19 |
0.33 |
1.7 |
12.7 |
0.16 |
2.1 |
-0.2 |
15.0 |
|
2.0 |
19 |
0.37 |
1.9 |
9.42 |
0.20 |
2.4 |
-0.2 |
20.0 |
|
2.5 |
37 |
0.30 |
2.2 |
7.6 |
0.20 |
2.7 |
-0.2 |
25.0 |
