POWER CABLE-BS 5467

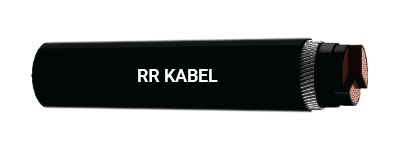

thumbnail

Application

Industrial wiring and mains distribution. Can be laid direct in the ground, or in ducts, clipped to surface, on trays or in free air. May be embedded in concrete.

Standard

BS 5467

Technical Data

Voltage Rating : 600/1000V

Minimum Bending Radius : 15 x Cable diameter

Maximum Conductor Temperature : 90°C

Cable Construction

Single, two, three, four and five core cables. Stranded plain copper conductors, XLPE insulated, cores laid up, extruded PVC bedding,

galvanised steel wire armoured (Aluminium wires for single cores) and PVC sheathed.

Core colours :

Single core : Brown or blue.

Two core : Brown, blue.

Three core : Brown, black, grey.

Four core : Brown, black, grey, blue.

Five code : Brown, black, grey, green/yellow, blue.

Sheath Colour : Black (Other colour as per customer requirement)

Note : Where a conductor operates at a temperature exceeding 70°C it shall be ascertained that the equipment connected to the conductor is suitable for the conductor operating temperature (see regulation 512-1-2 of BS 7671, the 17th Edition of IEE Wiring Regulations). Cables with reduced Flame Propagation and designs with alternative core identification are available to order. Cables up to 1 x 300 Sq. mm, 2...4 x 400 Sq. mm BASEC Certified.

Cable Design Parameters

Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the type required: 01 – J – Type, 02 – O – Type.

  PartNumber Nominal Cross Sectional Area(Sq. mm) Insulation Thickness(mm) Armour Wire Diameter(mm) Approx. Dia. under Armour(mm) Approx Overall Diameter(mm) Approx Cable Weight(kg/km) Maximum Resistance of Cable Reactance at 50 Hz(Ω/km) Impedance AC at90°C(Ω/km) Star Capacitance(μF/km) MaximumArmourResistance(Ω/km)
DC at 20°C(Ω/km) AC at 90°C(Ω/km)
Single Core Aluminium Wire Armour 112600100050 50 1.0 0.9 12.7 17.5 800 0.387 0.4938 0.104 0.505 0.41 1.3
112600100070 70 1.1 1.25 14.7 20.2 960 0.268 0.341 0.101 0.356 0.46 0.75
112600100095 95 1.1 1.25 16.6 22.3 1240 0.193 0.2469 0.097 0.265 0.53 0.67
112600100120 120 1.2 1.25 18.5 24.2 1510 0.153 0.1962 0.094 0.217 0.56 0.61
112600100150 150 1.4 1.6 20.8 27.4 1900 0.124 0.1594 0.095 0.186 0.52 0.42
112600100185 185 1.6 1.6 23.2 30.0 2320 0.0991 0.128 0.093 0.158 0.54 0.38
112600100240 240 1.7 1.6 26.0 32.8 2930 0.0754 0.0985 0.09 0.134 0.59 0.34
112600100300 300 1.8 1.6 28.6 35.6 3580 0.0601 0.0797 0.088 0.119 0.63 0.31
112600100400 400 2.0 2 32.4 40.4 4600 0.047 0.0635 0.089 0.109 0.62 0.22
112600100500 500 2.2 2 36.0 44.2 5770 0.0366 0.0513 0.087 0.101 0.66 0.2
112600100630 630 2.4 2 40.4 48.8 7250 0.0283 0.0419 0.085 0.095 0.7 0.18
112600100800 800 2.6 2.5 45.6 55.4 9381 0.0221 0.0349 0.087 0.094 0.85 0.13
112600101000 1000 2.8 2.5 50.6 60.6 11540 0.0176 0.0303 0.085 0.09 0.87 0.12
Two Core Steel Wire Armour 112600201105 1.5 0.6 0.9 7.3 12.1 302 12.1 15.428 0.104 15.428 0.23 10.2
112600201205 2.5 0.7 0.9 8.5 13.6 346 7.41 9.448 0.101 9.449 0.25 8.8
112600200004 4 0.7 0.9 9.4 14.7 410 4.61 5.878 0.099 5.879 0.27 7.9
112600200006 6 0.7 0.9 10.5 15.9 499 3.08 3.927 0.094 3.928 0.3 7
112600200010 10 0.7 0.9 12.3 18.0 648 1.83 2.333 0.093 2.335 0.32 6
112600200016 16 0.7 1.25 14.3 20.4 978 1.15 1.466 0.088 1.469 0.35 3.7
112600200025 25 0.9 1.25 14.7 20.4 1290 0.727 0.926 0.082 0.93 0.38 3.7
112600200035 35 0.9 1.6 16.8 23.3 1500 0.524 0.6685 0.077 0.673 0.42 2.6
112600200050 50 1.0 1.6 19.0 25.8 1890 0.387 0.494 0.076 0.5 0.45 2.3
112600200070 70 1.1 1.6 22.0 29.0 2450 0.268 0.3412 0.075 0.349 0.49 2
112600200095 95 1.1 2 25.1 33.1 3300 0.193 0.2471 0.074 0.258 0.55 1.4
112600200120 120 1.2 2 27.9 36.1 4020 0.153 0.1964 0.072 0.209 0.57 1.3
112600200150 150 1.4 2 30.9 39.3 4750 0.124 0.1597 0.073 0.176 0.57 1,20
112600200185 185 1.6 2.5 34.9 44.7 6180 0.0991 0.1284 0.073 0.148 0.55 0.82
112600200240 240 1.7 2.5 39.0 49.0 7570 0.0754 0.0989 0.072 0.122 0.6 0.73
112600200300 300 1.8 2.5 43.3 53.5 9180 0.0601 0.0801 0.072 0.107 0.62 0.67
112600200400 400 2.0 2.5 48.4 59.0 10500 0.047 0.0641 0.071 0.096 0.64 0.59
Three Core Steel Wire Armour 112600301105 1.5 0.6 0.9 7.8 12.6 330 12.1 15.428 0.104 15.428 0.23 9.5
112600301205 2.5 0.7 0.9 9.2 14.1 390 7.41 9.448 0.101 9.449 0.25 8.2
112600300004 4 0.7 0.9 10.0 15.3 464 4.61 5.878 0.099 5.879 0.27 7.5
112600300006 6 0.7 0.9 11.2 16.6 568 3.08 3.927 0.094 3.928 0.3 6.7
112600300010 10 0.7 1.25 13.1 19.5 866 1.83 2.333 0.093 2.335 0.32 4
112600300016 16 0.7 1.25 15.3 21.6 1152 1.15 1.466 0.088 1.469 0.35 3.5
112600300025 25 0.9 1.6 18.9 25.5 1800 0.727 0.926 0.082 0.93 0.37 2.5
112600300035 35 0.9 1.6 21.3 28.0 2230 0.524 0.6685 0.077 0.673 0.42 2.3
112600300050 50 1.0 1.6 21.7 28.5 2490 0.3870 0.494 0.076 0.5 0.45 2
112600300070 70 1.1 1.6 25.2 32.2 3290 0.268 0.3412 0.075 0.349 0.49 1.8
112600300095 95 1.1 2 28.8 37.0 4440 0.193 0.2471 0.074 0.258 0.55 1.3
112600300120 120 1.2 2 32.0 40.4 5470 0.153 0.1964 0.072 0.209 0.57 1.2
112600300150 150 1.4 2.5 35.9 45.5 6930 0.124 0.1597 0.073 0.176 0.55 0.78
112600300185 185 1.6 2.5 40.0 49.8 8350 0.0991 0.1284 0.073 0.148 0.55 0.71
112600300240 240 1.7 2.5 44.9 55.1 10400 0.0754 0.0989 0.072 0.122 0.6 0.63
112600300300 300 1.8 2.5 49.8 60.2 12600 0.0601 0.0801 0.072 0.107 0.62 0.58
112600300400 400 2.0 2.5 55.8 66.6 14600 0.047 0.0641 0.071 0.096 0.64 0.52
Four Core Steel Wire Armour 112600401105 1.5 0.6 0.9 8.5 13.5 365 12.1 15.428 0.104 15.428 0.23 8.8
112600401205 2.5 0.7 0.9 9.9 15.0 438 7.41 9.448 0.101 9.449 0.25 7.7
112600400004 4 0.7 0.9 11.0 16.4 532 4.61 5.878 0.099 5.879 0.27 6.8
112600400006 6 0.7 1.25 12.3 18.7 764 3.08 3.927 0.094 3.928 0.3 4.3
112600400010 10 0.7 1.25 14.5 21.1 1013 1.83 2.333 0.093 2.336 0.32 3.7
112600400016 16 0.7 1.25 17.0 22.9 1360 1.15 1.466 0.088 1.469 0.35 3.1
Five Core Steel Wire Armour 112600400025 25 0.9 1.6 21.0 27.6 2160 0.727 0.926 0.082 0.93 0.37 2.3
112600400035 35 0.9 1.6 23.6 30.4 2690 0.524 0.6685 0.077 0.673 0.42 2.0
112600400050 50 1.0 1.6 25.0 32.0 3130 0.387 0.494 0.076 0.5 0.45 1.8
112600400070 70 1.1 2 29.5 37.7 4500 0.268 0.3412 0.075 0.349 0.48 1.2
112600400095 95 1.1 2 33.3 41.7 5600 0.193 0.2471 0.074 0.258 0.55 1.1
112600400120 120 1.2 2.5 37.5 47.1 7400 0.153 0.1964 0.072 0.209 0.55 0.76
112600400150 150 1.4 2.5 41.6 51.4 8780 0.124 0.1597 0.073 0.176 0.55 0.68
112600400185 185 1.6 2.5 46.4 56.6 10630 0.0991 0.1284 0.073 0.148 0.55 0.61
112600400240 240 1.7 2.5 52.6 63.0 13390 0.0754 0.0989 0.072 0.122 0.58 0.54
112600400300 300 1.8 2.5 58.0 68.8 16290 0.0601 0.0801 0.072 0.107 0.62 0.49
112600400400 400 2.0 3.15 65.4 78.1 19800 0.047 0.0641 0.071 0.096 0.63 0.35
112600501105 1.5 0.6 0.9 9.7 14.3 410 12.1 15.428 0.104 15.428 0.23 8.2
112600501205 2.5 0.7 0.9 11.7 16.3 470 7.41 9.448 0.101 9.449 0.25 6.8
112600500004 4 0.7 0.9 13.0 17.8 710 4.61 5.878 0.099 5.879 0.27 6.2
112600500006 6 0.7 1.25 14.5 20.0 876 3.08 3.927 0.094 3.928 0.3 3.9
112600500010 10 0.7 1.25 17.2 22.9 1165 1.83 2.333 0.093 2.336 0.32 3.4
112600500016 16 0.7 1.6 20.0 26.6 1742 1.15 1.466 0.088 1.469 0.35 2.2
112600500025 25 0.9 1.6 24.7 31.5 2323 0.727 0.926 0.082 0.93 0.37 1.8
112600500035 35 0.9 1.6 27.8 34.8 2932 0.524 0.6685 0.077 0.673 0.42 1.6
112600500050 50 1.0 2 32.4 40.4 4192 0.387 0.494 0.076 0.5 0.45 1.1
112600500070 70 1.1 2 37.9 46.3 5336 0.268 0.3412 0.075 0.349 0.48 0.9
