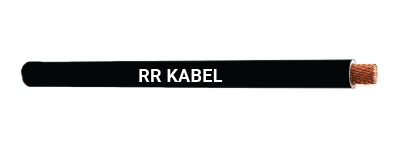

H05Z-K & H07Z-K
Application
Halogen-free single-core wires are used for installation in dry environments for wiring up lighting fixtures and units where valuable assets.
are to be protected from further damage resulting from fire. These cables may be installed on, in and beneath plaster, as well as in closed
installation ducts. The direct operating voltages is permitted up to 900 V against ground when they are used in rail-coaches. For the inner
wiring of switch boards and distributors these are to be used with an alternating nominal voltage up to 1000V or a direct voltage up to 750V
against ground.
Standard
BS EN 50525-3-41.
Technical Data
Nominal Voltage : H05Z-K U / U 300 / 500V, H07Z-K U / U 450 / 750V O O
Harmonised Designation : -30°C to +90°C
Temperature Range : -15°C to +90°C
Test Voltage : 2500V
Minimum Bending Radius :
Cable diameter ≤ 8 mm : 4 x outer diameter
Approx. diameter > 8 to 12 mm : 5 x outer diameter
Approx. diameter > 12 mm : 6 x outer diameter
Cable Construction
Conductor Class 5 flexible plain/metal coated stranded according to EN 60228.
Insulation Polyolefin cross linked EI5 to EN 50363-5.
Tests
Smoke density to acc. to EN 61034-2.
Halogen free acc. to EN 50525-1, EN 60754-1
Corrosivity acc. to EN 60754-2
Ozone resistant according to EN 60811-2-1.
Self-extinguishing and flame retardant according to EN 60332-1-2.
LSOH = Low Smoke Zero Halogen-Free.
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey.
By adding the suffix (in place of ‘c’) for the conductor type required : 0 = Annealed Bare Copper (ABC), 1 = Annealed Tinned Copper (ATC).
| Part Number | Nominal Cross Sectional Area (Sq. mm) | Nominal Thickness of Insulation (mm) | Mean Overall Diameter | Approx. Cable Weight (kg/km) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lower Limit (mm) | Upper Limit (mm) | |||||||||||
| H05Z-K | 02040101xx6c | 0.5 | 0.6 | 1.9 | 2.4 | 9 | ||||||
| 02040102xx6c | 0.75 | 0.6 | 2.1 | 2.6 | 12 | |||||||
| 02040103xx6c | 1 | 0.6 | 2.1 | 2.8 | 15 | |||||||
| H07Z-K | 02040104xx6c | 1.5 | 0.7 | 2.8 | 3.5 | 21 | ||||||
| 02040105xx6c | 2.5 | 0.8 | 3.4 | 4.3 | 33 | |||||||
| 02040106xx6c | 4 | 0.8 | 3.9 | 4.9 | 47 | |||||||
| 02040107xx6c | 6 | 0.8 | 4.4 | 5.5 | 66 | |||||||
| 02040108xx6c | 10 | 1.0 | 5.7 | 7.1 | 112 | |||||||
| 02040109xx6c | 16 | 1.0 | 6.7 | 8.4 | 169 | |||||||
| 02040110xx6c | 25 | 1.2 | 8.4 | 10.6 | 260 | |||||||
| 02040111xx6c | 35 | 1.2 | 9.7 | 12.1 | 358 | |||||||
| 02040112xx6c | 50 | 1.4 | 11.5 | 14.4 | 509 | |||||||
| 02040113xx6c | 70 | 1.4 | 13.2 | 16.61 | 701 | |||||||
| 02040114xx6c | 95 | 1.6 | 15.1 | 18.8 | 925 | |||||||
| 02040115xx6c | 120 | 1.6 | 16.7 | 20.9 | 1168 | |||||||
| 02040116xx6c | 150 | 1.8 | 18.6 | 23.3 | 1456 | |||||||
| 02040117xx6c | 185 | 2.0 | 20.6 | 25.8 | 1773 | |||||||
| 02040118xx6c | 240 | 2.2 | 23.5 | 29.4 | 2329 | |||||||
