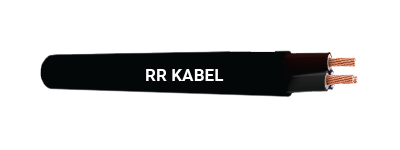

UL 2587
Application
Used in machine tools, control systems, connection between control panels and machines, assembly lines and other industrial equipment and moderate flexing applications.
Standard
UL - Std. 758; Control cable of special - PVC to UL AWM; Style 2587 cores according to UL 1015
Technical Data
Nominal Voltage : 600V
Test Voltage : 3000V
Temperature Range : Flexing -5°C to +90°C. Fixed installation -20°C to + 90°C
Insulation Resistance : Min 20 MΩ x km
Minimum Bending Radius : For permanent approx, 7.5 x cable ø
Cable Construction
Bare copper, fine wire conductors 0.5 - 35 Sq. mm (as per AWG - cross sections).
Special PVC core insulation class 43 to UL Standard 1581; color codes as per H05VV - F upto 5 cores. Black conductors with consecutive numbering in white for above 5 cores.
Green - yellow earth core in the outer layer (3 cores and above).
Cores stranded in layers with optimal lay - length.
Special PVC outer sheath class 43 to UL Standard 1581 colour grey (RAL 7001).
PVC self - extinguishing and flame retardant, test method VW - 1, FT 1.
Properties
Suitable for installation in dry, moist or wet environment.
Resistant to mineral oils, synthetic oils and water based coolants. Aids easy stripping of sheath due to use of adequate Talc.
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘z’) for the sheath colour required: 1 – black (RAL 9005), 3 – grey (RAL 7001).
| Part Number | AWG No. | No. of Cores & Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx Cable Weight (kg/km) |
|---|---|---|---|---|---|
| 06060101000z | 2 | 21 | 6.4 | 7.9 | 53.0 |
| 06060102000z | 3 | 21 | 7.1 | 11.9 | 68.5 |
| 06060103000z | 4 | 21 | 8.5 | 15.8 | 96.9 |
| 06060104000z | 6 | 21 | 11.0 | 23.7 | 157.9 |
| 06060105000z | 10 | 21 | 11.7 | 39.5 | 190.7 |
| 06060106000z | 12 | 21 | 12.1 | 47.4 | 208.4 |
| 06060107000z | 16 | 21 | 13.5 | 63.2 | 262.2 |
| 06060108000z | 18 | 21 | 15.3 | 71.1 | 327.8 |
| 06060109000z | 24 | 21 | 17.8 | 94.8 | 444.5 |
| 06060110000z | 2 | 19 | 6.8 | 11.9 | 62.4 |
| 06060111000z | 3 | 19 | 7.1 | 17.8 | 73.5 |
| 06060112000z | 4 | 19 | 8.2 | 23.7 | 96.5 |
| 06060113000z | 6 | 19 | 9.8 | 35.6 | 139.3 |
| 06060114000z | 10 | 19 | 12.5 | 59.3 | 229.5 |
| 06060115000z | 12 | 19 | 13.0 | 71.1 | 252.2 |
| 06060116000z | 16 | 19 | 15.5 | 94.8 | 353.8 |
| 06060117000z | 18 | 19 | 16.3 | 106.7 | 393.8 |
| 06060118000z | 24 | 19 | 19.0 | 142.3 | 535.0 |
| 06060119000z | 2 | 18 | 7.1 | 15.8 | 70.4 |
| 06060120000z | 3 | 18 | 7.5 | 23.7 | 83.8 |
| 06060121000z | 4 | 18 | 8.5 | 31.6 | 110.1 |
| 06060122000z | 6 | 18 | 10.2 | 47.4 | 159.5 |
| 06060123000z | 10 | 18 | 13.1 | 79.0 | 263.7 |
| 06060124000z | 12 | 18 | 13.6 | 94.8 | 291.1 |
| 06060125000z | 16 | 18 | 16.2 | 126.5 | 405.8 |
| 06060126000z | 18 | 18 | 17.0 | 142.3 | 452.2 |
| 06060127000z | 24 | 18 | 19.9 | 189.7 | 615.0 |
| 06060128000z | 2 | 16 | 7.6 | 23.4 | 85.2 |
| 06060129000z | 3 | 16 | 8.3 | 35.1 | 107.7 |
| 06060130000z | 4 | 16 | 9.1 | 46.8 | 135.1 |
| 06060131000z | 6 | 16 | 11.0 | 70.2 | 196.8 |
| 06060132000z | 10 | 16 | 14.1 | 117 | 326.7 |
| 06060133000z | 12 | 16 | 15.6 | 140.4 | 398.3 |
| 06060134000z | 16 | 16 | 17.3 | 187.2 | 501.9 |
| 06060135000z | 18 | 16 | 18.3 | 210.6 | 560.2 |
| 06060136000z | 24 | 16 | 21.4 | 280.8 | 762.5 |
| 06060137000z | 2 | 14 | 8.7 | 39 | 119.9 |
| 06060138000z | 3 | 14 | 9.2 | 58.5 | 146.6 |
| 06060139000z | 4 | 14 | 10.2 | 78 | 185.4 |
| 06060140000z | 5 | 14 | 12.3 | 97.5 | 255.8 |
| 06060141000z | 2 | 12 | 9.8 | 62 | 162.6 |
| 06060142000z | 3 | 12 | 10.4 | 93 | 202.0 |
| 06060143000z | 4 | 12 | 11.6 | 124 | 257.3 |
| 06060144000z | 5 | 12 | 14 | 155 | 353.7 |
| 06060145000z | 2 | 10 | 10.9 | 93 | 214.7 |
| 06060146000z | 3 | 10 | 11.6 | 139.5 | 270.6 |
| 06060147000z | 4 | 10 | 12.9 | 186 | 346.5 |
| 06060148000z | 2 | 8 | 5.3 | 158.4 | 402.6 |
| 06060149000z | 3 | 8 | 6.2 | 237.6 | 501.4 |
| 06060150000z | 4 | 8 | 18.0 | 316.8 | 638.1 |
| 06060151000z | 2 | 6 | 9.4 | 263.8 | 654.5 |
| 06060152000z | 3 | 6 | 1.1 | 395.7 | 843.3 |
| 06060153000z | 4 | 6 | 3.5 | 527.6 | 1074.8 |
| 06060154000z | 2 | 4 | 2.2 | 410.4 | 911.1 |
| 06060155000z | 3 | 4 | 3.6 | 615.6 | 1153.6 |
| 06060156000z | 4 | 4 | 6.3 | 820.7 | 1479.2 |
| 06060157000z | 2 | 2 | 4.7 | 596.7 | 1201.9 |
| 06060158000z | 3 | 2 | 6.3 | 895.1 | 1540.7 |
| 06060159000z | 4 | 2 | 0.3 | 1193.4 | 2053.9 |
