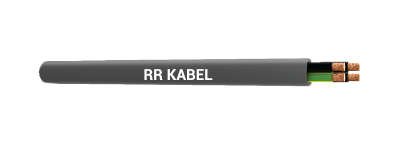

JZ-H
Application
Halogen-free cables for airports railway station, plant engineering and Industrial machinery, in EMC sensitive instruments
Standard
Adapted to EN 50525-3-11.
Technical Data
Nominal Voltage : UO / U 300 / 500V
Temperature Range : Flexing -15°C to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius : Flexing approx. 10 x cable ø. Fixed installation approx. 4 x cable ø
Test Voltage : 4000V
Cable Construction
Bare copper, fine wire conductors, to EN 60228 Cl. 5.
Core insulation of halogen-free compound TI6 to EN 50363-7.
Black colour with white numbers DIN VDE 0293.
Green/Yellow earth core in outer layer.
Cores stranded in layers with optimal lay-length.
Halogen-free sheath compound TM7, to EN 50363-8.
Sheath colour grey (RAL 7001).
Properties
Flame retardant to IEC 60332-1-2.
No flame propagation according to IEC 60332-3-24 (flame spread on Vertical cable or wire bundle).
Halogen free according to IEC 60754-1.
Corrosive gas evolution to IEC 60754-2.
Cable Design Parameters
| Part Number | No. of Cores and Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) |
|---|---|---|---|---|
| 031800201050 | 2 x 0.5 | 4.8 | 9.5 | 35 |
| 031800311050 | 3G 0.5 | 5.1 | 14.0 | 42 |
| 031800301050 | 3 x 0.5 | 5.1 | 14.2 | 43 |
| 031800411050 | 4G 0.5 | 5.5 | 19.0 | 52 |
| 031800401050 | 4 x 0.5 | 5.5 | 19.0 | 52 |
| 031800511050 | 5G 0.5 | 6.0 | 24.0 | 62 |
| 031800711050 | 7G 0.5 | 6.6 | 33.5 | 81 |
| 031801211050 | 12G 0.5 | 8.7 | 57.0 | 141 |
| 031800201075 | 2 x 0.75 | 5.3 | 14.5 | 45 |
| 031800311075 | 3G 0.75 | 5.6 | 21.5 | 55 |
| 031800301075 | 3 x 0.75 | 5.6 | 21.5 | 55 |
| 031800411075 | 4G 0.75 | 6.2 | 28.5 | 67 |
| 031800401075 | 4 x 0.75 | 6.2 | 28.5 | 67 |
| 031800511075 | 5G 0.75 | 6.8 | 36.0 | 86 |
| 031800501075 | 5 x 0.75 | 6.8 | 36.0 | 86 |
| 031800711075 | 7G 0.75 | 7.4 | 50.0 | 109 |
| 031800701075 | 7 x 0.75 | 7.4 | 50.0 | 109 |
| 031800911075 | 9G 0.75 | 9.0 | 64.0 | 165 |
| 031801211075 | 12G 0.75 | 9.8 | 85.5 | 192 |
| 031801811075 | 18G 0.75 | 11.5 | 128.0 | 275 |
| 031802511075 | 25G 0.75 | 12.6 | 178.0 | 400 |
| 031800200001 | 2 x 1 | 5.6 | 19.0 | 53 |
| 031800310001 | 3G 1 | 6.0 | 28.5 | 66 |
| 031800300001 | 3 x 1 | 6.0 | 28.5 | 66 |
| 031800410001 | 4G 1 | 6.6 | 38.0 | 87 |
| 031800400001 | 4 x 1 | 6.6 | 38.0 | 87 |
| 031800510001 | 5G 1 | 7.2 | 47.5 | 105 |
| 031800710001 | 7G 1 | 7.9 | 66.5 | 149 |
| 031800810001 | 8G 1 | 8.9 | 76.0 | 175 |
| 031801210001 | 12G 1 | 10.4 | 114.0 | 241 |
| 031801410001 | 14G 1 | 11.0 | 133.0 | 274 |
| 031801810001 | 18G 1 | 12.3 | 171.0 | 349 |
| 031802510001 | 25G 1 | 13.5 | 237.5 | 508 |
| 031804110001 | 41G 1 | 18.2 | 389.0 | 782 |
| 031800201105 | 2 x 1.5 | 6.3 | 25.5 | 67 |
| 031800311105 | 3G 1.5 | 6.7 | 38.2 | 84 |
| 031800301105 | 3 x 1.5 | 6.7 | 38.2 | 84 |
| 031800411105 | 4G 1.5 | 7.3 | 50.9 | 105 |
| 031800511105 | 5G 1.5 | 8.0 | 63.7 | 132 |
| 031800711105 | 7G 1.5 | 8.8 | 89.1 | 169 |
| 031800811105 | 8G 1.5 | 9.9 | 101.9 | 216 |
| 031800911105 | 9G 1.5 | 10.8 | 114.6 | 250 |
| 031801211105 | 12G 1.5 | 11.7 | 152.8 | 299 |
| 031801411105 | 14G 1.5 | 12.4 | 178.3 | 344 |
| 031801811105 | 18G 1.5 | 13.9 | 229.2 | 437 |
| 031802511105 | 25G 1.5 | 15.3 | 318.3 | 612 |
| 031803411105 | 34G 1.5 | 18.9 | 432.9 | 820 |
| 031800201205 | 2 x 2.5 | 7.5 | 40.1 | 103 |
| 031800311205 | 3G 2.5 | 8.0 | 61.0 | 134 |
| 031800411205 | 4G 2.5 | 8.9 | 82.0 | 168 |
| 031800511205 | 5G 2.5 | 9.8 | 102.0 | 210 |
| 031800711205 | 7G 2.5 | 10.7 | 142.0 | 271 |
| 031801211205 | 12G 2.5 | 14.4 | 248.0 | 469 |
| 031800410004 | 4G 4 | 10.1 | 128.0 | 250 |
| 031800510004 | 5G 4 | 11.2 | 159.5 | 312 |
| 031800710004 | 7G 4 | 12.3 | 223.5 | 405 |
| 031800410006 | 4G 6 | 12.2 | 191.5 | 367 |
| 031800510006 | 5G 6 | 13.5 | 239.5 | 458 |
| 031800710006 | 7G 6 | 14.8 | 335.0 | 596 |
| 031800410010 | 4G 10 | 14.5 | 326.0 | 570 |
| 031800510010 | 5G 10 | 16.0 | 407.5 | 703 |
| 031800410016 | 4G 16 | 17.8 | 543.0 | 896 |
| 031800510016 | 5G 16 | 19.7 | 678.5 | 1119 |
| 031800410025 | 4G 25 | 21.9 | 844.5 | 1391 |
| 031800510025 | 5G 25 | 25.8 | 1055.5 | 1717 |
| 031800410035 | 4G 35 | 26.4 | 1189.0 | 1872 |
Note : G = With green / yellow earth core
X = Without green / yellow earth core
For current ratings to DIN VDE 0298-4 refer table no. 12-3 of Appendix.
