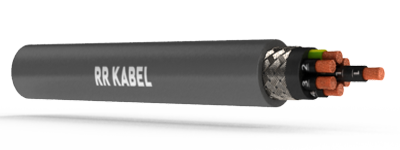

JZ-35400 CP
Application
These cables are used as data and control cable in machinery. The high level of screening ensures a high degree of interference protection.
The PVC-inner sheaths of these cables raise the mechanical strength. Such cables can also be used for outdoor applications for the permitted temperature range.
Standard
Adapted to EN 50525-2-51
Technical Data
Nominal Voltage : UO / U 300 / 500 V
Insulation Resistance : Min. 20 GΩ x cm
Temperature Range : Flexing -5°C to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius : Flexing 20 x cable ø. Fixed installation 6 x cable ø
Test Voltage : Core / core : 4000V, Core / screen : 2000V
Cable Construction
Bare copper, fine wire conductors according to EN 60228 cl. 5.
Core insulation of PVC TI2, EN 50363-3.
Black core with continuous white numbering to DIN VDE 0293.
Green/yellow earth core in outer layer (3 cores and above).
Cores stranded in layers with optimal lay-length.
Special PVC inner jacket.
Tinned copper braided screen.
Special polyurethane outer sheath (PUR).
Sheath colour : Grey (RAL 7001).
Properties
Extensively oil resistant.
Abrasion and notch resistant.
Low adhesive surface.
Resistant to hydrolysis and microbes. UV resistant to ASTM G 154.
The screening density assures disturbance-free transmission of all signals and impulses.
To optimize the EMC features we recommend a large round contact of copper braiding on both ends.
Cable Design Parameters
| Part Number | No. of Cores & Nominal Cross Sectional Area(Sq. mm) | Approx. CableDiameter (mm) | Approx. CopperWeight (kg/km) | Approx. CableWeight (kg/km) |
|---|---|---|---|---|
| 040200201075 | 2 x 0.75 | 7.4 | 30.3 | 80 |
| 040200311075 | 3G 0.75 | 7.9 | 38.5 | 95 |
| 040200301075 | 3 x 0.75 | 7.9 | 38.5 | 95 |
| 040200411075 | 4G 0.75 | 8.4 | 46.7 | 111 |
| 040200401075 | 4 x0.75 | 8.4 | 46.7 | 111 |
| 040200511075 | 5G 0.75 | 8.9 | 53.6 | 126 |
| 040200501075 | 5 x 0.75 | 8.9 | 53.6 | 126 |
| 040200711075 | 7G 0.75 | 9.7 | 70.4 | 156 |
| 040200701075 | 7 x 0.75 | 9.7 | 70.4 | 156 |
| 040201211075 | 12G 0.75 | 12.3 | 111.2 | 252 |
| 040201811075 | 18G 0.75 | 14.5 | 176.6 | 366 |
| 040202511075 | 25G 0.75 | 16.6 | 235.6 | 487 |
| 040203411075 | 34G 0.75 | 18.9 | 306.9 | 635 |
| 040204111075 | 41G 0.75 | 20.6 | 379.7 | 765 |
| 040200200001 | 2 x 1 | 7.9 | 35.3 | 92 |
| 040200310001 | 3G 1 | 8.2 | 46.5 | 107 |
| 040200300001 | 3 x 1 | 8.2 | 46.5 | 107 |
| 040200410001 | 4G 1 | 8.7 | 55.8 | 124 |
| 040200400001 | 4 x 1 | 8.7 | 55.8 | 124 |
| 040200510001 | 5G 1 | 9.5 | 67.4 | 149 |
| 040200710001 | 7G 1 | 10.2 | 87.5 | 182 |
| 040201210001 | 12G 1 | 13.3 | 160.8 | 318 |
| 040201810001 | 18G 1 | 15.5 | 222.7 | 437 |
| 040202510001 | 25G 1 | 17.5 | 298.6 | 574 |
| 040203410001 | 34G 1 | 20.2 | 389.4 | 760 |
| 040204110001 | 41G 1 | 22.0 | 480.8 | 915 |
| 040200201105 | 2 x 1.5 | 8.5 | 46.3 | 112 |
| 040200311105 | 3G 1.5 | 8.9 | 61.6 | 133 |
| 040200301105 | 3 x 1.5 | 8.9 | 61.6 | 133 |
| 040200411105 | 4G 1.5 | 9.6 | 76.0 | 159 |
| 040200401105 | 4 x 1.5 | 9.6 | 76.0 | 159 |
| 040200511105 | 5G 1.5 | 10.3 | 109.1 | 200 |
| 040200501105 | 5 x 1.5 | 10.3 | 109.1 | 200 |
| 040200711105 | 7G 1.5 | 11.3 | 137.0 | 246 |
| 040200701105 | 7 x 1.5 | 11.3 | 137.0 | 246 |
| 040201211105 | 12G 1.5 | 14.8 | 218.4 | 411 |
| 040201811105 | 18G 1.5 | 17.2 | 307.5 | 569 |
| 040202511105 | 25G 1.5 | 20.1 | 412.7 | 774 |
| 040203411105 | 34G 1.5 | 22.8 | 547.2 | 1014 |
| 040204111105 | 41G 1.5 | 24.7 | 673.1 | 1216 |
| 040200312105 | 3G 2.5 | 10.3 | 109.0 | 200 |
| 040200412105 | 4G 2.5 | 11.3 | 133.2 | 243 |
| 040200512105 | 5G 2.5 | 12.6 | 161.1 | 299 |
| 040200712105 | 7G 1.5 | 13.9 | 211.6 | 378 |
| 040201212105 | 12G 2.5 | 17.6 | 334.8 | 608 |
| 040200410004 | 4G 4 | 13.4 | 190.6 | 345 |
| 040200510004 | 5G 4 | 14.7 | 233.6 | 420 |
| 040200410006 | 4G 6 | 15.8 | 275.2 | 493 |
| 040200510006 | 5G 6 | 17.3 | 334.1 | 596 |
| 040200410010 | 4G 10 | 19.0 | 434.7 | 745 |
| 040200410016 | 4G 16 | 22.2 | 723.2 | 1130 |
Note : * G = With green / yellow earth core , X = Without green / yellow earth core
