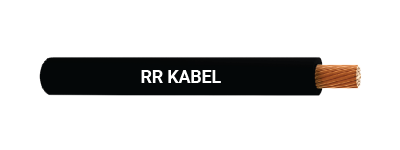

FLRYW
Application
These are thin wall auto cables with hot pressure resistant properties
Standard
In accordance to ISO 6722-1
Temperature Range (3000 Hrs)
-40°C to +125°C
Cable Construction
Soft annealed electrolytic copper Cu-ETP1 according to DIN EN 13602, bare or tinned construction acc. to ISO 6722-1 Special PVC insulation with properties according to ISO 6722-1, Class C
Packing
Available in 100 mtrs. Longer length available in spools or wooden drums.
Cable Design Parameters
|
Nom. Cross- Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Max. Conductor Diameter (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) (Bare/Tinned) |
Min. Insulation Thickness (mm) |
Overall Diameter |
Approx. Weight (Kg/Km) |
||
|
Max. |
Tolerance |
||||||||
|
FLRYW - TYPE A |
|||||||||
|
0.35 |
7 |
0.26 |
0.8 |
54.4 |
55.5 |
0.20 |
1.3 |
-0.1 |
5.0 |
|
0.5 |
19 |
0.19 |
1.0 |
37.5 |
38.2 |
0.22 |
1.6 |
-0.2 |
7.0 |
|
0.75 |
19 |
0.23 |
1.2 |
24.7 |
25.4 |
0.24 |
1.9 |
-0.2 |
9.0 |
|
1.0 |
19 |
0.26 |
1.35 |
18.5 |
19.1 |
0.24 |
2.1 |
-0.2 |
11.0 |
|
1.25 |
19 |
0.30 |
1.5 |
14.9 |
15.9 |
0.24 |
2.3 |
-0.2 |
12.0 |
|
1.5 |
19 |
0.32 |
1.7 |
12.7 |
13.0 |
0.24 |
2.4 |
-0.2 |
16.0 |
|
2.0 |
19 |
0.37 |
2.0 |
9.42 |
9.69 |
0.28 |
2.8 |
-0.3 |
22.0 |
|
FLRYW - TYPE B |
|||||||||
|
0.35 |
12 |
0.21 |
0.9 |
54.4 |
55.5 |
0.20 |
1.4 |
-0.2 |
5.0 |
|
0.5 |
16 |
0.21 |
1.0 |
37.5 |
38.2 |
0.22 |
1.6 |
-0.2 |
7.0 |
|
0.75 |
24 |
0.21 |
1.2 |
24.7 |
25.4 |
0.24 |
1.9 |
-0.2 |
9.0 |
|
1.0 |
32 |
0.21 |
1.35 |
18.5 |
19.1 |
0.24 |
2.1 |
-0.2 |
11.0 |
|
1.25* |
16 |
0.33 |
1.5 |
14.9 |
15.9 |
0.24 |
2.3 |
-0.2 |
12.0 |
|
1.5 |
30 |
0.26 |
1.7 |
12.7 |
13.0 |
0.24 |
2.4 |
-0.2 |
16.0 |
