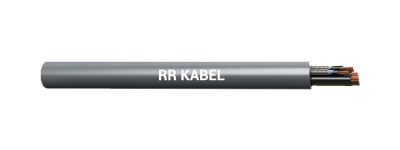

SERVO 55700
Application
These cables are with composite construction for supply and control between frequency converter and motor.
These are also used as connecting cable between servo controller and motor plant engineering. One common cable for multiple circuits.
Standard
Adapted toVDE 0812 / 0250 / 0281
Technical Data
Nominal Voltage : Supply cores : 600 / 1000V
Control core pairs : 250V
Insulation Resistance : > 20 GΩ x cm
Temperature Range : Flexing -5°C to +70°C / Fixed installation -30°C to +70°C
Minimum Bending Radius : Flexing 20 x cable ø Fixed installation 6 x cable ø
Test Voltage : Supply cores : C/C 4000V & C/S : 2000V
Control cores : C/C : 1500V, C/S : 750V
Cable Construction
Bare copper, fine wire conductors according to EN 60228 cl. 5.
Supply cores : black with white numbers according to VDE 0293 and GN-YE protective conductor.
Control pairs 0.34 Sq. mm, colour coded-WH/BR, GN/YE. Control pairs 0.5 Sq. mm and above - Black coloured with white numbers toVDE 0293.
Control pair with laminated aluminium film and tinned copper braiding.
The model with one control pair does not have laminated aluminium foil
PVC outer sheath, grey (RAL 7001).
Properties
Flame retardant according to EN 60332-1-2.
Low mutual capacitance.
For use in dry, wet and damp interiors.
SERVO 55700 is also available with UV resistance property as SERVO 55700 UV.
Kindly add 'UV' after the part no. for UV resistant cable.
UV resistant to ASTM G 154.
Cable Design Parameters
| Part Number | No. of Cores & Nominal Cross Sectional Area(Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) |
|---|---|---|---|---|
| 040601010113 | 4 G 0.75 + 2 x (2 x 0.34) | 9.5 | 59.9 | 124 |
| 040601020113 | 4 G 1.5 + 2 x (2 x 0.75) | 12.1 | 103.0 | 195 |
| 040601030113 | 4 G 2.5 + (2 x 2 x 0.75) | 13.9 | 127.6 | 258 |
| 040601040113 | 4 G 4 + (2 x 0.75 + 2 x 1) | 15.8 | 182.8 | 351 |
| 040601050113 | 4 G 6 + (2 x 0.75 + 2 x 1) | 16.7 | 250.3 | 435 |
| 040601060113 | 4 G 16 + (2 x 2 x 1) | 23.5 | 626.3 | 1052 |
| 040601070113 | 4 G 1.5 +(2 x 0.75) | 11.7 | 76.9 | 174 |
| 040601080113 | 5 G 1.5 +(2 x 0.75) | 12.7 | 89.7 | 203 |
| 040601090113 | 7 G 1.5 +(2 x 0.75) | 12.4 | 115.1 | 203 |
| 040601100113 | 4 G 2.5 +(2 x 0.75) | 13.1 | 110.9 | 239 |
| 040601110113 | 7 G 2.5 +(2 x 0.75) | 15.2 | 174.6 | 335 |
Note : * G = With green / yellow earth core , X = Without green / yellow earth core
