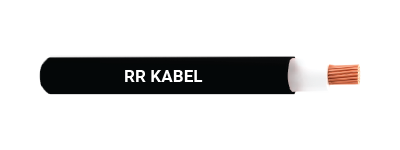

PVC IGNITION CABLE

thumbnail

Application

Ignition Cable transfers high voltage energy from distributors/coils to spark plugs.

Standard

Adapted to BS 6862 Part-1 & IS 2465

Max. Operating Temperature

70°C

Cable Construction Annealed Bare Copper, cl. 2 PVC Core insulation

PVC Sheath

Sheath colour - black

Packing

Available in 100 mtrs. coils. Longer length available in spools or wooden drums.

Properties

* Flame retardant to EN 60332-1-2

Cable Design Parameters

Nom.

Cross-Section (mm²)

Max. Strand Diameter (mm)

Total Radial Thickness of Covering (mm)

Nom. Cable Diameter (mm)

Approx Weight (kg/km)

1.5

0.31

2.8

7.0

62.5
