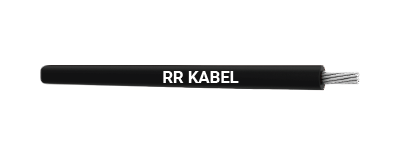

UL 3289 / 3321 / 3173 / 3271 / 3344 XLPE Cable
Application
These cables have excellent resistance to abrasion, deformation, cut-through and chemical attack. This wire is widely used in appliances, transformers, electrical heating, motors, ballast, lighting and cooking equipment. Suitable for use as Appliance Wiring Material (AWM), coil leads and as Class B IEEE 130°C Class Motor Leads. Economical replacement for silicone rubber/glass braid insulated wire and cable.
Standard
UL - Std. 758. Complies to CSA No. 22.2 210 and 127
Technical Data
Nominal Voltage : 600V
Test Voltage (Spark Test) :
AWG 22 and 20 = 5kV
AWG 18 to 10 = 6kV
≥ AWG 8 = 7.5kV
Temperature Range : Flexible -5°C to +150°C. Fixed installation -50°C to +150°C
Temperature at Conductor : Max. UL : +150°C
Bending Radius : Approx. 5 x cable ø
Cable Construction
Annealed plain or tinned stranded copper conductor.
XLPE insulation according to UL- Std. 1581 Table 50.232, Complies to CSA No. 22.2 210 and 127.
Properties
PVC self - extinguishing and flame retardant, test method to FT 2
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘z’) for the sheath colour required: 1 – black (RAL 9005), 3 – grey (RAL 7001).
| AWG | Metric Cross Section Area (Sq. mm) | No. of Strands/Strand Dia. (mm) | Max. DC Conductor Resistance for ABC @ 20°C (Ω/km) | Max. DC Conductor Resistance for ATC @ 20°C (Ω/km) | Insulation Thickness (mm) | Nominal Cable Diameter (mm) |
|---|---|---|---|---|---|---|
| 21 | 0.5 | 16/0.2 | 43.6 | 46.9 | 0.762 | 2.4 |
| 19 | 0.75 | 24/0.2 | 27.4 | 29.1 | 0.762 | 2.6 |
| 18 | 1 | 32/0.2 | 21.8 | 23.2 | 0.762 | 2.8 |
| 16 | 1.5 | 30/0.25 | 13.7 | 14.6 | 0.762 | 3.1 |
| 14 | 2.5 | 50/0.25 | 8.62 | 8.96 | 0.762 | 3.5 |
| 12 | 4 | 56/0.3 | 5.43 | 5.64 | 0.762 | 4.0 |
| 10 | 6 | 84/0.3 | 3.409 | 3.546 | 0.762 | 4.6 |
| 8 | 10 | 140/0.3 | 2.144 | 2.23 | 1.143 | 6.1 |
| 6 | 16 | 126/0.4 | 1.348 | 1.403 | 1.524 | 7.9 |
| 4 | 25 | 196/0.4 | 0.8481 | 0.882 | 1.524 | 9.1 |
| 2 | 35 | 276/0.4 | 0.5335 | 0.5548 | 1.524 | 10.7 |
| 1 | 50 | 296/0.4 | 0.423 | 0.4398 | 2.032 | 12.8 |
| Feb-00 | 70 | 360/0.5 | 0.266 | 0.2766 | 2.032 | 14.8 |
| Mar-00 | 95 | 480/0.5 | 0.211 | 0.2194 | 2.032 | 16.2 |
| Apr-00 | 120.00 | 608/0.5 | 0.1673 | 0.1722 | 2.032 | 17.7 |
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required:
01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 -violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey, 13 – light blue
Kindly complete the part numbers by adding the suffix (in place of ‘c’) for the conductor type required: 0 = annealed bare copper (ABC), 1 = annealed tinned copper (ATC)
| AWG | Metric Cross Section Area (Sq. mm) | No. of Strands/Strand Dia. (mm) | ||||
|---|---|---|---|---|---|---|
| UL 3289 | UL 3321 | UL 3173 | UL 3271 | UL 3344 | ||
| 21 | 0.5 | 06090101xx9c | 06090116xx9c | 06090131xx9c | 06090146xx9c | 06090161xx9c |
| 19 | 0.75 | 06090102xx9c | 06090117xx9c | 06090132xx9c | 06090147xx9c | 06090162xx9c |
| 18 | 1 | 06090103xx9c | 06090118xx9c | 06090133xx9c | 06090148xx9c | 06090163xx9c |
| 16 | 1.5 | 06090104xx9c | 06090119xx9c | 06090134xx9c | 06090149xx9c | 06090164xx9c |
| 14 | 2.5 | 06090105xx9c | 06090120xx9c | 06090135xx9c | 06090150xx9c | 06090165xx9c |
| 12 | 4 | 06090106xx9c | 06090121xx9c | 06090136xx9c | 06090151xx9c | 06090166xx9c |
| 10 | 6 | 06090107xx9c | 06090122xx9c | 06090137xx9c | 06090152xx9c | 06090167xx9c |
| 8 | 10 | 06090108xx9c | 06090123xx9c | 06090138xx9c | 06090153xx9c | 06090168xx9c |
| 6 | 16 | 06090109xx9c | 06090124xx9c | 06090139xx9c | 06090154xx9c | 06090169xx9c |
| 4 | 25 | 06090110xx9c | 06090125xx9c | 06090140xx9c | 06090155xx9c | 06090170xx9c |
| 2 | 35 | 06090111xx9c | 06090126xx9c | 06090141xx9c | 06090156xx9c | 06090171xx9c |
| 1 | 50 | 06090112xx9c | 06090127xx9c | 06090142xx9c | 06090157xx9c | 06090172xx9c |
| 2/0 | 70 | 06090113xx9c | 06090128xx9c | 06090143xx9c | 06090158xx9c | 06090173xx9c |
| 3/0 | 95 | 06090114xx9c | 06090129xx9c | 06090144xx9c | 06090159xx9c | 06090174xx9c |
| 4/0 | 120.00 | 06090115xx9c | 06090130xx9c | 06090145xx9c | 06090160xx9c | 06090175xx9c |
