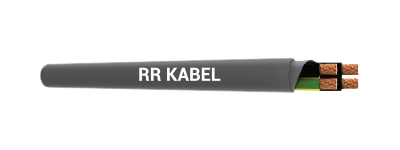

SERVO FD 80785 P
Application
For power circuits in machine cabling power circuits for electrical equipments used in automation engineering. In dry damp or wet interiors with normal mechanical stress conditions for outdoor usage within the permitted range of temperature.
Standard
Adapted to DIN VDE 0250 / 0281 / 0282
Technical Data
Nominal Voltage : UO / U 600 / 1000V
Insulation Resistance : Min. 20 GΩ x cm
Temperature Range : Flexing -40°C to +70°C
Fixed Installtion : -50°C to +70°C
Minimum Bending Radius : Flexing 5 x cable ø. Fixed installation 3 x cable ø
Test Voltage : 4000V
Cable Construction
Bare copper, fine wire conductors according to EN 60228 Cl. 6.
TPE core insulation.
Black coloured with white numbers acc to VDE 0293
Cores are twisted together with shorter lay length.
Non woven wrapping.
Outer sheath : PUR grey (RAL 7001).
Properties
Flame retardant according to EN 60332-1-2.
Halogen free.
Oil resistant.
Low adhesive surface.
UV resistant to ASTM G 154.
Cable Design Parameters
| Part Number | No. of Cores & Nominal Cross Sectional Area(Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) |
|---|---|---|---|---|
| 041100411105 | 4G1.5 | 10.0 | 1.5 | 132 |
| 041100411205 | 4G2.5 | 11.9 | 2.5 | 189 |
| 041100410004 | 4G4 | 13.7 | 4 | 268 |
| 041100410006 | 4G6 | 15.1 | 6 | 374 |
| 041100410010 | 4G10 | 19.6 | 10 | 609 |
| 041100410016 | 4G16 | 22.8 | 16 | 896 |
| 041100511105 | 5G1.5 | 11.2 | 1.5 | 161 |
| 041100511205 | 5G2.5 | 13.3 | 2.5 | 233 |
| 041100510004 | 5G4 | 15.2 | 4 | 330 |
| 041100510006 | 5G6 | 16.8 | 6 | 461 |
| 041100510016 | 5G16 | 25.5 | 16 | 1106 |
| 041100510025 | 5G25 | 30.8 | 25 | 1699 |
Note : * G = With green / yellow earth core
