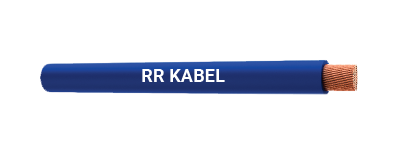

UL 1015
Application
These cables are used for internal wiring of panels and electrical equipment. These are used as connection wire in machines laid in protective tubes and flexible pipes and also for motors and transformers.
Standard
UL 1015, 758, CSA C 22.2 No 210 & BS 6231
Technical Data
Nominal Voltage : 600V Vac
UL - Type AWM 105°C 600V
CSA - Type AWM 105°C 600V
Test Voltage (Spark Test)
AWG 22 and 20 : 5kV
AWG 18 to 16 : 6kV
≥ AWG 8: 7.5kV
Temperature Range : Flexing -5°C to +105°C. Fixed installation -20°C to +105°C
Temperature at Conductor : Max. UL and CSA : +105°C
Bending Radius :
Cable diameter ≤ 8 mm : 4 x outer diameter
Flexing 10 x cable ø'. Fixed installation 5 x cable ø
Cable Construction
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 -Violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey.
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 -Violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey, 13 – light blue
| Part Number | AWG No. | No. of Cores & Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx Cable Weight (kg/km) |
|---|---|---|---|---|---|
| 06020101xx30 | 24 | 1 x 0.21 | 2.2 | 2.1 | 7 |
| 06020102xx30 | 22 | 1 x 0.33 | 2.4 | 3.5 | 9 |
| 06020103xx30 | 20 | 1 x 0.52 | 2.5 | 5.2 | 11 |
| 06020104xx30 | 18 | 1 x 0.82 | 2.8 | 8.3 | 16 |
| 06020105xx30 | 16 | 1 x 1.32 | 3.1 | 13.5 | 22 |
| 06020106xx30 | 14 | 1 x 2.08 | 3.5 | 20.4 | 31 |
| 06020107xx30 | 12 | 1 x 3.31 | 4.0 | 32.5 | 45 |
| 06020108xx30 | 10 | 1 x 5.26 | 4.6 | 51.7 | 68 |
| 06020109xx30 | 8 | 1 x 8.35 | 6.2 | 82.5 | 113 |
| 06020110xx30 | 6 | 1 x 13.3 | 8.0 | 132.1 | 184 |
| 06020111xx30 | 4 | 1 x 21.14 | 9.4 | 207.3 | 275 |
| 06020112xx30 | 3 | 1 x 26.65 | 10.2 | 262.0 | 339 |
| 06020113xx30 | 2 | 1 x 33.61 | 11.0 | 330.3 | 416 |
| 06020114xx30 | 1 | 1 x 42.38 | 13.0 | 416.9 | 543 |
| 06020115xx30 | 1/0 | 1 x 53.47 | 13.8 | 524.6 | 659 |
| 06020116xx30 | 2/0 | 1 x 67.4 | 15.2 | 661.0 | 820 |
| 06020117xx30 | 3/0 | 1 x 85.0 | 16.5 | 832.3 | 1013 |
| 06020118xx30 | 4/0 | 1 x 107.2 | 18.0 | 1050.9 | 1257 |
| 06020119xx30 | 250 kcmil | 1 x 127 | 20.0 | 1245.0 | 1507 |
| 06020120xx30 | 300 kcmil | 1 x 152 | 21.4 | 1489.8 | 1780 |
| 06020121xx30 | 350 kcmil | 1 x 178 | 22.6 | 1734.6 | 2048 |
| 06020122xx30 | 400 kcmil | 1 x 203 | 24.0 | 1989.9 | 2338 |
| 06020123xx30 | 500 kcmil | 1 x 254 | 26.0 | 2479.5 | 2868 |
