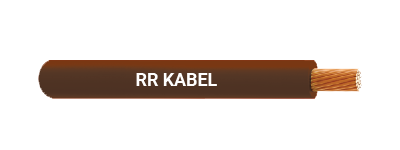

GXL
Application
These are standard wall insulated cables for general purpose application in automotive electric circuits of motorcycles and off-road vehicles.
Standard
In accordance to SAE J1128
Temperature Range (3000 Hrs)
40°C to +125°C
Packing
Available in 100 mtrs. coil. Longer length available in spools or wooden drums.
Cable Construction
Soft annealed electrolytic copper ASTM B3
Cross-linked polyethylene (PE) with heat resistant properties according to SAE J1128
Special Properties
High temperature resistant and flame retardant
Provides higher reliability in heat resistance than conventional general wires due to emission bridging
Cable Design Parameters
|
SAE Conductor Size No. |
No. of Strands |
Max. Strand Diameter mm |
Nominal Conductor Diameter mm |
Nominal Insulation Thickness mm |
Approx. Overall Diameter mm |
|
22* |
7 |
0.26 |
0.78 |
0.58 |
2.0 |
|
20 |
7 |
0.32 |
0.96 |
0.58 |
2.2 |
|
20 |
19 |
0.19 |
0.95 |
0.58 |
2.2 |
|
18 |
16 |
0.26 |
1.22 |
0.58 |
2.4 |
|
18 |
19 |
0.23 |
1.12 |
0.58 |
2.4 |
|
16 |
19 |
0.29 |
1.45 |
0.58 |
2.7 |
|
14 |
19 |
0.36 |
1.80 |
0.58 |
3.0 |
|
12 |
19 |
0.45 |
2.25 |
0.66 |
3.6 |
|
10 |
19 |
0.58 |
2.98 |
0.79 |
4.5 |
|
10 |
104 |
0.25 |
2.90 |
0.79 |
4.5 |
|
8 |
19 |
0.72 |
3.60 |
0.94 |
5.6 |
|
8 |
50 |
0.45 |
3.67 |
0.94 |
5.6 |
|
6* |
37 |
0.72 |
5.10 |
1.09 |
7.3 |
|
6* |
133 |
0.36 |
4.80 |
1.09 |
7.0 |
