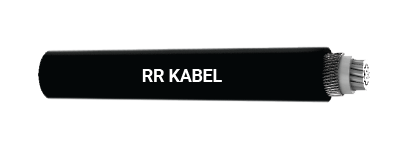

A2XFaY / 2XFaY-A2XWaY / 2XWaYE
Cable Construction
1.1 kV (A.C) & 1.5 kV (D.C ) to Earth
1 cores AL / CU conductor, XLPE insulated, aluminum strip / wire armoured cables as per IS 7098 Part - 1.
Conductor : AL up to 10 Sq. mm conductor are solid Cl. 1 as per IS 8130. And above 10 Sq. mm conductor are stranded round or compact Cl. 2 as per IS 8130
In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded Cl. 2 as per IS 8130. 10 Sq. mm & above stranded round or stranded compact Cl. 2 as per IS 8130
Insulation : Crosslinked polyethylene (XLPE)
Core Color : Red or yellow or blue or black
Armouring : Single armouring of aluminum strip or aluminum wire as per IS 7098 P - 1
Inner Sheath : PVC / PVC tape as per IS 7098 (P - 1)
Outer Sheath : PVC Type ST - 2 as per IS 5831 (Option : FR Type / FRLS Type)
Cable Color : Black (Options : Any other color as per requirement)
Cable Design Parameters
While ordering, in addition to the part number the following details shall also be advised:
Conductor Type (Aluminium or Copper) and class of conductor (Cl. 1 or 2).
Sheath Type – PVC Type ST – 2 (FR or FRLS).
Colour from above technical details.
| PartNumber | Nominal Cross Sectional Area (Sq. mm) | Nominal Thickness of Insulation(mm) | Armouring with flat strip (A2XFaY/ 2XFaY) | Armouring with Round Wire (AYWaY/YWaY) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Thickness of Arm. Strip(mm) | MinimumThickness of Outer Sheath(mm) | Approx. Overall Dia.(mm) | Approx Net Wt.of Cable (kg/km) | Nominal Diameter of Wire(mm) | Minimum Thickness of Outer Sheath(mm) | Approx. Overall Dia.(mm) | Approx Net Wt.of Cable (kg/km) | |||||
| AL Cable A2XFaY | CU Cable 2XFaY | AL Cable AYWaY | CU Cable YWaY | |||||||||
| 111800100016 | 16 | 1.0 | N/A | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 13 | 200 | 300 |
| 111800100025 | 25 | 1.2 | N/A | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 14 | 300 | 455 |
| 111800100035 | 35 | 1.2 | N/A | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 15 | 350 | 567 |
| 111800100050 | 50 | 1.3 | N/A | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 17 | 420 | 730 |
| 111800100070 | 70 | 1.4 | N/A | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 19 | 520 | 954 |
| 111800100095 | 95 | 1.4 | 0.8 | 1.40 | 21 | 600 | 1195 | 1.6 | 1.4 | 22 | 650 | 1235 |
| 111800100120 | 120 | 1.5 | 0.8 | 1.40 | 23 | 700 | 1450 | 1.6 | 1.4 | 24 | 750 | 1494 |
| 111800100150 | 150 | 1.7 | 0.8 | 1.40 | 24 | 800 | 1730 | 1.6 | 1.4 | 25 | 850 | 1780 |
| 111800100185 | 185 | 1.9 | 0.8 | 1.40 | 26 | 950 | 2100 | 1.6 | 1.4 | 28 | 1000 | 2147 |
| 111800100240 | 240 | 2.0 | 0.8 | 1.40 | 30 | 1200 | 2690 | 1.6 | 1.4 | 30 | 1250 | 2738 |
| 111800100300 | 300 | 2.1 | 0.8 | 1.56 | 32 | 1400 | 3270 | 1.6 | 1.56 | 33 | 1500 | 3360 |
| 111800100400 | 400 | 2.4 | 0.8 | 1.56 | 36 | 1750 | 4230 | 2.0 | 1.56 | 38 | 1900 | 4380 |
| 111800100500 | 500 | 2.6 | 0.8 | 1.56 | 39 | 2150 | 5250 | 2.0 | 1.56 | 41 | 2350 | 5450 |
| 111800100630 | 630 | 2.8 | 0.8 | 1.72 | 44 | 2700 | 6610 | 2.0 | 1.72 | 46 | 2900 | 6806 |
| 111800100800 | 800 | 3.1 | 0.8 | 1.72 | 48 | 3350 | 8320 | 2.0 | 1.88 | 51 | 3600 | 8560 |
| 111800101000 | 1000 | 3.3 | 0.8 | 1.88 | 54 | 4100 | 10300 | 2.5 | 2.04 | 56 | 4600 | 10800 |
