1.1 kV (A.C) & 1.5 kV (D.C ) to Earth

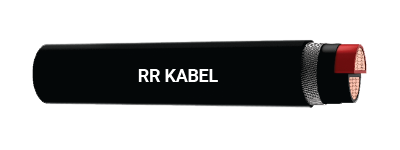

2 cores AL / CU conductor, PVC insulated, galvanised steel strip / wire armoured cables as per IS 1554 Part - 1.
Conductor : AL up to 10 Sq. mm conductor are solid Cl. 1 as per IS 8130. And above 10 Sq. mm conductor are stranded round or compact round or compact shape conductor Cl. 2 as per IS 8130
In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded round Cl. 2 as per IS 8130. 10 Sq. mm conductor is stranded round or stranded compact conductor Cl. 2 as per IS 8130
Above 10 Sq. mm conductor are stranded round or compact round or compacted shaped Cl. 2 as per IS 8130.
Insulation : PVC Type - A, as per IS 5831. (Option : HR PVC Type - C, as per IS 5831)
Core Color : Red, black
Inner Sheath : PVC / PVC tape as per IS 1554 (P - 1)
Armouring : Single armouring of G.I. Wire or G.I. Strip as per IS 3975
Outer Sheath : PVC Type ST - 1 as per IS 5831 (Option : PVC Type ST - 2 as per IS 5831 / FR Type / FRLS Type)
Cable Color : Black (Options : Any other color as per requirement)
Cable Design Parameters
While ordering, in addition to the part number the following details shall also be advised:
Conductor Type (Aluminium or Copper) and class of conductor (Cl. 1 or 2).
Insulation Type – PVC Type A / C.
Sheath Type – PVC Type ST – 1 / FR / FRLS; PVC Type ST – 2 / FR /FRLS.
PartNumber | Nominal Cross Sectional Area (Sq. mm) | Minimum No. of Strands in Conductor | Nominal Thickness of Insulation (mm) | Minimum Thick. of Inner Sheath (mm) | Armouring with Flat AL Strip (AYFaY/YFaY) | Armouring with Round Wire (AYWaY/YWaY) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AL | CU | Nominal Thick. of Arm. Strip (mm) | Minimum Thick. of Out. Sheath(mm) | Approx. Overall Dia.(mm) | Approx Net Wtof Cable (kg/km) | Nominal Diameter of Wire (mm) | Minimum Thick. of Out. Sheath (mm) | Approx. Overall Dia. (mm) | Approx Net Wtof Cable (kg/km) | ||||||
AL Cable AYFaY | CU Cable YFaY | AL Cable AYWaY | CU Cable YWaY | ||||||||||||
110700200004 | 4 | _ | 1/7 | 1.0 | 0.3 | N/A | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 18 | 600 | 650 |
110700200006 | 6 | 1 | 1/7 | 1.0 | 0.3 | N/A | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 19 | 660 | 730 |
110700200010 | 10 | 1 | 6 | 1.0 | 0.3 | N/A | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 20 | 750 | 870 |
110700200016 | 16 | 6 | 6 | 1.0 | 0.3 | 0.8 | 1.40 | 18 | 580 | 780 | 1.6 | 1.40 | 20 | 750 | 950 |
110700200025 | 25 | 6 | 6 | 1.2 | 0.3 | 0.8 | 1.40 | 20 | 700 | 1000 | 1.6 | 1.40 | 22 | 900 | 1200 |
110700200035 | 35 | 6 | 6 | 1.2 | 0.3 | 0.8 | 1.40 | 22 | 800 | 1230 | 1.6 | 1.40 | 23 | 1030 | 1450 |
110700200050 | 50 | 6 | 6 | 1.4 | 0.4 | 0.8 | 1.40 | 25 | 1000 | 1620 | 1.6 | 1.56 | 26 | 1300 | 1900 |
110700200070 | 70 | 12 | 12 | 1.4 | 0.4 | 0.8 | 1.56 | 27 | 1200 | 2050 | 1.6 | 1.56 | 29 | 1500 | 2350 |
110700200095 | 95 | 15 | 15 | 1.6 | 0.4 | 0.8 | 1.56 | 30 | 1550 | 2720 | 2.0 | 1.56 | 33 | 2050 | 3200 |
110700200120 | 120 | 15 | 18 | 1.6 | 0.5 | 0.8 | 1.56 | 32 | 1800 | 3290 | 2.0 | 1.72 | 35 | 2400 | 3900 |
110700200150 | 150 | 15 | 18 | 1.8 | 0.5 | 0.8 | 1.72 | 35 | 2100 | 3970 | 2.0 | 1.72 | 37 | 2760 | 4600 |
110700200185 | 185 | 30 | 30 | 2.0 | 0.6 | 0.8 | 1.88 | 38 | 2500 | 4800 | 2.0 | 1.88 | 41 | 3200 | 5500 |
110700200240 | 240 | 30 | 34 | 2.2 | 0.6 | 0.8 | 2.04 | 43 | 3100 | 6080 | 2.5 | 2.04 | 47 | 4200 | 7200 |
110700200300 | 300 | 30 | 34 | 2.4 | 0.7 | 0.8 | 2.20 | 48 | 3700 | 7400 | 2.5 | 2.20 | 50 | 5000 | 8700 |
110700200400 | 400 | 53 | 53 | 2.6 | 0.7 | 0.8 | 2.36 | 53 | 4500 | 9450 | 3.2 | 2.52 | 58 | 6600 | 11500 |
110700200500 | 500 | 53 | 53 | 3.0 | 0.7 | 0.8 | 2.68 | 56 | 5600 | 11800 | 3.2 | 2.84 | 64 | 8000 | 14000 |
110700200630 | 630 | 53 | 53 | 3.4 | 0.7 | 0.8 | 2.84 | 66 | 6900 | 14700 | 4.0 | 3.00 | 72 | 11000 | 18800 |
Electrical Parameters
Part Number | Nominal Cross Sectional Area(Sq. mm) | Max. DC Conductor Resistance at20°C (Ω/km) | Max. AC Conductor Resistance at70°C (Ω/km) | Approx.Capacitance of Cable (microF/KM) | Approx. Capacitance of Cable (microF/KM | Normal Current Rating (Amps) | Short CircuitCurrent Ratingfor 1sec. Duration(K.Amps) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
With AL Cond. | With CU Cond. | ||||||||||||||
AL | CU | AL | CU | Ground | Duct | Air | Ground | Duct | Air | AL | CU | ||||
110700200004 | 4 | _ | 4.61 | _ | 5.53 | 0.098 | 0.23 | 32 | 27 | 27 | 41 | 35 | 35 | 0.304 | 0.46 |
110700200006 | 6 | 4.61 | 3.08 | 5.53 | 3.7 | 0.096 | 0.28 | 40 | 34 | 35 | 50 | 44 | 45 | 0.456 | 0.69 |
110700200010 | 10 | 3.08 | 1.83 | 3.7 | 2.2 | 0.091 | 0.34 | 55 | 45 | 47 | 70 | 58 | 60 | 0.76 | 1.15 |
110700200016 | 16 | 1.91 | 1.15 | 2.29 | 1.38 | 0.085 | 0.4 | 70 | 58 | 59 | 90 | 75 | 78 | 1.22 | 1.84 |
110700200025 | 25 | 1.2 | 0.727 | 1.44 | 0.87 | 0.083 | 0.42 | 90 | 76 | 78 | 115 | 97 | 105 | 1.9 | 2.88 |
110700200035 | 35 | 0.868 | 0.524 | 1.04 | 0.63 | 0.082 | 0.48 | 110 | 92 | 99 | 140 | 120 | 125 | 2.66 | 4.03 |
110700200050 | 50 | 0.641 | 0.387 | 0.769 | 0.464 | 0.082 | 0.49 | 135 | 115 | 125 | 165 | 145 | 155 | 3.8 | 5.75 |
110700200070 | 70 | 0.443 | 0.268 | 0.532 | 0.322 | 0.076 | 0.56 | 160 | 140 | 150 | 205 | 180 | 195 | 5.32 | 8.05 |
110700200095 | 95 | 0.32 | 0.193 | 0.384 | 0.232 | 0.076 | 0.58 | 190 | 170 | 185 | 240 | 215 | 230 | 7.22 | 10.9 |
110700200120 | 120 | 0.253 | 0.153 | 0.304 | 0.184 | 0.075 | 0.63 | 210 | 190 | 210 | 275 | 235 | 265 | 9.12 | 13.8 |
110700200150 | 150 | 0.206 | 0.124 | 0.247 | 0.1488 | 0.074 | 0.63 | 240 | 210 | 240 | 310 | 270 | 305 | 11.4 | 17.3 |
110700200185 | 185 | 0.164 | 0.0991 | 0.197 | 0.1189 | 0.074 | 0.64 | 275 | 240 | 275 | 350 | 300 | 350 | 14.1 | 21.3 |
110700200240 | 240 | 0.125 | 0.0754 | 0.151 | 0.0912 | 0.073 | 0.67 | 320 | 275 | 325 | 405 | 345 | 410 | 18.2 | 27.6 |
110700200300 | 300 | 0.1 | 0.0601 | 0.122 | 0.0733 | 0.073 | 0.68 | 355 | 305 | 365 | 450 | 385 | 465 | 22.8 | 34.5 |
110700200400 | 400 | 0.0778 | 0.047 | 0.0961 | 0.058 | 0.072 | 0.7 | 385 | 345 | 420 | 490 | 485 | 530 | 30.4 | 46 |
110700200500 | 500 | 0.0605 | 0.0366 | 0.0759 | 0.0459 | 0.072 | 0.7 | 425 | 380 | 475 | 540 | 460 | 605 | 38 | 57.5 |
110700200630 | 630 | 0.0469 | 0.0283 | 0.061 | 0.0368 | 0.072 | 0.7 | 465 | 415 | 540 | 640 | 550 | 785 | 47.9 | 72.5 |
