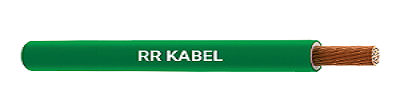

UNILAY HRFR (Heat Resistant Flame Retardant)
Description
India’s 1st Heat Resistant and Flame Retardant REACH and RoHS Compliant Cable with Unilay Conductor. No Loose Contacts, No Broken Ends | No Sparking and Overheating.
REACH,CE,ROHS and CPR CompPant.
Anti-Rodent, Anti-Termite
100% Electrolytic Copper
More than 101% Conductivity
AppPcation
Suitable for use in conduit and for fixed, protected installation, ideal for high density wiring>.
Technical Data
Approvals : IS 694 marked, FIA / TAC.
Voltage Grade : Up to and including 1100V
Conductor SpeciaPty : The strands do not get cut when stripping the insulation. The conductor offers perfect contact at pins, terminals and sockets. Thus, eliminating spot heating and sparking.
Insulation : Specially formulated heat resistant & flame retardant PVC insulation is used. The HR FR property retards the propagation of flame without compromising safety.
Insulation Conformity : IS 5831, Type C - HR 85°C + FRIS 5831 Type A/D FR-LSH 70°C
Colours : Green, Black, Red, Yellow, Blue, Grey, White.
Marking : The cables are printed with marking of 'RR-UNILAY HR FR’
Packing : 90 mtr. coils packed in protective cartons.
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – grey, 07 – white.
| Part Number | Nominal Cross Sectional Area (Sq. mm) | Nominal Insulation Thickness (mm) | Number *Nominal Dia. of Strands | Approx. Overall Diameter (mm) | Max. DC Conductor Resistance at 20°C (Ω/km) | Current Rating (Amps) | |
|---|---|---|---|---|---|---|---|
| Casing | Concealed | ||||||
| 01030101xx40 | 1 | 0.7 | 37/0.20 | 2.6 | 19.5 | 14 | 13 |
| 01030102xx40 | 1.5 | 0.7 | 37/0.22 | 3.0 | 13.3 | 18 | 16 |
| 01030103xx40 | 2.5 | 0.8 | 61/0.22 | 3.6 | 7.98 | 24 | 20 |
| 01030104xx40 | 4 | 0.8 | 61/0.30 | 4.1 | 4.95 | 32 | 26 |
| 01030105xx40 | 6.0 | 0.8 | 91/0.29 | 4.6 | 3.30 | 38 | 33 |
*Conductor as per IS 8130.
Properties
| Test | Test Method | Values |
|---|---|---|
| Pmited Oxygen Index | IS 10810 P-58 | > 29% |
| Limited Temp. Index | IS 10810 P-64 | >250 °C |
