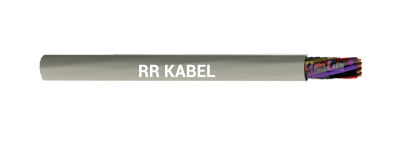

LiYY
Application
These are special PVC data cables used for flexible use with free movement without tensile stress of forced movements in dry, moist and wet rooms but not suitable for open air, wherever the construction requirements call for a minimum outer diameter.
Standard
Based on VDE 0812
Technical Data
Voltage Grade (not for power installation) : 0.14 mm² = 350 V; >/= 0.25 mm² = 500 V
Insulation Resistance : Min. 20 GΩ x cm
Temperature Range : Flexing -5°C to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius : For flexible use 10 x cable ø
Test Voltage : Up to 0.25 mm² = 1200 V. From 0.34 mm² = 2000 V
Breakdown Voltage : Up to 0.25 mm² = 2400 V. From 0.34 mm² = 4000 V
Cable Construction
Bare copper, fine wire conductors, bunch stranded DIN VDE 0295 cl. 5, EN 60228 cl. 5.
Special PVC core insulation TI2, to EN 50363-3.
Conductor make-up for
0.14 mm² = 18 x 0.10 mm.
0.25 mm² = 14 x 0.15 mm.
0.34 mm² = 19 x 0.15 mm.
Core colours as per DIN 47100.
Cores stranded in layers with optimal lay-length.
Plastic foil wrapping for 10 cores and above Special PVC outer sheath TM2, to EN 50363-4.1.
Colour grey (RAL 7032).
Properties
PVC self-extinguishing and flame retardant according to EN 60332-1-2.
Capacitance (approx. Value)
up to 0.5 mm² – 120 nF/km
above 0.5 mm² – 160 nF/km.
nductance approx. 0.65 mH/km.
Cable Design Parameters
| Part Number | No. of Cores & Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx Cable Weight (kg/km) |
|---|---|---|---|---|
| 50100201014 | 2 x 0.14 | 3.3 | 2.6 | 15 |
| 50100301014 | 3 x 0.14 | 3.4 | 3.9 | 17.4 |
| 50100401014 | 4 x 0.14 | 3.7 | 5.2 | 20.8 |
| 50100501014 | 5 x 0.14 | 4 | 6.5 | 24.5 |
| 50100701014 | 7 x 0.14 | 4.6 | 9.1 | 32.4 |
| 50100801014 | 8 x 0.14 | 5 | 10.6 | 38.6 |
| 50101001014 | 10 x 0.14 | 5.5 | 13.2 | 48 |
| 50101201014 | 12 x 0.14 | 5.7 | 15.9 | 52.5 |
| 50101401014 | 14 x 0.14 | 6 | 18.5 | 58.4 |
| 50101601014 | 16 x 0.14 | 6.3 | 21.1 | 65.1 |
| 50102001014 | 20 x 0.14 | 6.9 | 26.7 | 80.3 |
| 50102501014 | 25 x 0.14 | 7.6 | 33.4 | 98.1 |
| 50103601014 | 36 x 0.14 | 8.7 | 48 | 131.8 |
| 50103701014 | 37 x 0.14 | 8.7 | 49.4 | 134.1 |
| 50104001014 | 40 x 0.14 | 9 | 53.4 | 142.8 |
| 50105001014 | 50 x 0.14 | 9.9 | 66.7 | 174.4 |
| 50105601014 | 56 x 0.14 | 10.4 | 74.7 | 193.9 |
| 50100201025 | 2 x 0.25 | 4.1 | 4.5 | 23.5 |
| 50100301025 | 3 x 0.25 | 4.3 | 6.8 | 27.6 |
| 50100401025 | 4 x 0.25 | 4.7 | 9.1 | 33.5 |
| 50100501025 | 5 x 0.25 | 5.1 | 11.3 | 40 |
| 50100701025 | 7 x 0.25 | 5.8 | 15.9 | 52.9 |
| 50100801025 | 8 x 0.25 | 6.3 | 18.5 | 63.7 |
| 50101001025 | 10 x 0.25 | 7.1 | 23.1 | 80.3 |
| 50101201025 | 12 x 0.25 | 7.3 | 27.7 | 88.2 |
| 50101401025 | 14 x 0.25 | 7.7 | 32.4 | 98.6 |
| 50101601025 | 16 x 0.25 | 8.1 | 37 | 110.4 |
| 50101801025 | 18 x 0.25 | 8.5 | 42 | 123.6 |
| 50102001025 | 20 x 0.25 | 9 | 46.7 | 137.5 |
| 50102501025 | 25 x 0.25 | 10 | 58.4 | 169.3 |
| 50103001025 | 30 x 0.25 | 10.5 | 70 | 193.8 |
| 50103201025 | 32 x 0.25 | 11 | 74.7 | 208.5 |
| 50103601025 | 36 x 0.25 | 11.4 | 84 | 229.6 |
| 50103701025 | 37 x 0.25 | 11.5 | 86.4 | 233.6 |
| 50104001025 | 40 x 0.25 | 11.9 | 93.4 | 249.3 |
| 50105001025 | 50 x 0.25 | 13.1 | 116.7 | 306.2 |
| 50100201034 | 2 x 0.34 | 4.2 | 6.2 | 25.8 |
| 50100301034 | 3 x 0.34 | 4.4 | 9.2 | 30.8 |
| 50100401034 | 4 x 0.34 | 4.8 | 12.3 | 37.6 |
| 50100501034 | 5 x 0.34 | 5.2 | 15.4 | 45.1 |
| 50100701034 | 7 x 0.34 | 5.7 | 21.5 | 57 |
| 50100801034 | 8 x 0.34 | 6.5 | 25.1 | 72 |
| 50101001034 | 10 x 0.34 | 7.3 | 31.4 | 90.8 |
| 50101201034 | 12 x 0.34 | 7.6 | 37.7 | 100.3 |
| 50101401034 | 14 x 0.34 | 7.9 | 43.9 | 112.5 |
| 50101601034 | 16 x 0.34 | 8.4 | 50.2 | 126.2 |
| 50101801034 | 18 x 0.34 | 8.8 | 57 | 141.6 |
| 50102001034 | 20 x 0.34 | 9.3 | 63.4 | 157.6 |
| 50102101034 | 21 x 0.34 | 9.3 | 66.5 | 160.3 |
| 50102501034 | 25 x 0.34 | 10.3 | 79.2 | 195.1 |
| 50103001034 | 30 x 0.34 | 10.9 | 95 | 223.3 |
| 50103601034 | 36 x 0.34 | 11.8 | 114.1 | 265 |
| 50104001034 | 40 x 0.34 | 12.2 | 126.7 | 288.2 |
| 50105001034 | 50 x 0.34 | 13.5 | 158.4 | 354.7 |
| 50100201050 | 2 x 0.5 | 4.8 | 9.2 | 35.2 |
| 50100301050 | 3 x 0.5 | 5.1 | 13.8 | 42.4 |
| 50100401050 | 4 x 0.5 | 5.5 | 18.4 | 52.2 |
| 50100501050 | 5 x 0.5 | 6 | 23 | 63 |
| 50100601050 | 6 x 0.5 | 6.6 | 27.6 | 75 |
| 50100701050 | 7 x 0.5 | 6.7 | 32.2 | 80.3 |
| 50100801050 | 8 x 0.5 | 7.6 | 37.6 | 101.1 |
| 50101001050 | 10 x 0.5 | 8.6 | 47 | 128.2 |
| 50101201050 | 12 x 0.5 | 8.9 | 56.4 | 142.2 |
| 50101401050 | 14 x 0.5 | 9.3 | 65.8 | 160 |
| 50101601050 | 16 x 0.5 | 9.8 | 75.2 | 179.9 |
| 50102001050 | 20 x 0.5 | 11 | 94.9 | 225.6 |
| 50102501050 | 25 x 0.5 | 12.2 | 118.6 | 280.3 |
| 50103001050 | 30 x 0.5 | 12.9 | 142.3 | 321.8 |
| 50104001050 | 40 x 0.5 | 14.6 | 189.7 | 416.8 |
| 50100201075 | 2 x 0.75 | 5.1 | 13.8 | 42.8 |
| 50100301075 | 3 x 0.75 | 5.4 | 20.7 | 52.5 |
| 50100401075 | 4 x 0.75 | 5.9 | 27.6 | 65.2 |
| 50100501075 | 5 x 0.75 | 6.5 | 34.5 | 79.1 |
| 50100701075 | 7 x 0.75 | 7.2 | 48.4 | 101.8 |
| 50100801075 | 8 x 0.75 | 8.1 | 56.4 | 127.1 |
| 50101001075 | 10 x 0.75 | 9.2 | 70.5 | 161.4 |
| 50101201075 | 12 x 0.75 | 9.5 | 84.6 | 180.4 |
| 50101601075 | 16 x 0.75 | 10.6 | 112.7 | 229.7 |
| 50102001075 | 20 x 0.75 | 11.8 | 142.3 | 288.5 |
| 50102501075 | 25 x 0.75 | 13.2 | 177.9 | 359.2 |
| 50100200001 | 2 x 1 | 5.6 | 18.4 | 53.4 |
| 50100300001 | 3 x 1 | 6 | 27.6 | 66 |
| 50100500001 | 5 x 1 | 7.2 | 46.1 | 100.3 |
| 50100201105 | 2 x 1.5 | 6.7 | 27 | 75.7 |
| 50100301105 | 3 x 1.5 | 7.1 | 40.5 | 93.9 |
| 50100401105 | 4 x 1.5 | 7.8 | 54 | 117.4 |
