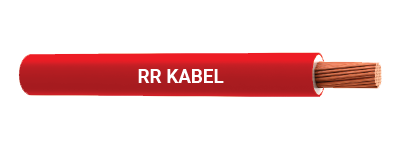

BS 6231 CK 90°C
Application
High temperature, flame retardant cable designed for use in switch control, relay and instrumentation panels of power switchgear and for
purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Standard
BS6231 Type CK.
Technical Data
Voltage Rating : 600 / 1000V
Temperature Rating : 90°C (105°C for 15,000 hours)
Test Voltage : 4000V
Minimum Bending Radius :
Cable diameter ≤ 8 mm : 4 x outer diameter.
Approx. diameter > 8 to 12 mm: 5 x outer diameter.
Approx. diameter > 12 mm: 6 x outer diameter.
Construction
Conductor : Conductor Class 5 flexible plain/metal coated stranded according to EN 60228 cl. 5. Insulation : PVC (Polyvinyl Chloride) TI3 to BS EN 50363-3.
Properties
PVC self-extinguishing and flame retardant according to EN 60332-1-2.
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required :
01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink,
12 – grey.
By adding the suffix (in place of ‘c’) for the conductor type required :
0 = Annealed Bare Copper (ABC), 1 = Annealed Tinned Copper (ATC).
| Part Number | Nominal Cross Sectional Area (Sq. mm) | Nominal Thickness of Insulation (mm) | Mean Overall Diameter | Approx. Cable Weight (kg/km) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lower Limit (mm) | Upper Limit (mm) | ||||||||||
| 02060101xx3c | 0.5 | 0.8 | 2.4 | 3.0 | 11 | ||||||
| 02060102xx3c | 0.75 | 0.8 | 2.6 | 3.1 | 14 | ||||||
| 02060103xx3c | 1 | 0.8 | 2.7 | 3.3 | 16 | ||||||
| 02060104xx3c | 1.5 | 0.8 | 3.0 | 3.6 | 21 | ||||||
| 02060105xx3c | 2.5 | 0.8 | 3.4 | 4.1 | 32 | ||||||
| 02060106xx3c | 4 | 0.8 | 3.9 | 4.8 | 46 | ||||||
| 02060107xx3c | 6 | 0.8 | 4.4 | 5.3 | 64 | ||||||
| 02060108xx3c | 10 | 1.0 | 5.7 | 7.2 | 109 | ||||||
| 02060109xx3c | 16 | 1.0 | 6.7 | 9.0 | 166 | ||||||
| 02060110xx3c | 25 | 1.2 | 8.4 | 11.5 | 256 | ||||||
| 02060111xx3c | 35 | 1.2 | 9.7 | 12.5 | 352 | ||||||
| 02060112xx3c | 50 | 1.4 | 11.5 | 15.4 | 501 | ||||||
| 02060113xx3c | 70 | 1.4 | 13.2 | 17.5 | 692 | ||||||
| 02060114xx3c | 95 | 1.6 | 15.1 | 19.2 | 914 | ||||||
| 02060115xx3c | 120 | 1.6 | 16.7 | 21.2 | 1155 | ||||||
| 02060116xx3c | 150 | 1.8 | 18.6 | 23.9 | 1441 | ||||||
| 02060117xx3c | 185 | 2.0 | 20.6 | 25.9 | 1754 | ||||||
| 02060118xx3c | 240 | 2.2 | 23.5 | 28.9 | 2305 | ||||||
Note : These cable are also catered with compliance to AWM, UL 1015 and CSA C22.2 No. 210-11 as Trirated cable.
