ACW
Application

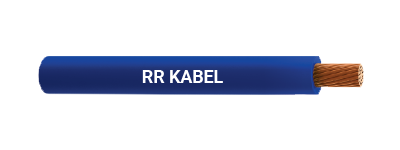

These are power train cables for automobiles. These are used in wire harness of low-tension engine compartment circuits for automobiles
Max. Operating Temperature
150°C
Temperature Range (3000 Hrs)
-40°C to +105°C
Cable Construction
Bare or annealed tinned copper TPE-E (Thermoplastic Elastomer)
Packing
Available in 100 mtrs. Longer length available in spools.
Cable Design Parameters
|
Nom. Cross-Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Max. Conductor Diameter (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) |
Nominal Insulation Thickness (mm) |
Overall Diameter |
|
|
Min. |
Max. |
||||||
|
0.35 |
7 |
0.26 |
0.9 |
52.0 |
0.25 |
1.2 |
1.4 |
|
0.50 |
19 |
0.20 |
1.0 |
37.1 |
0.30 |
1.4 |
1.6 |
|
0.75 |
19 |
0.24 |
1.20 |
24.7 |
0.35 |
1.7 |
1.9 |
|
1.0 |
19 |
0.26 |
1.35 |
18.5 |
0.38 |
1.9 |
2.1 |
|
1.5 |
30 |
0.26 |
1.7 |
12.7 |
0.35 |
2.2 |
2.4 |
|
2.5 |
50 |
0.26 |
2.2 |
7.6 |
0.40 |
2.7 |
3.0 |
|
4.0 |
56 |
0.31 |
2.75 |
4.7 |
0.45 |
3.4 |
3.7 |
|
6.0 |
84 |
0.31 |
3.3 |
3.1 |
0.50 |
4.0 |
4.3 |
