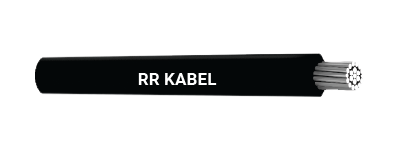

TINNED COPPER CABLES
Application
Tin plated single and multi core cable for starting, charging and instrument panel circuits in automobiles.
Standard
In accordance to ISO 6722-1
Temperature Range (3000 Hrs)
-40°C to +105°C
Cable Construction
Electrolytic annealed tinned copper as per ISO 6722-1
PVC with properties according to according to ISO 6722-1, Class B (105°C)
Packing
Available in 100 mtrs. Longer length available in spools or wooden drums.
Cable Design Parameters
|
Nominal Cross-Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Max. Overall Diameter (mm) |
Max. DC Conductor Resistance at 20°C |
|
1.0 |
32 |
0.20 |
2.1 |
19.1 |
|
1.5 |
21 |
0.30 |
2.4 |
13.0 |
|
2.5 |
35 |
0.30 |
3.0 |
7.82 |
|
4.0 |
56 |
0.30 |
3.7 |
4.85 |
|
6.0 |
84 |
0.30 |
4.3 |
3.23 |
|
10.0 |
80 |
0.40 |
6.0 |
1.85 |
