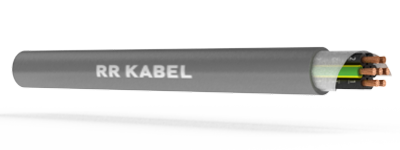

SERVO FD 85180
Application
For use in power chains or moving machine parts. Suitable for use in measuring, control and regulating circuits. Power circuits for electrical equipment used in automation engineering assembly lines, production lines and in all kinds of machines and plant engineering.
Standard
Requirement adapted to DIN VDE 0245, 0281
Technical Data
Nominal Voltage : UO / U 300 / 500V
Insulation Resistance : Min. 20 GΩ x cm
Temperature Range : Flexing -5°C to +70°C. Fixed installation -30°C to +70°C
Fixed Installtion : -50°C to +70°C
Minimum Bending Radius : Flexing 7.5 x cable ø. Fixed installation 4 x cable ø
Test Voltage : 4000V
Cable Construction
Bare copper, fine wire conductors, to EN 60228 Cl.6.
Core insulation of special PVC TI2 EN 50363-3.
Black core with continuous white numbering according to DINVDE 0293.
Green-yellow earth core in the outer layer (3 cores and above).
Non-woven wrapping.
Outer sheath of special PVC, TM2 to DIN/BS EN 50363-4.1.
Colour grey (RAL 7001).
Properties
PVC self-extinguishing and flame retardant according to EN 60332-1-2.
This cable is also a vailable with UV resistance property as SERVO FD 85810 UV
Kindly add ‘UV’ after the part no. for UV resistant cable.
UV resistant to ASTM G 154.
Cable Design Parameters
| Part Number | No. of Cores & Nominal Cross Sectional Area(Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) |
|---|---|---|---|---|
| 041200201050 | 2 x 0.5 | 5.3 | 8.7 | 39 |
| 041200311050 | 3G 0.5 | 5.7 | 13.0 | 48 |
| 041200411050 | 4G 0.5 | 6.3 | 17.4 | 60 |
| 041200511050 | 5G 0.5 | 6.8 | 21.7 | 71 |
| 041200711050 | 7G 0.5 | 8.0 | 30.4 | 99 |
| 041201211050 | 12G 0.5 | 9.5 | 52.1 | 147 |
| 041201811050 | 18G 0.5 | 11.4 | 78.1 | 214 |
| 041202511050 | 25G 0.5 | 13.7 | 108.5 | 306 |
| 041203011050 | 30G 0.5 | 14.3 | 130.2 | 344 |
| 041203411050 | 34G 0.5 | 15.6 | 147.5 | 403 |
| 041205011050 | 50G 0.5 | 18.5 | 216.9 | 574 |
| 041200201075 | 2 x 0.75 | 5.7 | 13.0 | 48 |
| 041200311075 | 3G 0.75 | 6.2 | 19.5 | 60 |
| 041200411075 | 4G 0.75 | 6.8 | 6.0 | 75 |
| 041200511075 | 5G 0.75 | 7.4 | 2.5 | 90 |
| 041200711075 | 7G 0.75 | 8.9 | 5.6 | 129 |
| 041201211075 | 12G 0.75 | 10.6 | 78.1 | 194 |
| 041201611075 | 16G 0.75 | 12.0 | 104.1 | 253 |
| 041201811075 | 18G 0.75 | 12.7 | 117.2 | 283 |
| 041202511075 | 25G 0.75 | 15.2 | 162.7 | 402 |
| 041200200001 | 2 x 1 | 6.1 | 17.4 | 57 |
| 041200310001 | 3G 1 | 6.6 | 26.0 | 72 |
| 041200410001 | 4G 1 | 7.3 | 34.7 | 90 |
| 041200510001 | 5G 1 | 8.0 | 43.4 | 110 |
| 041200710001 | 7G 1 | 9.6 | 60.7 | 157 |
| 041201210001 | 12G 1 | 11.4 | 104.1 | 237 |
| 041201410001 | 14G 1 | 12.3 | 121.5 | 276 |
| 041201610001 | 16G 1 | 13.0 | 138.8 | 311 |
| 041201810001 | 18G 1 | 13.9 | 156.2 | 353 |
| 041202510001 | 25G 1 | 16.4 | 216.9 | 491 |
| 041202610001 | 26G 1 | 16.4 | 225.6 | 498 |
| 041203410001 | 34G 1 | 18.9 | 295.1 | 658 |
| 041204110001 | 41G 1 | 20.6 | 355.8 | 786 |
| 041205010001 | 50G 1 | 22.3 | 433.9 | 936 |
| 041206510001 | 65G 1 | 25.4 | 564.1 | 1215 |
| 041200201105 | 2 x 1.5 | 6.8 | 26.0 | 75 |
| 041200311105 | 3G 1.5 | 7.4 | 39.1 | 96 |
| 041200411105 | 4G 1.5 | 8.1 | 52.1 | 119 |
| 041200511105 | 5G 1.5 | 9.1 | 65.1 | 150 |
| 041200711105 | 7G 1.5 | 9.9 | 91.1 | 189 |
| 041201211105 | 12G 1.5 | 12.9 | 156.2 | 322 |
| 041201811105 | 18G 1.5 | 15.0 | 234.3 | 456 |
| 041202511105 | 25G 1.5 | 17.6 | 325.4 | 630 |
| 041202611105 | 26G 1.5 | 17.8 | 338.4 | 649 |
| 041203411105 | 34G 1.5 | 20.2 | 442.6 | 841 |
| 041204111105 | 41G 1.5 | 22.0 | 533.7 | 1006 |
| 041204211105 | 42G 1.5 | 22.0 | 546.7 | 1017 |
| 041205011105 | 50G 1.5 | 24.0 | 650.8 | 1210 |
| 041200311205 | 3G 2.5 | 9.0 | 65.1 | 148 |
| 041200411205 | 4G 2.5 | 10.0 | 86.8 | 188 |
| 041200511205 | 5G 2.5 | 11.2 | 108.5 | 235 |
| 041200711205 | 7G 2.5 | 12.5 | 151.9 | 307 |
| 041201211205 | 12G 2.5 | 16.0 | 260.3 | 513 |
| 041201411205 | 14G 2.5 | 17.2 | 303.7 | 595 |
| 041200310004 | 3G 4 | 10.6 | 104.1 | 217 |
| 041200410004 | 4G 4 | 11.7 | 138.8 | 274 |
| 041200510004 | 5G 4 | 13.1 | 173.6 | 343 |
| 041200410006 | 4G 6 | 13.9 | 208.6 | 398 |
| 041200510006 | 5G 6 | 15.5 | 260.8 | 496 |
| 041200410010 | 4G 10 | 17.6 | 358.5 | 658 |
| 041200510010 | 5G 10 | 19.6 | 448.2 | 819 |
| 041200410016 | 4G 16 | 21.0 | 565.0 | 983 |
| 041200510016 | 5G 16 | 23.6 | 706.2 | 1236 |
Note : * G = With green / yellow earth core , X = Without green / yellow earth core
