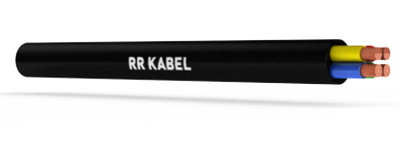

RATNAFLEX MULTICORE (IS 694)
Application
These cables are designed for residential and commercial infrastructure. They serve as the connecting medium in power and control panels, cabinets & switchgears.
for other single phase connections.
Ratnaflex -M : PVC insulated & sheathed multicore cables suitable for all general purpose wirings for max. operating temperature of 70oC.
Ratnaflex -M HR : HR PVC insulated & sheathed multicore cales suitable for higher operating temperature of 70oC.
Ratnaflex -M FR : Flame Retardant (FR) multicore cable enhances safety and are suitable for max. operating temperature 70oC.
Ratnaflex -M HRFR : Heat Resistant (HR) & Flame Retardant (FR) multicore cables are suitable for higher operating temperature up to 85oC with enhanced safety.
Ratnaflex -M FR-LSH : Flame Retardant Low Smoke Low Halogen (FR-LSH) cables are suitable for wiring in public places like schools, hospitals, theatres, etc.
Technical Data
Approvals : IS 694 marked, FIA/TAC
Conductor : Electrolytic grade annealed copper Class 5 as per IS 8130
Standard Cable Colour : Black, grey & white
Voltage Rating : Up to and including 1100V
Packing : Standard packing of 100 mtr. in coil. Longer length available on request
Variants Available
| Product Type/Legends | Specifications |
|---|---|
| RATNAFLEX-M | IS 694, IS 8130 Class 5, IS 5831 Type D for insulation & ST-3 & for sheathing |
| RATNAFLEX-M HR | IS 694, IS 8130 Class 5, IS 5831 Type C for insulation & ST-2 for sheathing |
| RATNAFLEX-M FR | IS 694, IS 8130 Class 5, IS 5831 Type D for insulation & ST-3 (FR) & for sheathing |
| RATNAFLEX-M HR FR | IS 694, IS 8130 Class 5, IS 5831 Type C for insulation & ST-2 (FR) for sheathing |
| RATNAFLEX-M FR-LSH | IS 694, IS 8130 Class 5, IS 5831 Type D for insulation & ST-3 (FR-LSH) for sheathing |
| Please complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required. | Kindly complete the part numbers for these cables by adding the suffix (in place of ‘y’) for the product type required. | Kindly complete the part numbers for these cables by adding the suffix (in place of ‘z’) for the sheath colour required. |
| 06 – green-yellow earth core. We offer green/yellow earth core as our standard product. 00 – without green-yellow earth core (available on request). | 1 – PVC 70°C, 2 – PVC FR 70°C, 3 – PVC HR 85°C, 4 – PVC HR 85°C + FR, 5 – PVC FR-LSH. | 1 – black, 4 – grey, 5 – white. |
Kindly add ‘OU’ after the part number, for the cables requred for outdoor application.
Cable Design Parameters
| Part Number | No. of Cores | Nominal Cross Sectional Area(Sq. mm) | Nominal Insulation Thickness (mm) | Max. D.C. Conductor Resistance at 20°C(?/km) | Nominal Thickness of Sheath | Maximum Overall Dimensions (mm) |
|---|---|---|---|---|---|---|
| 03010101xxyz | 1 | 0.5 | 0.60 | 39.0 | 0.9 | 4.3 |
| 03010102xxyz | 2 | 0.5 | 0.60 | 39.0 | 0.9 | 6.9 |
| 03010103xxyz | 3 | 0.5 | 0.60 | 39.0 | 0.9 | 7.3 |
| 03010104xxyz | 4 | 0.5 | 0.60 | 39.0 | 0.9 | 8.0 |
| 03010105xxyz | 5 | 0.5 | 0.60 | 39.0 | 0.9 | 8.7 |
| 03010106xxyz | 1 | 0.75 | 0.60 | 26.0 | 0.9 | 4.5 |
| 03010107xxyz | 2 | 0.75 | 0.60 | 26.0 | 0.9 | 7.3 |
| 03010108xxyz | 3 | 0.75 | 0.60 | 26.0 | 0.9 | 7.7 |
| 03010109xxyz | 4 | 0.75 | 0.60 | 26.0 | 0.9 | 8.4 |
| 03010110xxyz | 5 | 0.75 | 0.60 | 26.0 | 0.9 | 9.2 |
| 03010111xxyz | 1 | 1 | 0.60 | 19.5 | 0.9 | 4.7 |
| 03010112xxyz | 2 | 1 | 0.60 | 19.5 | 0.9 | 7.6 |
| 03010113xxyz | 3 | 1 | 0.60 | 19.5 | 0.9 | 8.1 |
| 03010114xxyz | 4 | 1 | 0.60 | 19.5 | 0.9 | 8.8 |
| 03010115xxyz | 5 | 1 | 0.60 | 19.5 | 1.0 | 9.6 |
| 03010116xxyz | 1 | 1.5 | 0.60 | 13.3 | 0.9 | 5.4 |
| 03010117xxyz | 2 | 1.5 | 0.60 | 13.3 | 0.9 | 8.9 |
| 03010118xxyz | 3 | 1.5 | 0.60 | 13.3 | 0.9 | 9.4 |
| 03010119xxyz | 4 | 1.5 | 0.60 | 13.3 | 1.0 | 10.4 |
| 03010120xxyz | 5 | 1.5 | 0.60 | 13.3 | 1.0 | 11.4 |
| 03010121xxyz | 1 | 2.5 | 0.70 | 7.98 | 1.0 | 6.2 |
| 03010122xxyz | 2 | 2.5 | 0.70 | 7.98 | 1.0 | 10.3 |
| 03010123xxyz | 3 | 2.5 | 0.70 | 7.98 | 1.0 | 10.9 |
| 03010124xxyz | 4 | 2.5 | 0.70 | 7.98 | 1.0 | 12.0 |
| 03010125xxyz | 5 | 2.5 | 0.70 | 7.98 | 1.0 | 13.2 |
| 03010126xxyz | 1 | 4 | 0.80 | 4.95 | 1.0 | 6.8 |
| 03010127xxyz | 2 | 4 | 0.80 | 4.95 | 1.0 | 11.6 |
| 03010128xxyz | 3 | 4 | 0.80 | 4.95 | 1.0 | 12.4 |
| 03010129xxyz | 4 | 4 | 0.80 | 4.95 | 1.0 | 13.6 |
| 03010130xxyz | 5 | 4 | 0.80 | 4.95 | 1.1 | 15.3 |
| 03010131xxyz | 1 | 6 | 0.80 | 3.30 | 1.1 | 7.5 |
| 03010132xxyz | 2 | 6 | 0.80 | 3.30 | 1.1 | 13.0 |
| 03010133xxyz | 3 | 6 | 0.80 | 3.30 | 1.2 | 13.8 |
| 03010134xxyz | 4 | 6 | 0.80 | 3.30 | 1.2 | 15.5 |
| 03010135xxyz | 1 | 10 | 1.00 | 1.91 | 1.3 | 9.4 |
| 03010136xxyz | 2 | 10 | 1.00 | 1.91 | 1.3 | 16.5 |
| 03010137xxyz | 3 | 10 | 1.00 | 1.91 | 1.4 | 17.7 |
| 03010138xxyz | 4 | 10 | 1.00 | 1.91 | 1.4 | 19.5 |
| 03010139xxyz | 1 | 16 | 1.00 | 1.21 | 1.4 | 10.9 |
| 03010140xxyz | 2 | 16 | 1.00 | 1.21 | 1.4 | 19.4 |
| 03010141xxyz | 3 | 16 | 1.00 | 1.21 | 1.4 | 20.6 |
| 03010142xxyz | 4 | 16 | 1.00 | 1.21 | 1.4 | 23.0 |
| 03010143xxyz | 1 | 25 | 1.20 | 0.780 | 1.4 | 13.6 |
| 03010144xxyz | 2 | 25 | 1.20 | 0.780 | 1.4 | 23.8 |
| 03010145xxyz | 3 | 25 | 1.20 | 0.780 | 1.5 | 25.6 |
| 03010146xxyz | 4 | 25 | 1.20 | 0.780 | 1.6 | 28.5 |
| 03010147xxyz | 1 | 35 | 1.20 | 0.554 | 1.6 | 15.5 |
| 03010148xxyz | 2 | 35 | 1.20 | 0.554 | 1.6 | 27.2 |
| 03010149xxyz | 3 | 35 | 1.20 | 0.554 | 1.6 | 29.3 |
| 03010150xxyz | 4 | 35 | 1.20 | 0.554 | 1.7 | 32.7 |
| 03010151xxyz | 1 | 50 | 1.40 | 0.386 | 2.0 | 18.1 |
| 03010152xxyz | 2 | 50 | 1.40 | 0.386 | 2.0 | 32.0 |
| 03010153xxyz | 3 | 50 | 1.40 | 0.386 | 2.0 | 34.6 |
| 03010154xxyz | 4 | 50 | 1.40 | 0.386 | 2.0 | 38.6 |
| 03010155xxyz | 1 | 70 | 1.40 | 0.272 | 2.2 | 20.8 |
| 03010156xxyz | 2 | 70 | 1.40 | 0.272 | 2.2 | 36.8 |
| 03010157xxyz | 3 | 70 | 1.40 | 0.272 | 2.2 | 39.6 |
| 03010158xxyz | 4 | 70 | 1.40 | 0.272 | 2.2 | 44.3 |
| 03010159xxyz | 1 | 95 | 1.60 | 0.206 | 2.4 | 23.6 |
| 03010160xxyz | 2 | 95 | 1.60 | 0.206 | 2.4 | 41.8 |
| 03010161xxyz | 3 | 95 | 1.60 | 0.206 | 2.4 | 47.0 |
| 03010162xxyz | 4 | 95 | 1.60 | 0.206 | 2.4 | 50.2 |
| 03010163xxyz | 1 | 120 | 1.60 | 0.161 | 2.5 | 26.0 |
| 03010164xxyz | 2 | 120 | 1.60 | 0.161 | 2.5 | 46.2 |
| 03010165xxyz | 3 | 120 | 1.60 | 0.161 | 2.5 | 51.0 |
| 03010166xxyz | 4 | 120 | 1.60 | 0.161 | 2.5 | 55.7 |
| 03010167xxyz | 3 | 150 | 1.80 | 0.129 | 2.6 | 54.8 |
| 03010168xxyz | 4 | 150 | 1.80 | 0.129 | 2.6 | 62.1 |
| 03010169xxyz | 3 | 185 | 2.00 | 0.106 | 2.8 | 61.2 |
| 03010170xxyz | 4 | 185 | 2.00 | 0.106 | 2.8 | 68.5 |
| 03010171xxyz | 3 | 240 | 2.20 | 0.0801 | 3.0 | 69.7 |
| 03010172xxyz | 4 | 240 | 2.20 | 0.0801 | 3.0 | 77.9 |
| 03010173xxyz | 3 | 300 | 2.40 | 0.0641 | 3.2 | 75.7 |
| 03010174xxyz | 4 | 300 | 2.40 | 0.0641 | 3.2 | 84.4 |
