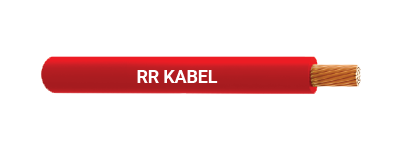

AVSS
Application
These are ultra thin wall auto cables ideal for use in automotives.
Standard
JASO D 611, JASO D 618
Temperature Range (3000 Hrs)
-40°C to +80°C
Cable Construction
Soft annealed electrolytic copper Cu-ETP1 according to JIS C 3102, bare conductor construction according to JASO D 611 PVC, insulation material accordingly to JASO D 611
Packing
Available in 100 mtrs. Longer length available in spools.
Cable Design Parameters
|
Nom. Cross-Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Max. Conductor Diameter (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) |
Standard Insulation Thickness (mm) |
Overall Diameter (mm) |
Approx. Weight (Kg/Km) |
|
|
Max. |
Tolerance |
|||||||
|
0.3 |
7 |
0.26 |
0.8 |
50.2 |
0.30 |
1.5 |
-0.1 |
5.0 |
|
0.5 |
7 |
0.32 |
1.0 |
32.7 |
0.30 |
1.7 |
-0.1 |
7.0 |
|
0.85 |
19 |
0.24 |
1.2 |
21.7 |
0.30 |
1.9 |
-0.1 |
10.0 |
|
1.25 |
19 |
0.29 |
1.5 |
14.9 |
0.30 |
2.2 |
-0.1 |
14.0 |
|
0.3f* |
19 |
0.16 |
0.8 |
48.9 |
0.30 |
1.5 |
-0.1 |
5.0 |
|
0.5f* |
19 |
0.19 |
1.0 |
34.6 |
0.30 |
1.7 |
-0.1 |
7.0 |
|
0.75f* |
19 |
0.23 |
1.2 |
23.6 |
0.30 |
1.9 |
-0.1 |
10.0 |
|
1.25f* |
37 |
0.21 |
1.5 |
14.6 |
0.30 |
2.2 |
-0.1 |
14.0 |
|
2f* |
37 |
0.26 |
1.8 |
9.5 |
0.40 |
2.7 |
-0.1 |
22.0 |
