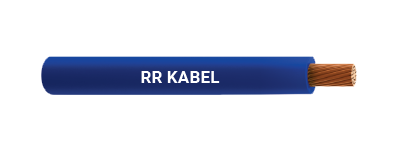

FLYW
Application
These are auto cables ideal for use in automotives with hot pressure resistance
Standard
In accordance to ISO 6722-1
Temperature Range (3000 Hrs)
-40°C to +125°C
Cable Construction
Soft annealed electrolytic copper Cu-ETP1 according to DIN EN 13602, bare conductor construction according to ISO 6722-1 Soft PVC insulation with properties according to ISO 6722-1, Class C
Packing
Available in 100 mtrs. Longer length available in spools or wooden drums.
Special Properties
Hot pressure resistance test at 120°C. Suitable for applications inside the engine compartment.
Cable Design Parameters
|
Nom. Cross-Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Max. Conductor Diameter (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) |
Nominal Insulation Thickness (mm) |
Overall Diameter (mm) |
Approx. Weight (Kg/Km) |
|
|
Max. |
Tolerance |
|||||||
|
0.5 |
16 |
0.21 |
1.0 |
37.1 |
0.6 |
|
8.0 |
|
|
2.3 |
-0.3 |
|||||||
|
0.75 |
24 |
0.21 |
1.2 |
24.7 |
0.6 |
2.5 |
-0.3 |
11.0 |
|
1 |
32 |
0.21 |
1.35 |
18.5 |
0.6 |
2.7 |
-0.3 |
14.0 |
|
1.25* |
16 |
0.33 |
1.7 |
14.9 |
0.6 |
2.95 |
-0.55 |
14.0 |
|
1.5 |
30 |
0.26 |
1.7 |
12.7 |
0.6 |
3.0 |
-0.3 |
19.0 |
|
2 |
28 |
0.31 |
2.0 |
9.42 |
0.6 |
3.3 |
-0.3 |
25.0 |
|
2.5 |
50 |
0.26 |
2.2 |
7.6 |
0.7 |
3.6 |
-0.3 |
31.0 |
|
3 |
60 |
0.26 |
2.4 |
6.0 |
0.7 |
4.1 |
-0.3 |
37.0 |
|
4 |
56 |
0.31 |
2.75 |
4.71 |
0.8 |
4.4 |
-0.4 |
47.0 |
|
5 |
65 |
0.33 |
3.1 |
3.94 |
0.8 |
4.9 |
-0.4 |
58.0 |
|
6 |
84 |
0.31 |
3.3 |
3.14 |
0.8 |
5.0 |
-0.4 |
68.0 |
|
8* |
50 |
0.46 |
4.3 |
2.38 |
0.8 |
5.9 |
-0.9 |
88.0 |
|
10 |
80 |
0.41 |
4.5 |
1.82 |
1.0 |
6.5 |
-0.5 |
111.0 |
|
12** |
96 |
0.41 |
5.4 |
1.52 |
1.0 |
7.4 |
-0.8 |
142.0 |
|
16 |
126 |
0.41 |
6.3 |
1.16 |
1.0 |
8.3 |
-0.6 |
179.0 |
|
20** |
152 |
0.41 |
6.9 |
0.955 |
1.1 |
9.1 |
-1.0 |
218.0 |
|
25 |
196 |
0.41 |
7.8 |
0.743 |
1.3 |
10.4 |
-1.0 |
278.0 |
