PROcess FIeld BUS
Application
PROcess FIeld BUS is a standard for fieldbus communication in automation technology.
PROcess FIeld BUS links controller or control systems with decentralized field devices (sensors and actuators) via a single bus cable on the field level. It also enables consistent data exchange with higher ranking communication systems. Consistency of PROcess FIeld BUS is enabled by utilizing a single, standardized, application-independent communication protocol (named PROcess FIeld BUS DP), which, without any difference, supports fieldbus solutions both in factory and process automation as well as in motion control and safety-related tasks.
To ensure correct interaction between the numerous devices of an automation solution, the basic device functions and services must match in regard to communication, functionality and industry sector solutions. This uniformity is achieved by means of "application profiles" which refer to device families or special industry sector requirements, e.g. process automation (PA Devices), Motion Control (PROFIdrive) or integration of HART devices.
PROcess FIeld BUS DP is in the central position and carries communication data between a controller and field devices, preferably in Factory Automation (FA). PROcess FIeld BUS PA string is connected through a coupler or linking device to enable typical process automation (PA) applications, e.g. in a hazardous environments. The controller is connected to PROcess FIeld NET as system bus and interface to MES and ERP levels. PA segments can also be connected directly to PROcess FIeld NET using proxy technology.
Standard
Adapted to DIN 19245 & EN 50170
Technical Data
opreting Voltage : 250V (not for power installation)
Insulation Resistance : 5000 G x cm
Temperature Range : Flexing 12 x cable ø Fixed 6 x cable ø
Minimum Bending Radius : Flexing 12 x cable ø / Fixed installation 6 x cable ø
Test Voltage : 1500V
Flame Retardant : Complies to IEC 60332-1-2
Cable Design Parameters
| Variants | Size | Configuration | Construction | Application | Sheath Colour | Approx.Cable Dia. (mm) |
|---|---|---|---|---|---|---|

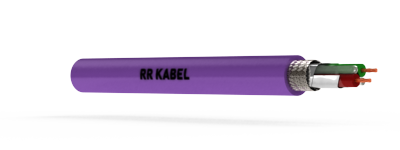

| 02Y(St)CY DP | 22 AWG x 1PR (0.32 Sq. mm) | 1/0.64 mm | ABC solid/Foam PE/PETP/AL. Mylar/ATC Braid 65%/PVC Outer sheath | Fixed installation, indoor usage | Violet | 8.0 |
| 02Y(St) C11Y DP | 22 AWG x 1PR (0.32 Sq. mm) | 1/0.64 mm | ABC solid/Foam PE/PETP/AL. Mylar/ATC Braid 65%/PUR Outer sheath | Fixed installation, Industrial Area | Black | 8.0 |
| 02Y(St)CY DP Armoured | 22 AWG x 1PR (0.32 Sq. mm) | 1/0.64 mm | ABC solid/Foam PE/PETP/AL. Mylar/ATC Braid 65%/PVC Inner sheath/GI armour wires/PVC Outer sheath | Direct Burial | Black (Outer); Inner (Violet) | 13.0 |
| 02Y(St)CY PA Solid | 18 AWG x 1PR (0.8 Sq. mm) | 1/1.02 mm (1/18 AWG) | ABC solid/Foam PE/PETP/AL. Mylar/ATC Braid 65%/PVC Outer sheath | Fixed installation, indoor usage | Blue | 9.2 |
| 02Y(St)CY PA Armoured | 18 AWG x 1PR (0.8 Sq. mm) | 1/1.02 mm (1/18 AWG) | ABC solid/Foam PE/PETP/AL. Mylar/ ATC Braid 65%/PVC Inner sheath/ GI armour wires/PVC Outer sheath | Direct Burial | Black (Outer); Inner (Blue) | 14.0 |
Electrical Parameters
PROcess FIeld BUS DP :
Conductor Resistance (Loop) at 20°C : 110 /km (Max.)
Mutual Capacitance : 35 nf/km (Max.)
Inductance : 0.65 mH/km (Nom.)
| Frequency | Characteristic Impedance (Ω) | Attenuation (dB/100m) |
|---|---|---|
| 9.6 kHz | 270 ± 27 | ≤ 0.25 |
| 38.4 kHz | 185 ± 18.5 | ≤ 0.40 |
| 4 MHz | 150 ± 15 | ≤ 2.2 |
| 16 MHz | 150 ± 15 | ≤ 4.2 |
PROcess FIeld BUS PA :
Conductor Resistance (Loop) at 20°C : 44 /km (Max.)
Mutual Capacitance : 55 nf/km (Max.)
Characteristic Impedance @ 31.25 kHz : 100 ± 15
Attenuation @ 39 Khz : ≤ 3 dB/km
Inductance : 0.65 mH/km (Nom.)
| Baud Rate (kbit/s) | Segment Length (Meters) | Segment Length (Feet) |
|---|---|---|
| 9.6 | 1200 | 3940 |
| 19.2 | 1200 | 3940 |
| 45.45 | 1200 | 3940 |
| 93.75 | 1200 | 3940 |
| 187.5 | 1000 | 3280 |
| 500 | 400 | 1310 |
| 1500 | 200 | 656 |
| 3000 | 100 | 328 |
| 6000 | 100 | 328 |
| 12000 | 100 | 328 |
More Variants Available
PROcess FIeld BUS DP and PA for flexible applications
PROcess FIeld BUS DP and PA with steel braid
Halogen free variant with Low Smoke Zero Halogen (LSZH) outer sheath.
Note :
HART = Highway Addressable Remote Transducer DP = Decentralized Peripherals
PA = Process Automation
