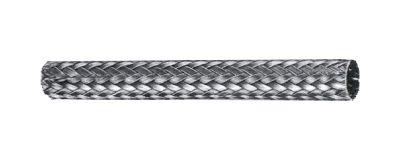

COPPER EARTHING BRAIDS
Application
Tubular braids are used for covering and shielding. They protect the cables and electrical conductors against interferences and to realize a safe data transfer.
Material
Annealed electrolytic grade copper wire. Wire Dia - 0.16 to 0.3 mm
Surface
Plain copper or Tinned
Test Voltage
3000 V
Packing
Available in wooden drums.
Special Properties
Acid Resistance Test: In sulphuric acid of specific gravity 1.28 at a temperature of 160°C to 210°C and check the cable after 60 hrs.
No effect on insulation. Insulation free from deformation and shrinkage
Chemical Resistance: Resistant to ozone, acids, solvents, detergents, vaseline and oils.
Tubular Braids
|
Cross-Section (mm²) |
No. of Wires |
Strand Diameter (mm) |
Width (mm) |
Thickness (mm) |
|
7.90 |
36 X 7 |
0.2 |
8.5 |
25 |
|
10.20 |
36 X 9 |
0.2 |
10 |
27 |
|
12.45 |
36 X 11 |
0.2 |
12 |
29 |
|
35.80 |
36 X 14 |
0.3 |
25 |
70 |
|
51.10 |
48 X 15 |
0.3 |
25 |
90 |
Tinned Copper Earthing Braids
|
Cross-Section (mm²) |
No. of Wires |
Strand Diameter (mm) |
Width (mm) |
|
19 |
16 X 16 |
0.3 |
7.20 |
|
37 |
16 X 32 |
0.3 |
11.1 |
