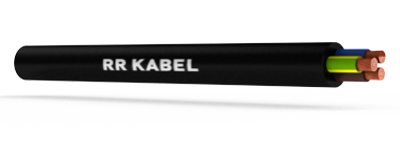

H03/H05VVH2-F & H03/H05VV-F
Application
For use in connections of household appliances, plant and machinery, wiring purposes and for manufacturing cords.
Standard
BS EN 50525-2-11, DIN EN 50525-2-11; VDE 0285-525-2-11, EN 50525-2-11.
Technical Data
Nominal Voltage : 300/500V (H05VV-F & H05VVH2-F); 300/300V (H03VV-F & H03VVH2-F)
Insulation Resistance : Min. 20 GΩ x cm
Temperature Range : Flexing -5°C to +70°C. Fixed Installation : -30°C to +70°C
Minimum Bending Radius: Flexing 7.5 x cable ø; Fixed installation 4 x cable ø
Test Voltage : 4000V
Breakdown Voltage : Min. 8000V
Cable Construction
Bare copper, fine wire conductors, as per EN 60228 Cl.5. PVC core insulation TI2, to EN 50363-3.
Harmonised core colour to HD 308 (Refer Appendix Table No. 1-1). Cores stranded in layers with optimal lay-length.
PVC outer sheath TM2, to EN 50363-4.1.
H05VV-F is also available in oil resistant variant as H05VV5-F.
The outer sheath provided here is of special PVC, TM5 to BS EN 50363-4.1.
Properties
PVC self-extinguishing and flame retardant according to EN 60332-1-2.
Please complete the part numbers for these cables by adding the suffix (in place of 'z') for the sheath colour required :
1 - black (RAL 9005), 3 - grey (RAL 7001), 5 - white (RAL 9010). For Oil Resistant sheath kindly add 'OR' after the part nos.
Cable Design Parameters
| Part Number | No. of Cores and Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | ||
|---|---|---|---|---|
|
H03VV-F |
||||
| 03030101021z | 2 x 0.5 | 5.1 | ||
| 03030102021z | 2 x 0.75 | 5.5 | ||
| 03030103021z | 3 x 0.5 | 5.3 | ||
| 03030104011z | 3 G 0.5 | 5.3 | ||
| 03030105021z | 3 x 0.75 | 5.7 | ||
| 03030106011z | 3 G 0.75 | 5.7 | ||
| 03030107021z | 4 x 0.5 | 5.8 | ||
|
|
||||
| 03030109021z | 4 x 0.75 | 6.3 | ||
| 03030110011z | 4 G 0.75 | 6.3 | ||
|
H03VVH2-F |
03031111021z | 2 x 0.5 | 5.1 x 3.2 | |
| 03031112021z | 2 x 0.75 | 5.5 x 3.4 | ||
|
H05VVH2-F |
03031113021z | 2 x 0.75 | 6.3 x 4.0 | |
| 03031114021z | 2 x 1 | 6.6 x 4.1 | ||
| 03031115021z | 2 x 1.5 | 7.7 x 4.7 | ||
|
H05VV-F |
03030116021z | 2 x 0.75 | 6.2 | |
| 03030117021z | 2 x 1 | 6.4 | ||
| 03030118021z | 2 x 1.5 | 7.5 | ||
| 03030119021z | 2 x 2.5 | 9.1 | ||
| 03030120021z | 2 x 4 | 10.3 | ||
| 03030121011z | 3 G 0.75 | 6.6 | ||
| 03030122021z | 3 x 0.75 | 6.6 | ||
| 03030123011z | 3 G 1 | 6.9 | ||
| 03030124021z | 3 x 1 | 6.9 | ||
| 03030125011z | 3 G 1.5 | 8.1 | ||
| 03030126021z | 3 x 1.5 | 8.1 | ||
| 03030127011z | 3 G 2.5 | 9.7 | ||
| 03030128021z | 3 x 2.5 | 9.7 | ||
| 03030129011z | 3 G 4 | 11.2 | ||
| 03030130021z | 3 x 4 | 11.2 | ||
| 03030131011z | 4 G 0.75 | 7.1 | ||
| 03030132021z | 4 x 0.75 | 7.1 | ||
| 03030133011z | 4 G 1 | 7.5 | ||
| 03030134021z | 4 x 1 | 7.5 | ||
| 03030135011z | 4 G 1.5 | 9.1 | ||
| 03030136021z | 4 x 1.5 | 9.1 | ||
| 03030137011z | 4 G 2.5 | 10.7 | ||
| 03030138021z | 4 x 2.5 | 10.7 | ||
| 03030139011z | 4 G 4 | 12.2 | ||
| 03030140021z | 4 x 4 | 12.2 | ||
| 03030141011z | 5 G 0.75 | 8.0 | ||
| 03030142021z | 5 x 0.75 | 8.0 | ||
| 03030143011z | 5 G 1 | 8.4 | ||
| 03030144021z | 5 x 1 | 8.4 | ||
|
|
||||
| 03030146021z | 5 x 1.5 | 10.2 | ||
| 03030147011z | 5 G 2.5 | 12.0 | ||
| 03030148021z | 5 x 2.5 | 12.0 | ||
| 03030149011z | 5 G 4 | 13.8 | ||
| 03030150021z | 5 x 4 | 13.8 |
Note : *G = With green / yellow earth core , X = Without green/yellow earth core
| Cable Type | Size Range | ||
|---|---|---|---|
| BASEC | VDE | ||
| H03VVH2-F | – | 0.50…0.75 mm² x 2C | |
| H05VVH2-F | 0.75 . . . . 1.5 mm² x 2C | 0.75…1 mm² x 2C | |
| H05VV-F | 0.75…4 mm² x 2…5C | 0.75…4 mm² x 2…5C | |
