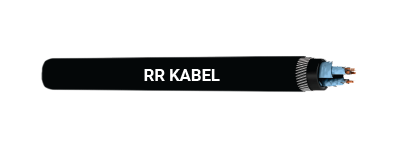

RE-Y(St)YSWAY PiMF – MULTI-PAIR
Standard
Adapted to EN 50288-7
Cable Construction
Conductor : Annealed copper wires according to BS EN 60228
Insulation : Polyvinyl chloride PVC
Pairs : Twisted
Identification Pairs : Black & white, continuously numbered on white core (1, 2, 3…) for multi-element
Individual Screen : 1 layer of PETP tape
Collective Screen : Aluminium / PETP tape over tinned copper drain wire, plastic tape under and above screen
Assembly : Concentric layers
Inner Sheath : Polyvinyl chloride PVC
Armour : Galvanised round steel wires
Cable Sheath : Polyvinyl chloride PVC
Colour : Black. Blue for intrinsically safe system
Technical Data
Flame Propagation : EN 60332-1-2
Operating Temperature Range : -30°C to +70°C Bending Radius: 10 x cable diameter
Bending Radius : 10 x cable diameter
Operating Voltage : 500V
*Also available in 300V variant on request.
Marking : RR KABEL RE-2X(St)Y PiMF nxmxa 500V EN50288-7 CE + 0001m
n - No. of pairs
m - Pairs
a - Cross sectional area
Electrical Properties
| Conductor Cross Section (Sq.mm) | Class of Conductor | No. of Strands/Max. Strand Diameter (mm) | Max. DC Conductor Resistance* at 20°C (Ω/km) | Max.L/R Ratio (μH/Ω) | Min. Insulation Resistance (GΩ x cm) | Max. Mutual Capacitance (nF/km) | Max.Inductance (mH/km) | Test Voltage Vrms (Core-Core) | Test Voltage Vrms (Core-Screen) |
|---|---|---|---|---|---|---|---|---|---|
| 0.5 | 2 | 7/0.3 | 36.0 | 25 | 20 | 250 | 1 | 2000 | 2000 |
| 0.5 | 5 | 16/0.2 | 39.0 | 25 | 20 | 250 | 1 | 2000 | 2000 |
| 0.75 | 2 | 7/0.37 | 24.5 | 25 | 20 | 250 | 1 | 2000 | 2000 |
| 0.75 | 5 | 24/0.2 | 26.0 | 25 | 20 | 250 | 1 | 2000 | 2000 |
| 1 | 2 | 7/0.43 | 18.1 | 25 | 20 | 250 | 1 | 2000 | 2000 |
| 1 | 5 | 32/0.2 | 19.5 | 25 | 20 | 250 | 1 | 2000 | 2000 |
| 1.5 | 2 | 7/0.53 | 12.1 | 40 | 20 | 250 | 1 | 2000 | 2000 |
| 2.5 | 2 | 7/0.67 | 7.41 | 60 | 20 | 250 | 1 | 2000 | 2000 |
*For multi-pair maximum resistance shall be increased by 2%.
Cable Design Parameters
| Part Number | No. of Pairs and Nom. Cross Sectional Area (Sq. mm) | Min. Insulation Thickness (mm) | Nominal Inner Sheath Thickness (mm) | Approx. Dia.Over Inner Sheath (mm) | Nominal Dia. of Armour Wire(mm) | Nominal Outer Sheath Thickness (mm) | Approx. Cable Diameter (mm) | Approx. Cable Weight (kg/km) | |
|---|---|---|---|---|---|---|---|---|---|
| Class 5 Conductor | 070650221050 | 2 x 2 x 0.5 | 0.44 | 1 | 8.0 | 0.9 | 1.5 | 12.8 | 277.9 |
| 070650321050 | 3 x 2 x 0.5 | 0.44 | 1 | 9.5 | 0.9 | 1.5 | 14.3 | 337.6 | |
| 070650421050 | 4 x 2 x 0.5 | 0.44 | 1 | 10.7 | 0.9 | 1.5 | 15.6 | 392.2 | |
| 070650521050 | 5 x 2 x 0.5 | 0.44 | 1 | 11.8 | 0.9 | 1.6 | 16.8 | 443.6 | |
| 070650821050 | 8 x 2 x 0.5 | 0.44 | 1 | 14.7 | 0.9 | 1.7 | 19.8 | 585.9 | |
| 070651021050 | 10 x 2 x 0.5 | 0.44 | 1 | 16.4 | 1.25 | 1.7 | 22.3 | 780.5 | |
| 070651221050 | 12 x 2 x 0.5 | 0.44 | 1 | 17.9 | 1.25 | 1.8 | 24.0 | 875.9 | |
| 070651621050 | 16 x 2 x 0.5 | 0.44 | 1 | 20.8 | 1.25 | 1.9 | 27.0 | 1058.7 | |
| 070652021050 | 20 x 2 x 0.5 | 0.44 | 1 | 23.4 | 1.25 | 1.9 | 29.7 | 1235.1 | |
| 070652421050 | 24 x 2 x 0.5 | 0.44 | 1 | 25.8 | 1.6 | 2.0 | 33.1 | 1569.3 | |
| 070650221075 | 2 x 2 x 0.75 | 0.44 | 1 | 8.6 | 0.9 | 1.5 | 13.3 | 304.8 | |
| 070650321075 | 3 x 2 x 0.75 | 0.44 | 1 | 10.1 | 0.9 | 1.5 | 15.0 | 374.2 | |
| 070650421075 | 4 x 2 x 0.75 | 0.44 | 1 | 11.4 | 0.9 | 1.6 | 16.4 | 437.9 | |
| 070650521075 | 5 x 2 x 0.75 | 0.44 | 1 | 12.6 | 0.9 | 1.6 | 17.6 | 498.0 | |
| 070650821075 | 8 x 2 x 0.75 | 0.44 | 1 | 15.7 | 1.25 | 1.7 | 21.6 | 766.9 | |
| 070651021075 | 10 x 2 x 0.75 | 0.44 | 1 | 17.5 | 1.25 | 1.8 | 23.5 | 883.8 | |
| 070651221075 | 12 x 2 x 0.75 | 0.44 | 1 | 19.2 | 1.25 | 1.8 | 25.3 | 995.9 | |
| 070651621075 | 16 x 2 x 0.75 | 0.44 | 1 | 22.2 | 1.25 | 1.9 | 28.5 | 1211.3 | |
| 070652021075 | 20 x 2 x 0.75 | 0.44 | 1 | 25.0 | 1.25 | 2.0 | 31.5 | 1420.1 | |
| 070652421075 | 24 x 2 x 0.75 | 0.44 | 1.2 | 28.0 | 1.6 | 2.1 | 35.4 | 1840.1 | |
| 070650220001 | 2 x 2 x 1 | 0.44 | 1 | 8.9 | 0.9 | 1.5 | 13.7 | 327.3 | |
| 070650320001 | 3 x 2 x 1 | 0.44 | 1 | 10.6 | 0.9 | 1.5 | 15.5 | 404.9 | |
| 070650420001 | 4 x 2 x 1 | 0.44 | 1 | 12.0 | 0.9 | 1.6 | 16.9 | 476.5 | |
| 070650520001 | 5 x 2 x 1 | 0.44 | 1 | 13.2 | 0.9 | 1.6 | 18.3 | 544.4 | |
| 070650820001 | 8 x 2 x 1 | 0.44 | 1 | 16.5 | 1.25 | 1.7 | 22.4 | 840.3 | |
| 070651020001 | 10 x 2 x 1 | 0.44 | 1 | 18.4 | 1.25 | 1.8 | 24.4 | 972.4 | |
| 070651220001 | 12 x 2 x 1 | 0.44 | 1 | 20.1 | 1.25 | 1.8 | 26.3 | 1099.3 | |
| 070651620001 | 16 x 2 x 1 | 0.44 | 1 | 23.3 | 1.25 | 1.9 | 29.7 | 1343.6 | |
| 070652020001 | 20 x 2 x 1 | 0.44 | 1 | 26.3 | 1.6 | 2.0 | 33.5 | 1747.4 | |
| 070652420001 | 24 x 2 x 1 | 0.44 | 1.2 | 29.4 | 1.6 | 2.1 | 36.8 | 2039.0 | |
| Class 2 Conductor | 070620221050 | 2 x 2 x 0.5 | 0.44 | 1 | 8.0 | 0.9 | 1.5 | 12.8 | 277.6 |
| 070620321050 | 3 x 2 x 0.5 | 0.44 | 1 | 9.5 | 0.9 | 1.5 | 14.3 | 337.2 | |
| 070620421050 | 4 x 2 x 0.5 | 0.44 | 1 | 10.7 | 0.9 | 1.5 | 15.6 | 391.7 | |
| 070620521050 | 5 x 2 x 0.5 | 0.44 | 1 | 11.8 | 0.9 | 1.6 | 16.8 | 442.9 | |
| 070620821050 | 8 x 2 x 0.5 | 0.44 | 1 | 14.7 | 0.9 | 1.7 | 19.8 | 584.9 | |
| 070621021050 | 10 x 2 x 0.5 | 0.44 | 1 | 16.4 | 1.25 | 1.7 | 22.3 | 779.2 | |
| 070621221050 | 12 x 2 x 0.5 | 0.44 | 1 | 17.9 | 1.25 | 1.8 | 24.0 | 874.4 | |
| 070621621050 | 16 x 2 x 0.5 | 0.44 | 1 | 20.8 | 1.25 | 1.9 | 27.0 | 1056.7 | |
| 070622021050 | 20 x 2 x 0.5 | 0.44 | 1 | 23.4 | 1.25 | 1.9 | 29.7 | 1232.6 | |
| 070622421050 | 24 x 2 x 0.5 | 0.44 | 1 | 25.8 | 1.6 | 2.0 | 33.1 | 1566.3 | |
| 070620221075 | 2 x 2 x 0.75 | 0.44 | 1 | 8.6 | 0.9 | 1.5 | 13.4 | 305.3 | |
| 070620321075 | 3 x 2 x 0.75 | 0.44 | 1 | 10.1 | 0.9 | 1.5 | 15.0 | 374.7 | |
| 070620421075 | 4 x 2 x 0.75 | 0.44 | 1 | 11.4 | 0.9 | 1.6 | 16.4 | 438.5 | |
| 070620521075 | 5 x 2 x 0.75 | 0.44 | 1 | 12.6 | 0.9 | 1.6 | 17.7 | 498.8 | |
| 070620821075 | 8 x 2 x 0.75 | 0.44 | 1 | 15.7 | 1.25 | 1.7 | 21.7 | 768.1 | |
| 070621021075 | 10 x 2 x 0.75 | 0.44 | 1 | 17.6 | 1.25 | 1.8 | 23.6 | 885.2 | |
| 070621221075 | 12 x 2 x 0.75 | 0.44 | 1 | 19.2 | 1.25 | 1.8 | 25.3 | 997.5 | |
| 070621621075 | 16 x 2 x 0.75 | 0.44 | 1 | 22.3 | 1.25 | 1.9 | 28.6 | 1213.2 | |
| 070622021075 | 20 x 2 x 0.75 | 0.44 | 1 | 25.1 | 1.6 | 2.0 | 32.3 | 1581.2 | |
| 070622421075 | 24 x 2 x 0.75 | 0.44 | 1.2 | 28.1 | 1.6 | 2.1 | 35.4 | 1842.9 | |
| 070620220001 | 2 x 2 x 1 | 0.44 | 1 | 9.1 | 0.9 | 1.5 | 13.9 | 332.0 | |
| 070620320001 | 3 x 2 x 1 | 0.44 | 1 | 10.7 | 0.9 | 1.6 | 15.6 | 411.1 | |
| 070620420001 | 4 x 2 x 1 | 0.44 | 1 | 12.2 | 0.9 | 1.6 | 17.1 | 484.1 | |
| 070620520001 | 5 x 2 x 1 | 0.44 | 1 | 13.4 | 0.9 | 1.6 | 18.5 | 553.2 | |
| 070620820001 | 8 x 2 x 1 | 0.44 | 1 | 16.7 | 1.25 | 1.7 | 22.7 | 854.2 | |
| 070621020001 | 10 x 2 x 1 | 0.44 | 1 | 18.7 | 1.25 | 1.8 | 24.8 | 988.7 | |
| 070621220001 | 12 x 2 x 1 | 0.44 | 1 | 20.5 | 1.25 | 1.8 | 26.6 | 1117.8 | |
| 070621620001 | 16 x 2 x 1 | 0.44 | 1 | 23.7 | 1.25 | 1.9 | 30.1 | 1366.6 | |
| 070622020001 | 20 x 2 x 1 | 0.44 | 1 | 26.7 | 1.6 | 2.0 | 33.9 | 1777.1 | |
| 070622420001 | 24 x 2 x 1 | 0.44 | 1.2 | 29.8 | 1.6 | 2.1 | 37.3 | 2073.4 | |
| 070620221105 | 2 x 2 x 1.5 | 0.44 | 1 | 9.9 | 0.9 | 1.5 | 14.8 | 381.6 | |
| 070620321105 | 3 x 2 x 1.5 | 0.44 | 1 | 11.8 | 0.9 | 1.6 | 16.7 | 479.0 | |
| 070620421105 | 4 x 2 x 1.5 | 0.44 | 1 | 13.4 | 0.9 | 1.6 | 18.4 | 569.6 | |
| 070620521105 | 5 x 2 x 1.5 | 0.44 | 1 | 14.8 | 0.9 | 1.7 | 19.9 | 655.8 | |
| 070620821105 | 8 x 2 x 1.5 | 0.44 | 1 | 18.5 | 1.25 | 1.8 | 24.5 | 1016.7 | |
| 070621021105 | 10 x 2 x 1.5 | 0.44 | 1 | 20.6 | 1.25 | 1.8 | 26.8 | 1184.9 | |
| 070621221105 | 12 x 2 x 1.5 | 0.44 | 1 | 22.5 | 1.25 | 1.9 | 28.8 | 1346.7 | |
| 070621621105 | 16 x 2 x 1.5 | 0.44 | 1 | 26.1 | 1.6 | 2.0 | 33.4 | 1824.9 | |
| 070622021105 | 20 x 2 x 1.5 | 0.44 | 1.2 | 29.8 | 1.6 | 2.1 | 37.2 | 2195.6 | |
| 070622421105 | 24 x 2 x 1.5 | 0.44 | 1.2 | 32.8 | 1.6 | 2.2 | 40.4 | 2513.8 | |
| 070620221205 | 2 x 2 x 2.5 | 0.53 | 1 | 11.5 | 0.9 | 1.6 | 16.5 | 475.9 | |
| 070620321205 | 3 x 2 x 2.5 | 0.53 | 1 | 13.7 | 0.9 | 1.6 | 18.8 | 608.6 | |
| 070620421205 | 4 x 2 x 2.5 | 0.53 | 1 | 15.6 | 1.25 | 1.7 | 21.5 | 833.6 | |
| 070620521205 | 5 x 2 x 2.5 | 0.53 | 1 | 17.3 | 1.25 | 1.8 | 23.3 | 962.9 | |
| 070620821205 | 8 x 2 x 2.5 | 0.53 | 1 | 21.7 | 1.25 | 1.9 | 27.9 | 1327.1 | |
| 070621021205 | 10 x 2 x 2.5 | 0.53 | 1 | 24.2 | 1.25 | 1.9 | 30.6 | 1559.7 | |
| 070621221205 | 12 x 2 x 2.5 | 0.53 | 1 | 26.5 | 1.6 | 2.0 | 33.7 | 1951.8 | |
| 070621621205 | 16 x 2 x 2.5 | 0.53 | 1.2 | 31.1 | 1.6 | 2.2 | 38.6 | 2459.9 | |
| 070622021205 | 20 x 2 x 2.5 | 0.53 | 1.2 | 34.8 | 1.6 | 2.3 | 42.6 | 2915.1 | |
| 070622421205 | 24 x 2 x 2.5 | 0.53 | 1.2 | 38.3 | 2.0 | 2.4 | 47.1 | 3631.3 |
