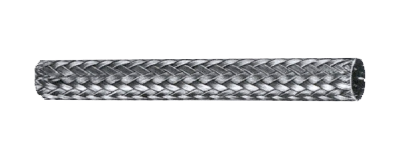

TUBULAR BRAIDS
Application
Tubular braids are used for covering and shielding. They protect the cables and electrical conductors against interference and to realize a safe data transfer.
Cable Construction
Surface : Plain copper or Tinned.
Technical Data
Material :
Annealed electrolytic grade copper wire.
Wire Diameter – 0.16 to 0.3 mm.
Packing : In rings or spools or wooden drums.
Cable Design Parameters
Kindly complete the part numbers by adding the suffix (in place of ‘c’) for the conductor type required: 0 = Plain/Bare Copper, 1 = Tinned Copper.
| Part Number | Nominal Cross-Sectional Area (Sq. mm) | No. of Wires | Strand Diameter (mm) | Width (mm) | Thickness (mm) |
|---|---|---|---|---|---|
| 12100101000c | 7.90 | 36 X 7 | 0.2 | 8.5 | 25 |
| 12100102000c | 10.20 | 36 X 9 | 0.2 | 10 | 27 |
| 12100103000c | 12.45 | 36 X 11 | 0.2 | 12 | 29 |
| 12100104000c | 35.80 | 36 X 14 | 0.3 | 25 | 70 |
| 12100105000c | 51.10 | 48 X 15 | 0.3 | 25 | 90 |
