POWER CORDS & HARNESS

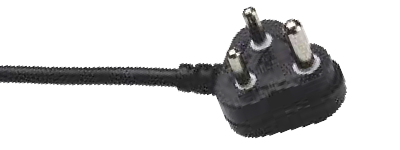

Moulded 3 Pin Cords
We provide a wide assortment of non rewireable moulded cords. Our range offers efficient performance and durability for rugged use. These cords are tested for conformity to required standards. We can offer these cords in various sizes and specifications. These are extensively used in electronic industry, especially in TV, video games, DVD player, voltage stabiliser, heat convector, water immersions rods, instant water heaters and others electrical & electronic Home Appliances.
Moulded Two Pin Plug
We also produce a wide range of two pin plugs for various applications. These cords have a wide usage on various domestic electrical and electronic appliances and gadgets on which earthing is not required. Customised moulding and cable selection is also offered. The standard offer is done with cable twin flat sheathed 0.5 Sq mm.
Cable Construction
The power supply cords are manufactured by using ISI marked cables. The cords are manufactured with the brass pins soldered to the cable cores. Such pins are then firstly moulded with polypropyelene which offers a high degree of dielectric strength, thereafter a final layer of coloured PVC matching to the cable jacket is moulded bearing the necessary marks and approvals. The cords for the Indian market are according to the IS 1293 approval marks.
Cable Design Parameters
3 - Pin Moulded Power Cords as per IS 1293
| Part Number | Item | No. of Cores and Nominal Cross Sectional (Sq. mm) | Current Rating (A) | Length |
|---|---|---|---|---|
| 120301010001 | Main Power Cords | 3 x 0.75 | 6/16 | Available in specific length as req. by Customer/Retail packs |
| 120301020001 | 3 x 1 | 6/16 | ||
| 120301030001 | 3 x 1.5 | 16 |
2 - Pin Flat Moulded Cords
| Part Number | Item | No. of Cores and Nominal Cross Sectional (Sq. mm) | Current Rating (A) | Length |
|---|---|---|---|---|
| 120301040001 | Main Power Cords | 2 x 0.5 | 6 | Available in specific length as req. by Customer/Retail packs |
