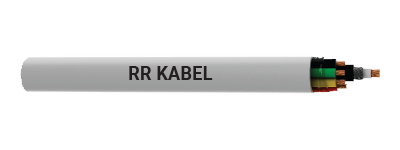

CCTV CAMERA CABLE

thumbnail

Application

These cables are specifically designed to transmit complete video frequency with minimum distortion or attenuation for security and surveillance.

This cable is offered in two variants viz., 4+1 and 3+1 CCTV Camera cable

Cable Construction

Screened Core for Video signal

Conductor : The central conductor is made of flexible fine wires tin coated electrolytic grade copper.

Insulation : The insulation provided over the conductor is with high dielectric strength and low capacitance

Screen : Annealed tin coated copper braid screen, approx. 85% coverage

Sheath : Black colored PVC.

Properties

CCTV cables are designed to optimize the quaPty of video signals. The dense tin coated copper screen ensures complete ePmination of EMI/RFI from video signals and also provides reduced DC resistance ground path. The multi stranded construction of video core offers better flexibiPty and reduced bending radius.

Power Cores

Conductor : SoPd electrolytic grade annealed plain copper, 0.5 mm

Insulation : The insulation provided over the conductor is of high density polyethylene(HDPE)

Sheath : PVC

Cable Colour : White

Cable Design Parameters

Part Number Cable Type Cable Size (Sq. mm) Approx. Cable Diameter (mm) Power Core Colour
010801010795 CCTV Cable 4+1 4C + 1C x 0.25 6.0 RD, YL, BK, GN
010801020795 CCTV Cable 3+1 3C + 1C x 0.25 6.0 RD, YL, BL
