Absolute disturbance-free data transfer both for installed terminals in all areas of medicine and data technology. Also suitable for use in machine tool and steel producing industries, traffic signal systems, assembly lines and food processing.
Based on VDE 0812
Voltage Grade (not for power installation) : Max. 250 V
Insulation Resistance : Min. 5000 GΩ x cm
Temperature Range : Flexing -5°C to +70°C.
Minimum Bending Radius : Flexing 15 x cable ø. Fixed installation 6 x cable ø
Characteristic Impedance* : approx. 85 Ω (>1 MHz)
Test Voltage : Core / core 2000 V. Core / screen 1000V
Inductance : Approx. 0.4 mH/km
Cross-talk Attenuation : Min. 80 dB up to 1 MHZ
Mutual Capacitance :
0.22 mm² max., 70 nF/km
0.34 mm² max., 70 nF/km
0.5 mm² max., 75 nF/km
1 mm² max., 85 nF/km
Bare copper stranded 7 wire conductor.
Conductor make-up for
0.22 mm² = 7 x 0.20 mm
0.34 mm² = 7 x 0.25 mm
0.5 mm² = 7 x 0.30 mm
0.75 mm² = 7 x 0.37 mm
1 mm² = 7 x 0.43 mm
Conductor Resistance (loop) at 20°C
0.22 mm² = 186 Ω/km (max.)
0.34 mm² = 115 Ω/km (max.)
0.5 mm² = 78.5 Ω/km (max.)
0.75 mm² = 58 Ω/km (max.)
1 mm² = 39.2 Ω/km (max.)
Core colours as per DIN 47100 (Refer table no. 2-1 of appendix)

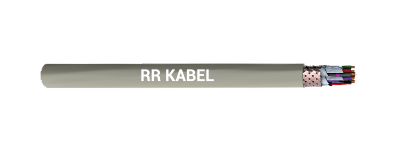

PiMF: (pair in metal foil) cores twisted in pairs, foil wrapped plastic coated aluminium foil and copper drain-wire tinned, 100% coverage.
PiMFs are stranded in layer.
Core wrapping with plastic tapes.
Overall copper screened braiding, 85 % coverage.
Special PVC outer sheath TM2, to EN 50363-4.1.
Colour grey (RAL 7032).
PVC self-extinguishing and flame retardant according to EN 60332-1-2.
The twisted-pair lay-up prevents electrical unbalances within the cable and this thus effectively suppresses cross-talking effects.
Cable Design Parameters
Part Number | No. of Pairs & Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx Cable Weight (kg/km) |
---|---|---|---|---|
50700221022 | 2 x 2 x 0.22 | 8 | 33.5 | 76 |
50700321022 | 3 x 2 x 0.22 | 8.3 | 47.8 | 96 |
50700421022 | 4 x 2 x 0.22 | 9.3 | 68.8 | 127 |
50700821022 | 8 x 2 x 0.22 | 12.4 | 191.2 | 286 |
50701021022 | 10 x 2 x 0.22 | 13.8 | 284 | 398 |
50700221034 | 2 x 2 x 0.34 | 8.5 | 44.1 | 90 |
50700321034 | 3 x 2 x 0.34 | 8.8 | 67.2 | 120 |
50700421034 | 4 x 2 x 0.34 | 9.9 | 97.5 | 161 |
50700821034 | 8 x 2 x 0.34 | 13.2 | 283.3 | 389 |
50701021034 | 10 x 2 x 0.34 | 14.7 | 421.5 | 548 |
50700221050 | 2 x 2 x 0.5 | 9 | 56.3 | 106 |
50700321050 | 3 x 2 x 0.5 | 9.3 | 88.8 | 146 |
50700421050 | 4 x 2 x 0.5 | 10.4 | 132.7 | 203 |
50700521050 | 5 x 2 x 0.5 | 11.4 | 185.7 | 268 |
50700821050 | 8 x 2 x 0.5 | 14.1 | 405.5 | 523 |
50701021050 | 10 x 2 x 0.5 | 15.6 | 591.3 | 731 |
50700220001 | 2 x 2 x 1 | 10.3 | 76.3 | 138 |
50700320001 | 3 x 2 x 1 | 10.6 | 116.1 | 187 |
50700420001 | 4 x 2 x 1 | 12 | 167.3 | 254 |
50701020001 | 10 x 2 x 1 | 17.7 | 636.3 | 808 |
