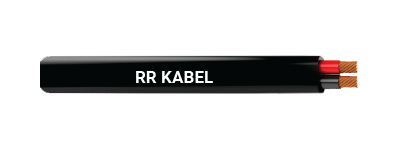

THIN WALL MULTICORE CABLES
Application
These are multicore cables used in automobile.
Standard
In accordance to ISO 6722-1
Temperature Range (3000 Hrs)
-40°C to +105°C
Cable Construction
Electrolytic plain annealed copper according to ISO 6722-1
PVC with properties according to according to ISO 6722-1, Class B (105°C). PVC Sheathed 105°C.
Packing
Available in 100 mtrs. Longer length available in spools or wooden drums
Cable Design Parameters
|
No. of Cores X Nominal Cross-Section (mm2) |
No. of Strands |
Max. Strand Conductor (mm) |
Max. Overall Diameter (mm) |
Sheath Colour |
Core Colour |
|
2x0.5 |
16 |
0.20 |
2.7 x 4.6 |
Black |
Black, Red |
|
2x0.75 |
24 |
0.20 |
3.1 x 4.9 |
||
|
2x1.0 |
32 |
0.20 |
3.0 x 5.0 |
||
|
2x1.5 |
21 |
0.30 |
3.5 x 5.8 |
||
|
2x2.0 |
28 |
0.30 |
3.9 x 6.5 |
||
|
2x2.5 |
35 |
0.30 |
3.9 x 6.7 |
||
|
2x3.0 |
44 |
0.30 |
4.3 x 7.5 |
||
|
2x4.5 |
65 |
0.30 |
5.6 x 9.4 |
