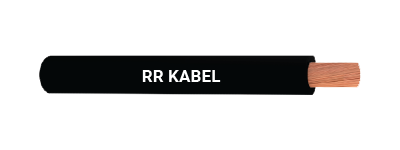

PVC BATTERY CABLE
Voltage Rating
Max. 200V
Test Voltage
1000 Volts
Temperature Range (3000 Hrs)
-30°C to +70°C
Cable Construction
Annealed Bare copper strands
For PVC battery cable - Cl. 5 to EN 60228
For Flexible PVC battery cable - Cl. 6 to EN 60228 PVC insulation over bunched conductor
Packing
Available in wooden drums.
Cable Design Parameters
|
Nominal Cross-Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Outer Diameter (max.) (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) |
|
25 |
196 |
0.40 |
9.7 |
0.780 |
|
35 |
276 |
0.40 |
12.2 |
0.554 |
|
50 |
396 |
0.40 |
13.3 |
0.386 |
|
70 |
360 |
0.50 |
14.6 |
0.272 |
Flexible Battery Cable
|
Nominal Cross-Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Outer Diameter (max.) (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) |
|
16 |
512 |
0.20 |
8.3 |
1.21 |
|
25 |
800 |
0.20 |
10.1 |
0.780 |
|
35 |
1120 |
0.20 |
11.8 |
0.554 |
|
50 |
705 |
0.30 |
13.3 |
0.386 |
|
70 |
990 |
0.30 |
15.5 |
0.272 |
|
95 |
1340 |
0.30 |
17.9 |
0.206 |
|
120 |
1690 |
0.30 |
19.7 |
0.161 |
