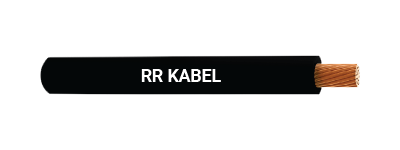

FLR13Y
Application
These are TPE-E insulated low tension automotive cables used in motor vehicles for lightings, signals and instrument panel circuits operating across wide range of extreme temperature.
Standard
In accordance to ISO 6722-1 class D
Temperature Range (3000 Hrs)
-40°C to +150°C
Cable Construction
Soft annealed electrolytic copper Cu-ETP1 according to DIN EN 13602 ,bare conductor construction acc. To ISO 6722-1 Tinned copper available on request. TPE-E (Thermoplastic Elastomer)
Packing
Packing available in 100 mtrs. Longer length available in spools.
Cable Design Parameters
|
Nom. Cross- Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Max. Conductor Diameter (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) |
Min. Insulation Thickness (mm) |
Overall Diameter |
||
|
Min. |
Max. |
|||||||
|
FLR13Y - TYPE A |
||||||||
|
0.22 |
7 |
0.21 |
0.7 |
84.8 |
0.20 |
1.1 |
1.2 |
|
|
0.35 |
7 |
0.26 |
0.8 |
54.4 |
0.20 |
1.2 |
1.3 |
|
|
0.5 |
19 |
0.19 |
1.0 |
37.5 |
0.22 |
1.4 |
1.6 |
|
|
0.75 |
19 |
0.23 |
1.2 |
24.7 |
0.24 |
1.7 |
1.9 |
|
|
1 |
19 |
0.26 |
1.35 |
18.5 |
0.24 |
1.9 |
2.1 |
|
|
1.5 |
19 |
0.32 |
1.7 |
12.7 |
0.24 |
2.2 |
2.4 |
|
|
2 |
19 |
0.37 |
2.0 |
9.42 |
0.28 |
2.5 |
2.8 |
|
|
2.5 |
19 |
0.41 |
2.2 |
7.6 |
0.28 |
2.7 |
3.0 |
|
|
FLR13Y - TYPE B |
||||||||
|
0.35 |
12 |
0.21 |
0.9 |
54.4 |
0.20 |
1.2 |
1.4 |
|
|
0.5 |
16 |
0.21 |
1.0 |
37.5 |
0.22 |
1.4 |
1.6 |
|
|
0.75 |
24 |
0.21 |
1.2 |
24.7 |
0.24 |
1.7 |
1.9 |
|
|
1 |
32 |
0.21 |
1.35 |
18.5 |
0.24 |
1.9 |
2.1 |
|
|
1.5 |
30 |
0.26 |
1.7 |
12.7 |
0.24 |
2.2 |
2.4 |
|
|
2 |
30 |
0.31 |
2.0 |
9.42 |
0.28 |
2.5 |
2.8 |
|
|
2.5 |
50 |
0.26 |
2.2 |
7.60 |
0.28 |
3.7 |
3.0 |
|
|
4 |
56 |
0.31 |
2.75 |
4.71 |
0.32 |
3.4 |
3.7 |
|
|
6 |
84 |
0.31 |
3.3 |
3.14 |
0.32 |
4.0 |
4.3 |
|
