6181XY – BS 7889
Application
The cables are suitable for power and lighting circuits and building wiring suitable for use in semi flush exposed conduits, embedded.
conduits and in closed installation ducts. Ideal for internal wiring of appliance.
Standard
BS 7889.
Technical Data
Voltage Rating : 1.5 mmsquare to 630 mmsquare - 600 / 1000V
Temperature Range : -15 °C to 90°C
Minimum Bending Radius
4.0 to 50 mmsquare : 10 X Overall diameter.
70 & 630 mmsquare : 12 X Overall diameter.
Test Voltage : 2 kV 15 min.

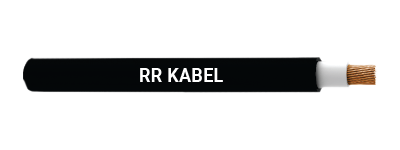

Cable Construction
Conductor : Plain annealed copper conductor : 4 mmsquare to 630 mmsquare stranded class 2 complying with BS EN 60228, HD 383, IEC 60228
Insulation : GP8 conforming to BS 7655-1.3 ( XLPE )
Sheath : 9 specified in BS 7655-4.2
Insulation Colours : Natural
Sheath Colour : Black
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 04 - blue, 09 - brown.
| Part Number | Nominal Cross Sectional Area (Sq. mm) | Nominal Insulation Thickness (mm) | Nominal Sheath Thickness (mm) | Approx Overall Diameter (mm) | Approx. Net Weight (kg/km) |
|---|---|---|---|---|---|
| 011600100004 | 4 | 0.70 | 1.40 | 8.0 | 107 |
| 011600100006 | 6 | 0.70 | 1.40 | 8.5 | 132 |
| 011600100010 | 10 | 0.70 | 1.40 | 9.5 | 181 |
| 0116001000160 | 16 | 0.70 | 1.40 | 10.5 | 247 |
| 011600100025 | 25 | 0.90 | 1.40 | 12.0 | 358 |
| 011600100035 | 35 | 0.90 | 1.40 | 13.0 | 466 |
| 011600100050 | 50 | 1.00 | 1.40 | 14.0 | 545 |
| 011600100070 | 70 | 1.10 | 1.40 | 16.0 | 765 |
| 011600100095 | 95 | 1.10 | 1.50 | 18.0 | 1022 |
| 011600100120 | 120 | 1.20 | 1.50 | 20.0 | 1267 |
| 011600100150 | 150 | 1.40 | 1.60 | 22.0 | 1556 |
| 011600100185 | 185 | 1.60 | 1.60 | 24.0 | 1928 |
| 011600100240 | 240 | 1.70 | 1.70 | 27.0 | 2501 |
| 011600100300 | 300 | 1.80 | 1.80 | 29.0 | 3108 |
| 011600100400 | 400 | 2.00 | 1.90 | 32.0 | 3923 |
| 011600100500 | 500 | 2.20 | 2.00 | 36.0 | 4999 |
| 011600100630 | 630 | 2.40 | 2.20 | 40.0 | 6414 |
