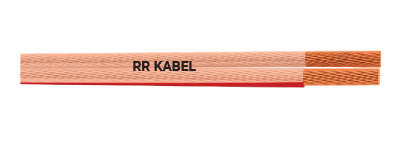

SPEAKER CABLE

thumbnail

Application

Speaker cables are highly recommended for use in connecting speakers, public address system for clear and distortion free voice with low dB loss.

Cable Construction

The cables are manufactured with bright annealed plain flexible electrolytic grade copper conductor, bunched compactly, insulated with specially formulated PVC compound. Each core is uniquely designed for easy identification. In order to offer uniform capacitance throughout length the distance between the two conductors is maintained uniformly.

Colour Availability : Transparent / black with red tracer for polarity identification.

Packing : The delivery length is available in 90 mtr. coils

Cable Design Parameter

Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for colour required: 00 – Transparent, 02 – black

Part Number Equivalent AWG Nominal Cross Sectional Area (Sq. mm) Max. DC Conductor Resistance at 20°C (Ω/km) Maximum Overall Dimensions (W X H) (mm)
01090101xx10 22 0.5 39.0 4.2 x 2.1
01090102xx10 19 0.75 26.0 4.7 x 2.4
01090103xx10 18 1 19.5 5.7 x 2.9
01090104xx10 16 1.5 13.3 6.0 x 3.0
01090105xx10 14 2.5 7.98 7.0 x 3.6
01090106xx10 12 4 4.95 8.4 x 4.1
01090107xx10 10 6 3.30 9.6 x 4.7

Recommended length

Wire Size 2Ω load 4Ω load 6Ω load 8Ω load
22 AWG 3ft (0.9m) 6ft (1.8m) 9ft (2.7m) 12ft (3.6m)
19 AWG 5ft (1.5m) 10ft (3m) 15ft (4.5m) 20ft (6m)
18 AWG 8ft (2.4m) 16ft (4.9m)) 24ft (7.3m) 32ft (9.7m)
16 AWG 12ft (3.6m) 24ft (7.3m) 36ft (11m) 48ft (15m)
14 AWG 20ft (6.1m) 40ft (12m) 60ft (18m) 80ft (24m)
12 AWG 30ft (9.1m) 60ft (18m) 90ft (27m) 120ft (36m)
10 AWG 50ft (15m) 100ft (30m) 150ft (46m) 200ft (61m)
