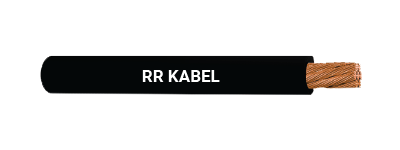

PVC BATTERY CABLE
Standard
Adapted to BS 6862
Voltage Rating
Max. 200V
Test Voltage
1000 Volts
Temperature Range (3000 Hrs)
-40°C to + 90°C
Cable Construction
Bare copper strands as per EN 60228, class 6
Packing
Available in wooden drums.
Conductor Bunch Variants
Normal flex and Super flex
Special Elastomeric Insulation
Thermoplastic Elastomer Vulcanizate
Special Properties
Acid Resistance Test: In sulphuric acid of specific gravity 1.28 at a temperature of 160°C to 210°C and check the cable after 60 hrs.
No effect on insulation. Insulation free from deformation and shrinkage
Chemical Resistance: Resistant to ozone, acids, solvents, detergents, vaseline and oils.
Cable Design Parameters
Super Flex
|
Nominal Cross-Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Outer Diameter (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) |
|
25 |
784 |
0.20 |
11.1 |
0.78 |
|
35 |
1176 |
0.20 |
12.8 |
0.554 |
|
50 |
1568 |
0.20 |
14.0 |
0.386 |
|
70 |
2205 |
0.20 |
16.0 |
0.272 |
|
95 |
2989 |
0.20 |
18.0 |
0.206 |
Normal Flex
|
Nominal Cross-Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Outer Diameter (max.) (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) |
|
25 |
816 |
0.20 |
11.1 |
0.78 |
|
35 |
1144 |
0.20 |
12.8 |
0.554 |
|
50 |
1662 |
0.20 |
14.0 |
0.386 |
|
70 |
2346 |
0.20 |
16.0 |
0.272 |
|
95 |
3050 |
0.20 |
18.0 |
0.206 |
|
|
|
|
|
|
