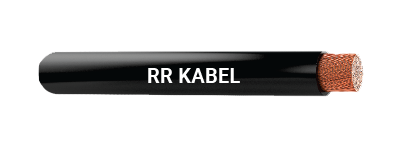

FL11Y
Application
These are automotive cables for starting and charging application in motorcycles and other motor vehicles. The cable design makes it suitable for harsh environment and robust applications.
Standard
In accordance to ISO 6722-1
Temperature Range (3000 Hrs)
-40°C to +110°C
Cable Construction
Soft annealed electrolytic copper Cu-ETP1 according to DIN EN 13602, bare construction acc. To ISO 6722-1 TPE-U (Thermoplastic polyurathane elastomer) according to ISO 6722-1, Class B
Packing
Available in 100 mtrs. Longer length available in spools or wooden drums.
Cable Design Parameters
|
Nom. Cross- Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Max. Conductor Diameter (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) |
Nominal Insulation Thickness (mm) |
Overall Diameter |
Approx. Weight (Kg/Km) |
|
|
Max. |
Tolerance |
|||||||
|
6 |
84 |
0.31 |
3.3 |
3.14 |
0.80 |
5.0 |
-0.4 |
66.0 |
|
10 |
80 |
0.41 |
4.5 |
1.82 |
1.00 |
6.5 |
-0.5 |
109.0 |
|
16 |
126 |
0.41 |
6.3 |
1.16 |
1.00 |
8.3 |
-0.6 |
176.0 |
|
25 |
196 |
0.41 |
7.8 |
0.743 |
1.30 |
10.4 |
-0.7 |
273.0 |
|
35 |
276 |
0.41 |
9.0 |
0.527 |
1.30 |
11.6 |
-0.6 |
355.0 |
|
50 |
396 |
0.41 |
10.5 |
0.368 |
1.50 |
13.5 |
-2.0 |
511.0 |
|
70 |
360 |
0.51 |
12.5 |
0.259 |
1.50 |
15.5 |
-2.0 |
705.0 |
|
95 |
475 |
0.51 |
14.8 |
0.196 |
1.60 |
18.0 |
-2.0 |
905.0 |
|
120 |
608 |
0.51 |
16.5 |
0.153 |
1.60 |
19.7 |
-2.0 |
1170.0 |
