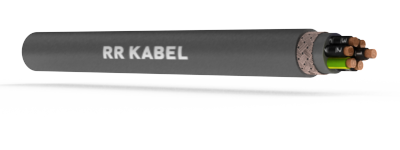

JZ-HCH
Application
Halogen-free cables for airports railway station, plant engineering and Industrial machinery, in EMC sensitive instruments. Tinned copper braid screen ensures disturbance free transmission of data and signals.
Standard
Adapted to EN 50525-3-11.
Technical Data
Nominal Voltage : U / U 300 / 500V O
Temperature Range : Flexing -15°C to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius : Flexing approx. 15 x cable ø. Fixed installation approx. 6 x cable ø
Test Voltage : 4000V
Cable Construction
Bare copper, fine wire conductors, to EN 60228 Cl. 5.
Core insulation of halogen-free compound TI6 to EN 50363-7.
Black colour with white numbers DIN VDE 0293.
Green/Yellow earth core in outer layer.
Cores stranded in layers with optimal lay-length.
Halogen free inner sheath in Grey (RAL 7001).
Tinned-copper braided screen, approx. 85% coverage.
Halogen-free sheath compound TM7, to EN 50363-8.
Sheath colour grey (RAL 7001).
Properties
Flame retardant to IEC 60332-1-2.
No flame propagation according to IEC 60332-3-24 (flame spread on Vertical cable or wire bundle).
Halogen free according to IEC 60754-1.
Corrosive gas evolution to IEC 60754-2.
Cable Design Parameters
| Part Number | No. of Cores and Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) |
|---|---|---|---|---|
| 031900201050 | 2 x 0.5 | 7.1 | 21.6 | 72 |
| 031900311050 | 3G 0.5 | 7.5 | 27.6 | 82 |
| 031900301050 | 3 X 0.5 | 7.5 | 27.6 | 82 |
| 031900411050 | 4G 0.5 | 8.0 | 32.5 | 97 |
| 031900401050 | 4 X 0.5 | 8.0 | 32.5 | 97 |
| 031900511050 | 5G 0.5 | 8.5 | 38.7 | 111 |
| 031900711050 | 7G 0.5 | 9.1 | 47.7 | 129 |
| 031901211050 | 12G 0.5 | 11.3 | 75.2 | 208 |
| 031900201075 | 2 x 0.75 | 7.7 | 27.5 | 86 |
| 031900311075 | 3G 0.75 | 8.1 | 36.2 | 99 |
| 031900301075 | 3 X 0.75 | 8.1 | 36.2 | 99 |
| 031900411075 | 4G 0.75 | 8.6 | 42.4 | 114 |
| 031900401075 | 4 X 0.75 | 8.6 | 42.4 | 114 |
| 031900511075 | 5G 0.75 | 9.3 | 48.7 | 130 |
| 031900501075 | 5 X 0.75 | 9.3 | 48.7 | 130 |
| 031900711075 | 7G 0.75 | 9.9 | 64.0 | 163 |
| 031900701075 | 7 X 0.75 | 9.9 | 64.0 | 163 |
| 031901211075 | 12G 0.75 | 12.5 | 101.1 | 258 |
| 031901811075 | 18G 0.75 | 14.6 | 160.6 | 372 |
| 031902511075 | 25G 0.75 | 15.8 | 214.1 | 493 |
| 031900200001 | 2 x 1 | 8.1 | 32.0 | 96 |
| 031900310001 | 3G 1 | 8.4 | 42.2 | 111 |
| 031900300001 | 3 X 1 | 8.4 | 42.2 | 111 |
| 031900410001 | 4G 1 | 9.1 | 50.7 | 127 |
| 031900400001 | 4 X 1 | 9.1 | 50.7 | 127 |
| 031900510001 | 5G 1 | 9.7 | 61.3 | 153 |
| 031900710001 | 7G 1 | 10.4 | 79.5 | 192 |
| 031901210001 | 12G 1 | 13.2 | 146.2 | 322 |
| 031901810001 | 18G 1 | 15.4 | 202.5 | 444 |
| 031902510001 | 25G 1 | 16.7 | 271.5 | 586 |
| 031904110001 | 41G 1 | 22.0 | 437.1 | 923 |
| 031900201105 | 2 x 1.5 | 8.7 | 42.1 | 116 |
| 031900311105 | 3G 1.5 | 9.2 | 56.0 | 136 |
| 031900301105 | 3 X 1.5 | 9.2 | 56.0 | 136 |
| 031900411105 | 4G 1.5 | 9.6 | 69.1 | 163 |
| 031900511105 | 5G 1.5 | 10.6 | 99.2 | 209 |
| 031900711105 | 7G 1.5 | 11.3 | 124.6 | 247 |
| 031901211105 | 12G 1.5 | 14.8 | 198.6 | 416 |
| 031901411105 | 14G 1.5 | 0.0 | 232.9 | 185 |
| 031901811105 | 18G 1.5 | 17.2 | 279.6 | 575 |
| 031902511105 | 25G 1.5 | 20.1 | 375.2 | 783 |
| 031900311205 | 3G 2.5 | 10.4 | 99.1 | 204 |
| 031900411205 | 4G 2.5 | 11.4 | 121.1 | 248 |
| 031900511205 | 5G 2.5 | 12.6 | 146.4 | 302 |
| 031900711205 | 7G 1.5 | 13.9 | 124.6 | 382 |
| 031901211205 | 12G 2.5 | 17.6 | 304.4 | 613 |
| 031900410004 | 4G 4 | 13.4 | 173.2 | 350 |
| 031900510004 | 5G 4 | 14.7 | 212.4 | 426 |
| 031900710004 | 7G 4 | 16.2 | 275.0 | 537 |
| 031900410006 | 4G 6 | 15.8 | 250.2 | 497 |
| 031900510006 | 5G 6 | 17.3 | 303.7 | 601 |
| 031900710006 | 7G 6 | 18.8 | 400.0 | 754 |
| 031900410010 | 4G 10 | 19.0 | 395.2 | 753 |
| 031900510010 | 5G 10 | 21.2 | 482.7 | 932 |
| 031900410016 | 4G 16 | 22.2 | 657.4 | 1128 |
| 031900510016 | 5G 16 | 24.4 | 807.2 | 1377 |
| 031900410025 | 4G 25 | 27.0 | 984.1 | 1690 |
| 031900410035 | 4G 35 | 30.7 | 1352.0 | 2257 |
| 031900410050 | 4 G 50 | 36.5 | 2009.2 | 3205 |
| 031900410070 | 4 G 70 | 41.6 | 2788.5 | 4319 |
| 031900410095 | 4 G 95 | 47.8 | 3656.7 | 5691 |
Note : G = With green / yellow earth core
X = Without green / yellow earth core
For current ratings to DIN VDE 0298-4 refer table no. 12-3 of Appendix.
