2XY / 2XFY / 2XWY-1.5 Sq. mm

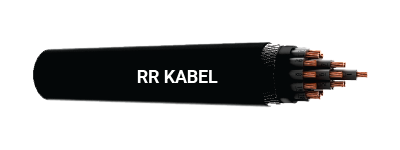

Cable Construction
2.5 Sq. mm copper conductor, XLPE insulated unarmoured & galvanised steel strip / wire armoured control cables as per IS 7098 Part - 1.
Conductor : CU conductor solid as per Cl. 1 IS 8130 or stranded as per Cl. 2 IS 8130
Insulation : Crosslinked polyethylene (XLPE)
Inner Sheath : PVC / PVC tape as per IS 7098 ( P-1 )
Core Color : Up to 5 cores by colour coding & more than 5 cores number printing on core as per IS 7098 Part - 1
Inner Sheath : PVC / PVC tape as per IS 7098 (P - 1)
Armouring : Single armouring of galvanised steel strip / wire
Outer Sheath : PVC Type ST - 2 as per IS 5831 (Option : FR Type / FRLS Type)
Cable Color : Black (Options : Any other color as per requirement)
Cable Design Parameters
While ordering, in addition to the part number the following details shall also be advised:
Class of conductor – Cl. 1 or 2.
Sheath Type – PVC Type ST – 2 (FR or FRLS).
| PartNumber | No. of Cores | Nominal Thickness of Insulation(mm) | Minimum Thickness of Inner Sheath(mm) | Unarmoured (2XY) | Armoured With Flat Strips (2XFY) | Armoured With Round Wire (2XWY) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Thickness of Outer Sheath(mm) | Approx. Overall Dia.(mm) | Approx. Net Wt.of Cable(kg/km) | NominalThicknessof Arm.Strip(mm) | MinimumThicknessof OuterSheath(mm) | Approx. Overall Dia.(mm) | Approx.Net Wt.of Cable(kg/km) | Nominal Thickness of Arm.Strip(mm) | Minimum Thickness of OuterSheath(mm) | App.Overall Dia.(mm ) | Approx.Net Wt.of Cable(kg/km) | ||||
| 112400201205 | 2 | 0.7 | 0.3 | 1.8 | 10.5 | 170 | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 12.5 | 390 |
| 112400301205 | 3 | 0.7 | 0.3 | 1.8 | 11.5 | 200 | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 13.0 | 420 |
| 112400401205 | 4 | 0.7 | 0.3 | 1.8 | 12.0 | 235 | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 14.0 | 480 |
| 112400501205 | 5 | 0.7 | 0.3 | 1.8 | 13.0 | 270 | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 15.0 | 540 |
| 112400601205 | 6 | 0.7 | 0.3 | 1.8 | 14.0 | 310 | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 15.5 | 595 |
| 112400701205 | 7 | 0.7 | 0.3 | 1.8 | 14.0 | 335 | N/A | N/A | N/A | N/A | 1.4 | 1.24 | 15.5 | 620 |
| 112401001205 | 10 | 0.7 | 0.3 | 1.8 | 17.0 | 350 | N/A | N/A | N/A | N/A | 1.6 | 1.40 | 19.5 | 870 |
| 112401201205 | 12 | 0.7 | 0.3 | 1.8 | 19.0 | 520 | 0.8 | 1.40 | 19.0 | 760 | 1.6 | 1.40 | 21.0 | 985 |
| 112401401205 | 14 | 0.7 | 0.3 | 1.8 | 19.5 | 575 | 0.8 | 1.40 | 19.5 | 820 | 1.6 | 1.40 | 21.5 | 1030 |
| 112401601205 | 16 | 0.7 | 0.3 | 2.0 | 20.0 | 655 | 0.8 | 1.40 | 20.0 | 890 | 1.6 | 1.40 | 22.0 | 1105 |
| 112401901205 | 19 | 0.7 | 0.3 | 2.0 | 21.0 | 745 | 0.8 | 1.40 | 21.0 | 990 | 1.6 | 1.40 | 23.0 | 1225 |
| 112402401205 | 24 | 0.7 | 0.3 | 2.0 | 23.5 | 910 | 0.8 | 1.40 | 24.0 | 1210 | 1.6 | 1.40 | 25.5 | 1470 |
| 112402701205 | 27 | 0.7 | 0.3 | 2.0 | 24.0 | 1040 | 0.8 | 1.40 | 24.5 | 1300 | 1.6 | 1.40 | 26.5 | 1580 |
| 112403001205 | 30 | 0.7 | 0.3 | 2.0 | 25.0 | 1085 | 0.8 | 1.40 | 25.5 | 1400 | 1.6 | 1.40 | 27.0 | 1680 |
| 112403701205 | 37 | 0.7 | 0.3 | 2.0 | 27.0 | 1290 | 0.8 | 1.40 | 27.5 | 1635 | 1.6 | 1.56 | 29.0 | 1950 |
| 112404001205 | 40 | 0.7 | 0.3 | 2.0 | 28.0 | 1390 | 0.8 | 1.56 | 28.5 | 1770 | 1.6 | 1.56 | 30.5 | 2145 |
| 112404401205 | 44 | 0.7 | 0.4 | 2.2 | 31.0 | 1550 | 0.8 | 1.56 | 31.0 | 1950 | 2.0 | 1.56 | 33.5 | 2525 |
| 112405201205 | 52 | 0.7 | 0.4 | 2.2 | 32.0 | 1790 | 0.8 | 1.56 | 32.5 | 2200 | 2.0 | 1.56 | 35.0 | 2785 |
| 112406101205 | 61 | 0.7 | 0.4 | 2.2 | 34.0 | 2050 | 0.8 | 1.56 | 34.0 | 2490 | 2.0 | 1.56 | 36.5 | 3105 |
