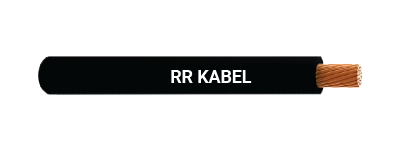

AVS
Application
These are thin wall auto cables ideal for use in automotives.
Standard
JASO D 611, JASO D 618
Temperature Range (3000 Hrs)
-40°C to +80°C
Cable Construction
Soft annealed electrolytic copper Cu-ETP1 according to D 609-90, bare conductor construction according to JASO D 611 PVC insulation, material accordingly to JASO D 611
Packing
Available in 100 mtrs. Longer length available in spools.
Cable Design Parameters
|
Nom. Cross-Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Max. Conductor Diameter (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) |
Standard Insulation Thickness (mm) |
Overall Diameter (mm) |
Approx. Weight (Kg/Km) |
|
|
Max. |
Tolerance |
|||||||
|
0.3 |
7 |
0.26 |
0.8 |
50.2 |
0.50 |
1.9 |
-0.1 |
6.0 |
|
0.5 |
7 |
0.32 |
1.0 |
32.7 |
0.50 |
2.1 |
-0.1 |
8.0 |
|
0.85 |
11 |
0.32 |
1.2 |
20.8 |
0.50 |
2.3 |
-0.1 |
12.0 |
|
1.25 |
16 |
0.32 |
1.5 |
14.3 |
0.50 |
2.6 |
-0.1 |
16.0 |
|
2 |
26 |
0.32 |
1.9 |
8.81 |
0.50 |
3.1 |
-0.2 |
25.0 |
|
3 |
41 |
0.32 |
2.4 |
5.59 |
0.60 |
3.8 |
-0.2 |
39.0 |
|
5 |
65 |
0.32 |
3.0 |
3.52 |
0.70 |
4.6 |
-0.2 |
60.0 |
|
0.3f* |
15 |
0.18 |
0.8 |
48.9 |
0.50 |
1.9 |
-0.1 |
6.0 |
|
0.5f* |
20 |
0.18 |
1.0 |
36.7 |
0.50 |
2.1 |
-0.1 |
8.0 |
|
0.75f* |
30 |
0.18 |
1.2 |
24.4 |
0.50 |
2.3 |
-0.1 |
11.0 |
|
1.25f* |
50 |
0.18 |
1.5 |
14.7 |
0.50 |
2.6 |
-0.1 |
17.0 |
|
2f* |
37 |
0.26 |
1.8 |
9.5 |
0.50 |
3.1 |
-0.4 |
24.0 |
