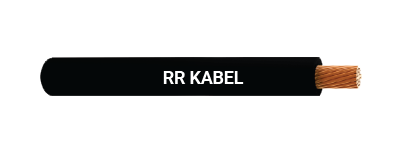

FLRYK
Application
These are thin wall auto cables with cold resistant properties
Standard
In accordance to ISO 6722-1
Temperature Range (3000 Hrs)
-50°C to +105°C
Cable Construction
Soft annealed electrolytic copper Cu-ETP1 according to DIN EN 13602, bare conductor construction according to ISO 6722-1 Soft PVC insulation cold-resistant
Packing
Available in 100 mtrs. Longer length available in spools.
Special Properties
Cold bending test acc. to ISO 6722-1 at -50°C.
Cable Design Parameters
|
Nom. Cross-Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Max. Conductor Diameter (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) |
Nominal Insulation Thickness (mm) |
Overall Diameter (mm) |
Approx. Weight (Kg/Km) |
|
|
Max. |
Tolerance |
|||||||
|
0.5 |
16 |
0.21 |
1.0 |
37.1 |
0.28 |
1.6 |
-0.2 |
6.0 |
|
1.0 |
32 |
0.21 |
1.4 |
18.5 |
0.30 |
2.1 |
-0.2 |
12.0 |
|
1.5 |
30 |
0.26 |
1.7 |
12.7 |
0.30 |
2.4 |
-0.3 |
16.0 |
|
2.5 |
50 |
0.26 |
2.1 |
7.6 |
0.35 |
3.0 |
-0.3 |
30.0 |
