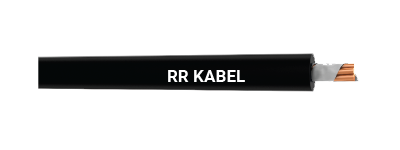

SINGLE CORE FIRE RESISTANT
Application
These cables are designed for installations in trunking and conduits where a fire situation may pose a major hazard. Circuit integrity is maintained and to achieve optimum performance such cables should be installed in metal conduits.
Standard
Adapted to EN 50525-3-41
Technical Data
Voltage Rating : 450 / 750 V
Operating Temperature : -20°C to + 90°C (the cable should not be flexed when the temperature is below 0°C)
Minimum Bending Radius : 8 x Overall diameter
Cable Construction
Construction : Stranded plain annealed copper conductor to BS EN 60228, class 2.
Insulation : Mica (fire resistant) tape covered by an extruded layer of cross - linked low smoke zero halogen (LS0H), insulating compound
*Sheathed version also available. Details available on request.
Circuit Integrity for installation in metal conduits : BS 6387 categories C, W & Z (when applied to a single cable) Exceeds IEC 60331 - 3 hours at 750°C - when the test temperature was increased to 950°C, equivalent to BS 6387 category C
Acid Gas Emission : IEC 60754-1, BS EN 50267-2-1
Smoke Emission : IEC 61034, BS EN 50268
Flame Propagation : EN 60332-1, EN 60332-3, BS EN 50265, BS EN 50266
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required : 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green / yellow, 09 – brown, 12 – grey.
| Part Number | Nominal CrossSectional Area (Sq. mm) | Insulation Thickness (mm) | Max. Overall Diameter (mm) | Approx. Cable Weight (kg/km) |
|---|---|---|---|---|
| 10040101xx60 | 1.5 | 0.7 | 3.8 | 32 |
| 10040102xx60 | 2.5 | 0.8 | 4.5 | 43 |
| 10040103xx60 | 4 | 0.8 | 5.0 | 55 |
| 10040104xx60 | 6 | 0.8 | 5.5 | 85 |
| 10040105xx60 | 10 | 1.0 | 7.0 | 146 |
| 10040106xx60 | 16 | 1.0 | 8.0 | 198 |
| 10040107xx60 | 25 | 1.2 | 9.7 | 320 |
| 10040108xx60 | 35 | 1.2 | 10.8 | 410 |
| 10040109xx60 | 50 | 1.4 | 13.3 | 549 |
| 10040110xx60 | 70 | 1.4 | 15.1 | 770 |
| 10040111xx60 | 95 | 1.6 | 17.5 | 1140 |
| 10040112xx60 | 120 | 1.6 | 19.2 | 1425 |
| 10040113xx60 | 150 | 1.8 | 21.2 | 1720 |
| 10040114xx60 | 185 | 2.0 | 23.6 | 2155 |
