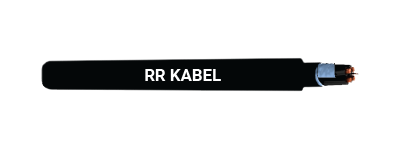

RE-2X(St)Y – MULTICORE
Standard
Adapted to EN 50288-7
Cable Construction
Conductor : Annealed copper wires according to BS EN 60228
Insulation : Polyvinyl chloride PVC
Colour Code : Black, continuously numbered in white
Wrapping : 1 layer of PETP tape
Collective Screen : Aluminium / PETP tape over tinned copper drain wire
Cable Sheath : Polyvinyl Chloride PVC (Also available in halogen free construction on request.)
Colour : Black. Blue for intrinsically safe system
Technical Data
Flame Propagation : EN 60332-1-2
Operating Temperature Range : -30°C to +90°C
Bending Radius : 7.5 x cable diameter
Operating Voltage : 500V
*Also available in 300V variant on request.
Marking : RR KABEL RE-2X(St)Y cxa 500V EN50288-7 CE + 0001m
n - No. of pairs
a - Cross sectional area
Electrical Properties
| Conductor Cross Section (Sq.mm) | Class of Conductor | No. of Strands/Max. Strand Diameter (mm) | Max. DC Conductor Resistance at 20°C (Ω/km) | Max. L/R Ratio (μH/Ω) | Min. Insulation Resistance (GΩ x cm) | Max. Mutual Capacitance (nF/km) | Max. Inductance (mH/km) | Test Voltage Vrms (Core-Core) | Test Voltage V rms (Core-Screen) |
|---|---|---|---|---|---|---|---|---|---|
| 0.5 | 2 | 7/0.3 | 36.0 | 25 | 20 | 250 | 1 | 2000 | 2000 |
| 0.5 | 5 | 16/0.2 | 39.0 | 25 | 20 | 250 | 1 | 2000 | 2000 |
| 0.75 | 2 | 7/0.37 | 24.5 | 25 | 20 | 250 | 1 | 2000 | 2000 |
| 0.75 | 5 | 24/0.2 | 26.0 | 25 | 20 | 250 | 1 | 2000 | 2000 |
| 1 | 2 | 7/0.43 | 18.1 | 25 | 20 | 250 | 1 | 2000 | 2000 |
| 1 | 5 | 32/0.2 | 19.5 | 25 | 20 | 250 | 1 | 2000 | 2000 |
| 1.5 | 2 | 7/0.53 | 12.1 | 40 | 20 | 250 | 1 | 2000 | 2000 |
| 2.5 | 2 | 7/0.67 | 7.41 | 60 | 20 | 250 | 1 | 2000 | 2000 |
*For multi-pair maximum resistance shall be increased by 2%.
Cable Design Parameters
| Part Number | No. of Cores and Nom. Cross Sectional Area(Sq. mm) | Min. Insulation Thickness (mm) | Nominal Sheath Thickness (mm) | Approx. Cable Diameter (mm) | Approx. Cable Weight (kg/km) | |
|---|---|---|---|---|---|---|
| Class 5 Conductor | 071050221050 | 2×0.5 | 0.44 | 1.0 | 6.2 | 43.9 |
| 071050421050 | 4×0.5 | 0.44 | 1.0 | 7.1 | 64.4 | |
| 071050521050 | 5×0.5 | 0.44 | 1.0 | 7.7 | 75.7 | |
| 071050821050 | 8×0.5 | 0.44 | 1.1 | 9.4 | 109.1 | |
| 071051021050 | 10×0.5 | 0.44 | 1.1 | 10.7 | 132.9 | |
| 071051221050 | 12×0.5 | 0.44 | 1.2 | 11.1 | 150.7 | |
| 071051621050 | 16×0.5 | 0.44 | 1.2 | 12.3 | 190.1 | |
| 071052021050 | 20×0.5 | 0.44 | 1.3 | 13.7 | 232.1 | |
| 071052421050 | 24×0.5 | 0.44 | 1.3 | 15.2 | 282.8 | |
| 071050221075 | 2×0.75 | 0.44 | 1.0 | 6.6 | 51.7 | |
| 071050421075 | 4×0.75 | 0.44 | 1.0 | 7.6 | 78.4 | |
| 071050521075 | 5×0.75 | 0.44 | 1.1 | 8.3 | 92.9 | |
| 071050821075 | 8×0.75 | 0.44 | 1.1 | 10.2 | 136.0 | |
| 071051021075 | 10×0.75 | 0.44 | 1.2 | 11.6 | 166.6 | |
| 071051221075 | 12×0.75 | 0.44 | 1.2 | 11.9 | 190.2 | |
| 071051621075 | 16×0.75 | 0.44 | 1.2 | 13.3 | 262.6 | |
| 071052021075 | 20×0.75 | 0.44 | 1.3 | 14.9 | 296.8 | |
| 071052421075 | 24×0.75 | 0.44 | 1.4 | 16.5 | 363.2 | |
| 071050220001 | 2×1 | 0.44 | 1.0 | 6.9 | 58.8 | |
| 071050420001 | 4×1 | 0.44 | 1.0 | 8.0 | 91.2 | |
| 071050520001 | 5×1 | 0.44 | 1.1 | 8.8 | 108.7 | |
| 071050820001 | 8×1 | 0.44 | 1.1 | 10.7 | 160.7 | |
| 071051020001 | 10×1 | 0.44 | 1.2 | 12.2 | 197.5 | |
| 071051220001 | 12×1 | 0.44 | 1.2 | 12.6 | 226.7 | |
| 071051620001 | 16×1 | 0.44 | 1.3 | 14.1 | 315.8 | |
| 071052020001 | 20×1 | 0.44 | 1.3 | 15.7 | 356.7 | |
| 071052420001 | 24×1 | 0.44 | 1.4 | 17.5 | 437.7 | |
| Class 2 Conductor | 071020221050 | 2×0.5 | 0.44 | 1.0 | 6.2 | 43.7 |
| 071020421050 | 4×0.5 | 0.44 | 1.0 | 7.1 | 64.1 | |
| 071020521050 | 5×0.5 | 0.44 | 1.0 | 7.7 | 75.3 | |
| 071020821050 | 8×0.5 | 0.44 | 1.1 | 9.4 | 108.5 | |
| 071021021050 | 10×0.5 | 0.44 | 1.1 | 10.7 | 132.2 | |
| 071021221050 | 12×0.5 | 0.44 | 1.2 | 11.1 | 149.9 | |
| 071021621050 | 16×0.5 | 0.44 | 1.2 | 12.3 | 189.0 | |
| 071022021050 | 20×0.5 | 0.44 | 1.3 | 13.7 | 230.7 | |
| 071022421050 | 24×0.5 | 0.44 | 1.3 | 15.2 | 281.1 | |
| 071020221075 | 2×0.75 | 0.44 | 1.0 | 6.6 | 51.8 | |
| 071020421075 | 4×0.75 | 0.44 | 1.0 | 7.7 | 78.5 | |
| 071020521075 | 5×0.75 | 0.44 | 1.1 | 8.4 | 93.0 | |
| 071020821075 | 8×0.75 | 0.44 | 1.1 | 10.2 | 136.1 | |
| 071021021075 | 10×0.75 | 0.44 | 1.2 | 11.6 | 166.7 | |
| 071021221075 | 12×0.75 | 0.44 | 1.2 | 12.0 | 190.4 | |
| 071021621075 | 16×0.75 | 0.44 | 1.2 | 13.3 | 262.8 | |
| 071022021075 | 20×0.75 | 0.44 | 1.3 | 14.9 | 297.0 | |
| 071022421075 | 24×0.75 | 0.44 | 1.4 | 16.6 | 363.5 | |
| 071020220001 | 2×1 | 0.44 | 1.0 | 7.0 | 59.9 | |
| 071020420001 | 4×1 | 0.44 | 1.1 | 8.2 | 93.0 | |
| 071020520001 | 5×1 | 0.44 | 1.1 | 8.9 | 111.0 | |
| 071020820001 | 8×1 | 0.44 | 1.2 | 10.9 | 164.2 | |
| 071021020001 | 10×1 | 0.44 | 1.2 | 12.4 | 202.0 | |
| 071021220001 | 12×1 | 0.44 | 1.2 | 12.8 | 231.8 | |
| 071021620001 | 16×1 | 0.44 | 1.3 | 14.3 | 323.0 | |
| 071022020001 | 20×1 | 0.44 | 1.3 | 16.0 | 364.9 | |
| 071022420001 | 24×1 | 0.44 | 1.4 | 17.8 | 447.9 | |
| 071020221105 | 2×1.5 | 0.44 | 1.0 | 7.7 | 75.4 | |
| 071020421105 | 4×1.5 | 0.44 | 1.1 | 9.0 | 121.1 | |
| 071020521105 | 5×1.5 | 0.44 | 1.1 | 9.9 | 145.6 | |
| 071020821105 | 8×1.5 | 0.44 | 1.2 | 12.2 | 218.6 | |
| 071021021105 | 10×1.5 | 0.44 | 1.3 | 13.8 | 270.1 | |
| 071021221105 | 12×1.5 | 0.44 | 1.3 | 14.3 | 312.0 | |
| 071021621105 | 16×1.5 | 0.44 | 1.3 | 16.0 | 401.9 | |
| 071022021105 | 20×1.5 | 0.44 | 1.4 | 17.9 | 496.8 | |
| Class 2 Conductor | 071022421105 | 24×1.5 | 0.44 | 1.5 | 20.0 | 612.0 |
| 071020221205 | 2×2.5 | 0.53 | 1.1 | 9.1 | 104.9 | |
| 071020421205 | 4×2.5 | 0.53 | 1.1 | 10.6 | 174.3 | |
| 071020521205 | 5×2.5 | 0.53 | 1.2 | 11.7 | 211.2 | |
| 071020821205 | 8×2.5 | 0.53 | 1.3 | 14.5 | 321.5 | |
| 071021021205 | 10×2.5 | 0.53 | 1.4 | 16.5 | 399.2 | |
| 071021221205 | 12×2.5 | 0.53 | 1.4 | 17.1 | 463.8 | |
| 071021621205 | 16×2.5 | 0.53 | 1.5 | 19.1 | 601.4 | |
| 071022021205 | 20×2.5 | 0.53 | 1.5 | 21.5 | 746.1 | |
| 071022421205 | 24×2.5 | 0.53 | 1.6 | 24.0 | 892.6 |
