BARE COPPER CONDUCTOR
Application
The bare copper conductor are used as ground conductor, uninsulated hook up wires and jumpers.
Standard
IEC 60228, BS EN 60228.
Technical Data
Description : : Soft drawn plain annealed copper
Packing : In wooden drums
Cable Construction

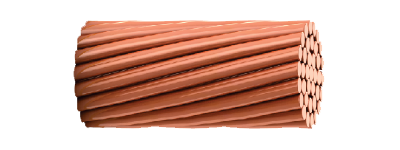

The conductor consist of annealed bare copper wire which are stranded together. The construction of the conductor is in accordance to IEC 60228 and BS EN 60228.
Cable Design Parameters
| Part Number | Nominal Cross-Sectional Area (Sq. mm) | Conductor Details | Approx. Conductor Diameter (mm) | Approx Net Weight (kg/km) | |
|---|---|---|---|---|---|
| No. of Strand | Max. DC Conductor Resistance at 20°C (?/Km) | ||||
| 121101010000 | 16 | 7 | 1.15 | 5.01 | 141 |
| 121101020000 | 25 | 7 | 0.727 | 6.32 | 223 |
| 121101030000 | 35 | 7 | 0.524 | 7.41 | 309 |
| 121101040000 | 50 | 19 | 0.387 | 8.72 | 418 |
| 121101050000 | 70 | 19 | 0.268 | 10.53 | 604 |
| 121101060000 | 95 | 19 | 0.193 | 12.34 | 839 |
| 121101070000 | 120 | 37 | 0.153 | 13.91 | 1059 |
| 121101080000 | 150 | 37 | 0.124 | 15.45 | 1306 |
| 121101090000 | 185 | 37 | 0.0991 | 17.28 | 1634 |
| 121101100000 | 240 | 61 | 0.0754 | 19.84 | 2148 |
| 121101110000 | 300 | 61 | 0.0601 | 22.22 | 2695 |
| 121101120000 | 400 | 91 | 0.047 | 25.15 | 3446 |
| 121101130000 | 500 | 91 | 0.0366 | 28.49 | 4425 |
| 121101140000 | 630 | 91 | 0.0283 | 32.41 | 5723 |
