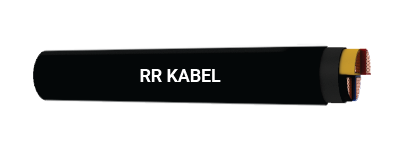

AYY / YY-4 CORE

thumbnail

Cable Construction

1.1 kV (A.C) & 1.5 kV (D.C ) to Earth

4 cores AL / CU conductor, PVC insulated, unarmoured cables as per IS 1554 Part - 1.

Conductor : AL up to 10 Sq. mm conductor are solid Cl. 1 as per IS 8130. And above 10 Sq. mm conductor are stranded compacted shape Cl. 2 as per IS 8130

In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded Cl. 2 as per IS 8130. 10 Sq. mm conductor is stranded Cl. 2 round as per IS 8130. Above 10 Sq. mm conductor are stranded compacted shaped Cl. 2 as per IS 8130

Insulation : PVC Type - A, as per IS 5831. (Option : HR PVC Type - C, as per IS 5831)

Core Color : Red, yellow, blue, black

Inner Sheath : PVC/PVC tape as per IS 1554 (P-1)

Outer Sheath : PVC Type ST - 1 as per IS 5831 (Option : PVC Type - ST - 2 as per IS 5831, FR Type / FRLS Type)

Cable Color : Black (Options : Any other color as per requirement)

Cable Design Parameters

While ordering, in addition to the part number the following details shall also be advised:

Conductor Type (Aluminium or Copper) and class of conductor (Cl. 1 or 2).

Insulation Type – PVC Type A / C.

Sheath Type – PVC Type ST – 1 / FR / FRLS; PVC Type ST – 2 / FR / FRLS.

PartNumber Nominal Cross Sectional Area (Sq. mm) Minimum No. of Strands in Conductor Nominal Thickness of Insulation (mm) Minimum Thickness of Inner Sheath(mm) Nominal Thickness of Outer Sheath(mm) Approx. Overall Diameter(mm) Approx. Net Wt.of Cable (kg/km)
AL CU AL CableAYY CU CableYY
110500400004 4 _ 1/7 1.0 0.3 1.8 16 290 390
110500400006 6 1 1/7 1.0 0.3 1.8 18 380 530
110500400010 10 1 6 1.0 0.3 1.8 20 530 770
110500400016 16 6 6 1.0 0.3 2.0 23 550 940
110500400025 25 6 6 1.2 0.3 2.0 26 740 1350
110500400035 35 6 6 1.2 0.3 2.0 30 925 1785
110500400050 50 6 6 1.4 0.4 2.2 34 1230 2480
110500400070 70 12 12 1.4 0.4 2.2 38 1540 3285
110500400095 95 15 15 1.6 0.4 2.4 43 2030 4385
110500400120 120 15 18 1.6 0.5 2.4 46 2385 5360
110500400150 150 15 18 1.8 0.5 2.6 51 2925 6650
110500400185 185 30 30 2.0 0.6 2.8 55 3630 8230
110500400240 240 30 34 2.2 0.6 3.0 60 4580 10530
110500400300 300 30 34 2.4 0.7 3.4 66 5480 12950
110500400400 400 53 53 2.6 0.7 3.6 73 6780 16700
110500400500 500 53 53 3.0 0.7 4.0 82 8580 20980
110500400630 630 53 53 3.4 0.7 4.0 92 10980 25980
PartNumber Nominal Cross Sectional Area (Sq. mm) Minimum No. of Strands in Conductor Nominal Thickness of Insulation (mm) Minimum Thickness of Inner Sheath(mm) Nominal Thickness of Outer Sheath(mm) Approx. Overall Diameter(mm) Approx. Net Wt.of Cable (kg/km)
AL CU AL CableAYY CU CableYY
110500400004 4 _ 1/7 1.0 0.3 1.8 16 290 390
110500400006 6 1 1/7 1.0 0.3 1.8 18 380 530
110500400010 10 1 6 1.0 0.3 1.8 20 530 770
110500400016 16 6 6 1.0 0.3 2.0 23 550 940
110500400025 25 6 6 1.2 0.3 2.0 26 740 1350
110500400035 35 6 6 1.2 0.3 2.0 30 925 1785
110500400050 50 6 6 1.4 0.4 2.2 34 1230 2480
110500400070 70 12 12 1.4 0.4 2.2 38 1540 3285
110500400095 95 15 15 1.6 0.4 2.4 43 2030 4385
110500400120 120 15 18 1.6 0.5 2.4 46 2385 5360
110500400150 150 15 18 1.8 0.5 2.6 51 2925 6650
110500400185 185 30 30 2.0 0.6 2.8 55 3630 8230
110500400240 240 30 34 2.2 0.6 3.0 60 4580 10530
110500400300 300 30 34 2.4 0.7 3.4 66 5480 12950
110500400400 400 53 53 2.6 0.7 3.6 73 6780 16700
110500400500 500 53 53 3.0 0.7 4.0 82 8580 20980
110500400630 630 53 53 3.4 0.7 4.0 92 10980 25980
PartNumber Nominal Cross Sectional Area (Sq. mm) Minimum No. of Strands in Conductor Nominal Thickness of Insulation (mm) Minimum Thickness of Inner Sheath(mm) Nominal Thickness of Outer Sheath(mm) Approx. Overall Diameter(mm) Approx. Net Wt.of Cable (kg/km)
AL CU AL CableAYY CU CableYY
110500400004 4 _ 1/7 1.0 0.3 1.8 16 290 390
110500400006 6 1 1/7 1.0 0.3 1.8 18 380 530
110500400010 10 1 6 1.0 0.3 1.8 20 530 770
110500400016 16 6 6 1.0 0.3 2.0 23 550 940
110500400025 25 6 6 1.2 0.3 2.0 26 740 1350
110500400035 35 6 6 1.2 0.3 2.0 30 925 1785
110500400050 50 6 6 1.4 0.4 2.2 34 1230 2480
110500400070 70 12 12 1.4 0.4 2.2 38 1540 3285
110500400095 95 15 15 1.6 0.4 2.4 43 2030 4385
110500400120 120 15 18 1.6 0.5 2.4 46 2385 5360
110500400150 150 15 18 1.8 0.5 2.6 51 2925 6650
110500400185 185 30 30 2.0 0.6 2.8 55 3630 8230
110500400240 240 30 34 2.2 0.6 3.0 60 4580 10530
110500400300 300 30 34 2.4 0.7 3.4 66 5480 12950
110500400400 400 53 53 2.6 0.7 3.6 73 6780 16700
110500400500 500 53 53 3.0 0.7 4.0 82 8580 20980
110500400630 630 53 53 3.4 0.7 4.0 92 10980 25980
PartNumber Nominal Cross Sectional Area (Sq. mm) Minimum No. of Strands in Conductor Nominal Thickness of Insulation (mm) Minimum Thickness of Inner Sheath(mm) Nominal Thickness of Outer Sheath(mm) Approx. Overall Diameter(mm) Approx. Net Wt.of Cable (kg/km)
AL CU AL CableAYY CU CableYY
110500400004 4 _ 1/7 1.0 0.3 1.8 16 290 390
110500400006 6 1 1/7 1.0 0.3 1.8 18 380 530
110500400010 10 1 6 1.0 0.3 1.8 20 530 770
110500400016 16 6 6 1.0 0.3 2.0 23 550 940
110500400025 25 6 6 1.2 0.3 2.0 26 740 1350
110500400035 35 6 6 1.2 0.3 2.0 30 925 1785
110500400050 50 6 6 1.4 0.4 2.2 34 1230 2480
110500400070 70 12 12 1.4 0.4 2.2 38 1540 3285
110500400095 95 15 15 1.6 0.4 2.4 43 2030 4385
110500400120 120 15 18 1.6 0.5 2.4 46 2385 5360
110500400150 150 15 18 1.8 0.5 2.6 51 2925 6650
110500400185 185 30 30 2.0 0.6 2.8 55 3630 8230
110500400240 240 30 34 2.2 0.6 3.0 60 4580 10530
110500400300 300 30 34 2.4 0.7 3.4 66 5480 12950
110500400400 400 53 53 2.6 0.7 3.6 73 6780 16700
110500400500 500 53 53 3.0 0.7 4.0 82 8580 20980
110500400630 630 53 53 3.4 0.7 4.0 92 10980 25980

Electrical Parameters

Part Number Nominal Cross Sectional Area(Sq. mm) Max. DC Conductor Resistance at20°C (Ω/km) Max. AC Conductor Resistance at70°C (Ω/km) Approx.Capacitance of Cable (microF/KM) Approx. Capacitance of Cable (microF/KM Normal Current Rating (Amps) Short CircuitCurrent Ratingfor 1sec. Duration(K.Amps)
With AL Cond. With CU Cond.
AL CU AL CU Ground Duct Air Ground Duct Air AL CU
110500400004 4 _ 4.61 _ 5.53 0.098 0.23 28 23 23 36 30 30 0.304 0.46
110500400006 6 4.61 3.08 5.53 3.7 0.096 0.28 35 30 30 45 38 39 0.456 0.69
110500400010 10 3.08 1.83 3.7 2.2 0.091 0.34 46 39 40 60 50 52 0.76 1.15
110500400016 16 1.91 1.15 2.29 1.38 0.085 0.4 60 50 51 77 64 66 1.22 1.84
110500400025 25 1.2 0.727 1.44 0.87 0.083 0.42 76 63 70 99 81 90 1.9 2.88
110500400035 35 0.868 0.524 1.04 0.63 0.082 0.48 92 77 86 120 99 110 2.66 4.03
110500400050 50 0.641 0.387 0.769 0.464 0.082 0.49 110 95 105 145 125 135 3.8 5.75
110500400070 70 0.443 0.268 0.532 0.322 0.076 0.56 135 115 130 175 150 165 5.32 8.05
110500400095 95 0.32 0.193 0.384 0.232 0.076 0.58 165 140 155 210 175 200 7.22 10.9
110500400120 120 0.253 0.153 0.304 0.184 0.075 0.63 185 155 180 240 195 230 9.12 13.8
110500400150 150 0.206 0.124 0.247 0.1488 0.074 0.63 210 175 205 270 225 265 11.4 17.3
110500400185 185 0.164 0.0991 0.197 0.1189 0.074 0.64 235 200 240 300 255 305 14.1 21.3
110500400240 240 0.125 0.0754 0.151 0.0912 0.073 0.67 275 235 280 345 295 355 18.2 27.6
110500400300 300 0.1 0.0601 0.122 0.0733 0.073 0.68 305 260 315 385 335 400 22.8 34.5
110500400400 400 0.0778 0.047 0.0961 0.058 0.072 0.7 335 290 375 425 360 435 30.4 46
110500400500 500 0.0605 0.0366 0.0759 0.0459 0.072 0.7 370 320 425 470 390 520 38 57.5
110500400630 630 0.0469 0.0283 0.061 0.0368 0.072 0.7 405 350 480 555 470 675 47.9 72.5
PartNumber Nominal Cross Sectional Area (Sq. mm) Minimum No. of Strands in Conductor Nominal Thickness of Insulation (mm) Minimum Thickness of Inner Sheath(mm) Nominal Thickness of Outer Sheath(mm) Approx. Overall Diameter(mm) Approx. Net Wt.of Cable (kg/km)
AL CU AL CableAYY CU CableYY
110500400004 4 _ 1/7 1.0 0.3 1.8 16 290 390
110500400006 6 1 1/7 1.0 0.3 1.8 18 380 530
110500400010 10 1 6 1.0 0.3 1.8 20 530 770
110500400016 16 6 6 1.0 0.3 2.0 23 550 940
110500400025 25 6 6 1.2 0.3 2.0 26 740 1350
110500400035 35 6 6 1.2 0.3 2.0 30 925 1785
110500400050 50 6 6 1.4 0.4 2.2 34 1230 2480
110500400070 70 12 12 1.4 0.4 2.2 38 1540 3285
110500400095 95 15 15 1.6 0.4 2.4 43 2030 4385
110500400120 120 15 18 1.6 0.5 2.4 46 2385 5360
110500400150 150 15 18 1.8 0.5 2.6 51 2925 6650
110500400185 185 30 30 2.0 0.6 2.8 55 3630 8230
110500400240 240 30 34 2.2 0.6 3.0 60 4580 10530
110500400300 300 30 34 2.4 0.7 3.4 66 5480 12950
110500400400 400 53 53 2.6 0.7 3.6 73 6780 16700
110500400500 500 53 53 3.0 0.7 4.0 82 8580 20980
110500400630 630 53 53 3.4 0.7 4.0 92 10980 25980

REGD OFFICE

A/304,Sohan Tower,
Pokhran Road No. 1,
Opp. Shivsena Shakha, Khopat, Thane West 400601

SALES OFFICE

Ground Floor Office no.89,
Ashoka Shopping Centre,
L.T Road, Next to G.T Hospital, Mumbai 400001

Office

022 49742121 +91 7700080709
info@jinpower.in jinps@yahoo.com

Brands

Polycab RR Kabel Smart Node Legrand

Brands

Luker GI Cable Trays Hager L&t Switchgears

Brands

Precision Finolex Anchor Antique Switches

Quick Links

Home About Us Pricelist Contact Us

logo

Social Media

Brands

Polycab RR Kabel Smart Node Legrand Precision Finolex

Brands

Luker GI Cable Trays Hager Anchor Antique Switches L&t Switchgears

Quick Links

Home About Us Pricelist Contact Us

Contacts

Ground Floor Office no.89,
Ashoka Shopping Centre,
L.T Road, Next to G.T Hospital, Mumbai 400001

022 49742121

+91 7700080709

info@jinpower.in

jinps@yahoo.com

© Copyright 2022 Jin Power Solutions. All Rights Reserved. Powered by

Enquire Now
whatsapp
