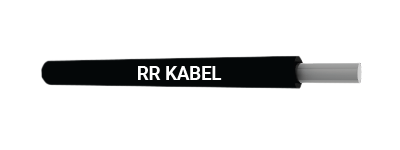

SID
Application
SiD is employed in control cabinet manufacturing, electric motor industry, lighting technology, heating equipment, air conditioning systems.
Standard
Adapted to VDE 0250 part 1 and 502.
Technical Data
Voltage Rating : UO / U - 300 / 500V
Minimum Bending Radius : Fixed installation : 6 x cable ø. One bend at end of core 3 x cable ø
Test Voltage : 2000V
Temperature Range : -50°C to +180°C (up to + 200°C for short time with adequate ventilation)
Cable Construction
Type SiD: Solid tinned copper conductor with Silicone insulated
Properties
Advantages : High ignition or flash point.
Resistant to : High molecular oils, fats from vegetables and animals, alcohols, plasticisers and diluted acids, dyes and salt dissolution, oxidation substances, tropical influences and weather, lake water, oxygen and UV.
Halogen - Free : According to IEC 60754-2.
Behavior in Fire : Flame propagation test according to EN 60332 - 1 - 2.
Cable Design Parameters
| Part Number | Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SiF-GL | 80501010180 | 0.25 | 2.4 | 2.4 | 6 | |||||
| 80501020180 | 0.5 | 2.6 | 4.5 | 9 | ||||||
| 80501030180 | 0.75 | 2.9 | 6.7 | 12 | ||||||
| 80501040180 | 1.0 | 3.0 | 9.0 | 14 | ||||||
| 80501050180 | 1.5 | 3.3 | 12.9 | 20 | ||||||
| 80501060180 | 2.5 | 3.9 | 21.5 | 31 | ||||||
| 80501070180 | 4.0 | 4.7 | 34.1 | 48 | ||||||
| 80501080180 | 6.0 | 5.7 | 51.2 | 73 | ||||||
| 80501090180 | 10.0 | 7.5 | 87.1 | 126 | ||||||
| 80501100180 | 16.0 | 8.9 | 145.1 | 199 | ||||||
| 80501110180 | 25.0 | 10.8 | 225.8 | 305 | ||||||
| 80501120180 | 35 | 12.1 | 317.9 | 415 | ||||||
| 80501130180 | 50 | 14.1 | 456.2 | 587 | ||||||
| 80601010180 | 0.2 | 1.7 | 2.0 | 4.4 | ||||||
| SiD | 80601020180 | 0.28 | 1.8 | 2.8 | 5.4 | |||||
| 80601030180 | 0.5 | 2.0 | 5.0 | 8.1 | ||||||
| 80601040180 | 0.75 | 2.1 | 7.4 | 10.6 | ||||||
| 80601050180 | 1.0 | 2.3 | 9.9 | 13.6 | ||||||
| 80601060180 | 1.5 | 2.5 | 14.9 | 18.9 | ||||||
| 80601070180 | 2.5 | 3.2 | 24.8 | 31.3 | ||||||
| 80601080180 | 4.0 | 3.9 | 39.6 | 49 | ||||||
| 80601090180 | 6.0 | 4.4 | 59.4 | 70.3 | ||||||
| SiD-GL | 80701010180 | 0.5 | 2.4 | 5.0 | 11 | |||||
| 80701020180 | 0.75 | 2.5 | 7.4 | 14 | ||||||
| 80701030180 | 1.0 | 2.7 | 9.9 | 17 | ||||||
| 80701040180 | 1.5 | 2.9 | 14.9 | 22 | ||||||
| 80701050180 | 2.5 | 3.6 | 24.8 | 35 | ||||||
| 80701060180 | 4.0 | 4.3 | 39.6 | 53 | ||||||
| 80701070180 | 6.0 | 4.8 | 59.4 | 74 | ||||||
